Description

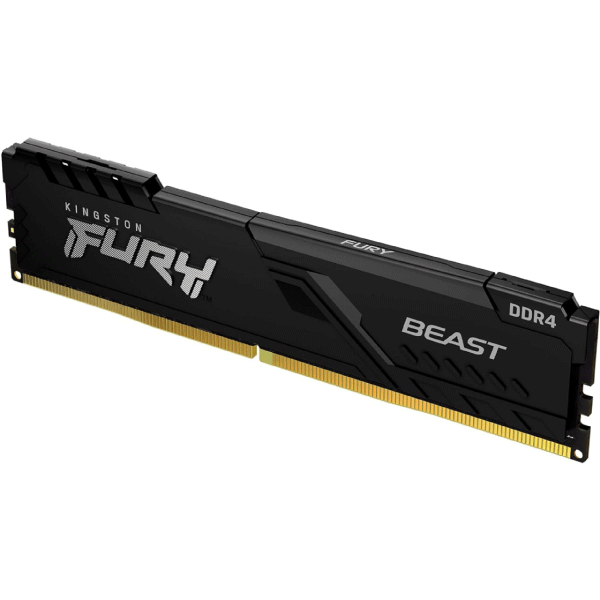

Kingston FURY KF436C18BB/16 is a 2G x 64-bit (16GB)
DDR4-3600 CL18 SDRAM (Synchronous DRAM) 1Rx8, memory
module, based on eight 2G x 8-bit FBGA components per module.
Each module kit supports Intel® Extreme Memory Profiles (Intel®
XMP) 2.0. Each module has been tested to run at DDR4-3600 at a
low latency timing of 18-22-22 at 1.35V. The SPDs are programmed
to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V.
Each 288-pin DIMM uses gold contact fingers
CL(IDD) 17 cycles
Row Cycle Time (tRCmin) 45.75ns(min.)
Refresh to Active/Refresh
Command Time (tRFCmin) 350ns(min.)
RowActive Time (tRASmin) 32ns(min.)
UL Rating 94 V – 0
Operating Temperature 0 C to +85o C
Storage Temperature -55o C to +100o C
