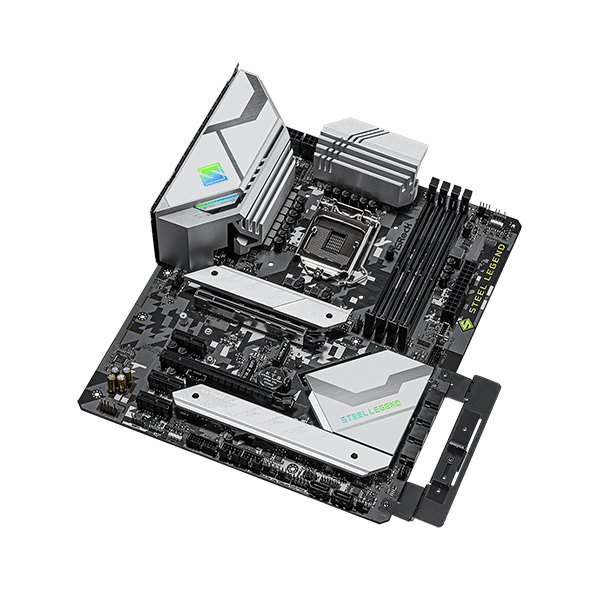

ASRock Z590 Steel Legend is an ATX motherboard for 10th and 11th Gen Intel Core processors on the LGA1200 socket, built with a 14-phase Dr.MOS power design. It offers PCIe 4.0 graphics, three M.2 slots (one PCIe Gen4 x4), six SATA3 ports, 2.5 Gigabit LAN, an M.2 Key-E slot for an optional Wi-Fi card and Realtek ALC897 7.1-channel audio with Nahimic.
| Brand | |
|---|---|
| Form Factor | ATX |
| Socket | Intel LGA1200 |
| Chipset | Intel Z590 |
| Memory Support | 4x DDR4 DIMM, dual-channel, up to 128 GB, DDR4-4800 (OC) |
| PCIe | 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 3x PCIe 3.0 x1 |
| Storage | 3x M.2 (1x PCIe Gen4 x4 + 2x PCIe Gen3 x4 / SATA) + 6x SATA3 |
| LAN | Dragon 2.5 Gigabit LAN |
| Wireless | M.2 Key-E slot for Wi-Fi (module not included) |
| USB | Front USB-C 3.2 Gen2x2 (20Gb/s); rear USB 3.2 Gen2 Type-A+C (10Gb/s); 6x USB 3.2 Gen1; 6x USB 2.0 |
| Audio | Realtek ALC897 7.1-channel HD Audio (Nahimic) |
| Video Outputs | HDMI + DisplayPort |
