Description
Model

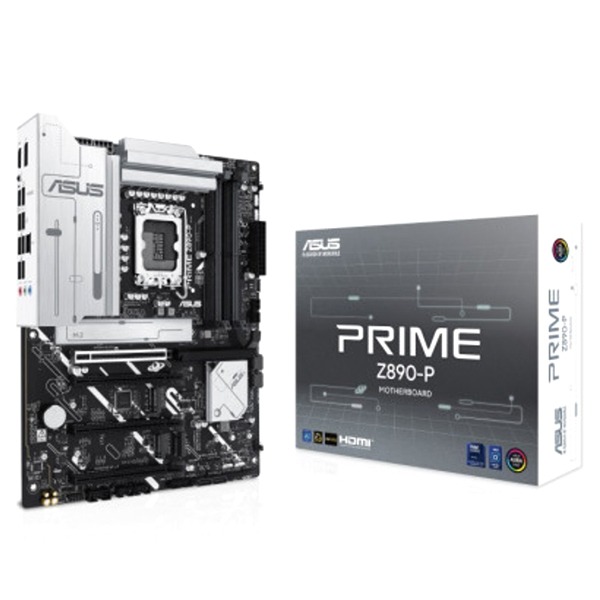

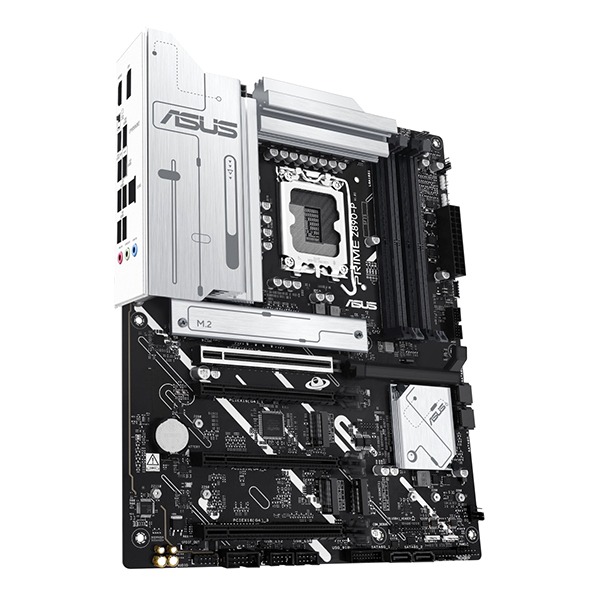

PRIME Z890-P
CPU Support
-
Supports Intel® Core™ Ultra Processors (Series 2) on LGA1851 socket
-
Compatible with:
-
Intel® Turbo Boost Technology 2.0
-
Intel® Turbo Boost Max Technology 3.0 (depends on CPU type)
-
Chipset
-
Intel® Z890 Chipset
Memory
-
4 × DIMM slots, up to 256GB DDR5
-
Supports up to 8666+ MT/s (OC)
-
Non-ECC, Un-buffered DIMMs / Clocked Unbuffered DIMM (CUDIMM)
-
Dual-channel memory architecture
-
Supports:
-
Intel® XMP (Extreme Memory Profile)
-
ASUS Enhanced Memory Profile III (AEMP III)
-
-
On-Die ECC supported (DDR5 only)
Graphics Outputs
-
1 × DisplayPort 1.4 (max. 4K @ 60Hz)
-
1 × HDMI™ 2.1 (max. 4K @ 60Hz)
-
1 × USB 20Gbps Type-C® with DisplayPort Alt Mode (max. 4K @ 120Hz)*
*Graphics output support depends on CPU.
Expansion Slots
With Intel® Core™ Ultra Processors (Series 2):
-
1 × PCIe 5.0 x16
From Z890 Chipset:
-
2 × PCIe 4.0 x16 (x4 mode)
-
1 × PCIe 4.0 x16 (x1 mode)
Storage
-
4 × M.2 slots
-
M.2_1: PCIe 5.0 x4 (2280/22110, from CPU)
-
M.2_2: PCIe 4.0 x4 (2280, from CPU)
-
M.2_3: PCIe 4.0 x4 (2280/22110, from chipset)
-
M.2_4: PCIe 4.0 x4 & SATA (2242/2260/2280, from chipset)
-
-
4 × SATA 6Gb/s ports
-
Supports Intel® Rapid Storage Technology (RAID 0/1/5/10)
Networking
-
1 × Realtek 2.5Gb Ethernet
-
ASUS LANGuard protection
USB Ports
Rear I/O (Total: 8 ports):
-
1 × USB 20Gbps (Type-C® with DP Alt mode)
-
1 × USB 10Gbps (Type-A)
-
2 × USB 5Gbps (Type-A)
-
4 × USB 2.0 (Type-A)*
*Some ports share bandwidth.
Front Panel (Total: 9 ports):
-
1 × USB 10Gbps (Type-C® header)
-
2 × USB 5Gbps headers (up to 4 ports)
-
2 × USB 2.0 headers (up to 4 ports)
Audio
-
Realtek 7.1 Surround Sound HD Audio CODEC
-
Supports jack detection, multi-streaming, front panel jack-retasking
-
Supports up to 24-bit / 192 kHz playback
-
Premium audio capacitors & audio shielding
-
Front panel HD audio module required for 7.1 output.

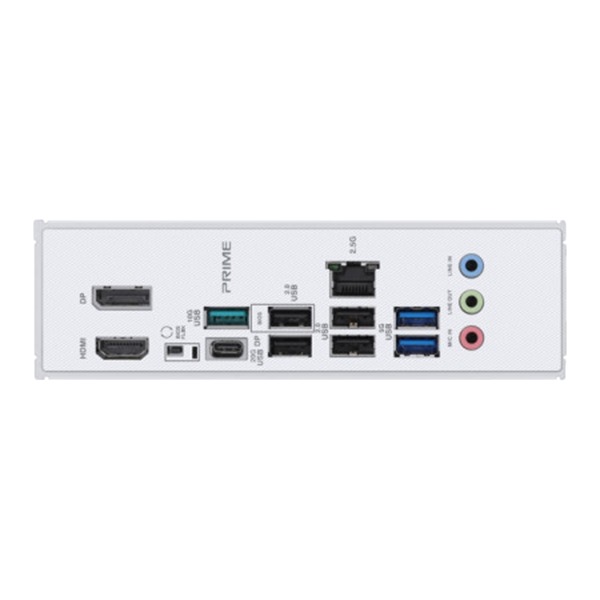

Rear I/O Ports
-
1 × USB 20Gbps (Type-C® with DP Alt mode)
-
1 × USB 10Gbps (Type-A)
-
2 × USB 5Gbps (Type-A)
-
4 × USB 2.0 (Type-A)
-
1 × DisplayPort
-
1 × HDMI™ port
-
1 × 2.5Gb Ethernet (RJ-45)
-
3 × Audio jacks
-
1 × BIOS FlashBack™ button
Internal Connectors
Cooling:
-
1 × CPU fan (4-pin)
-
1 × CPU OPT fan (4-pin)
-
1 × AIO pump (4-pin)
-
4 × Chassis fan headers (4-pin)
Power:
-
1 × 24-pin ATX power
-
2 × 8-pin +12V CPU power
Storage:
-
4 × M.2 slots
-
4 × SATA 6Gb/s ports
USB:
-
1 × USB 10Gbps (Type-C® header)
-
2 × USB 5Gbps headers
-
2 × USB 2.0 headers
Miscellaneous:
-
3 × Addressable Gen2 RGB headers
-
1 × Aura RGB header
-
1 × Clear CMOS header
-
1 × COM port header
-
1 × Front panel audio header
-
1 × S/PDIF out header
-
1 × SPI TPM header (14-1 pin)
-
1 × System panel header (10-1 pin)
-
1 × Thunderbolt™ (USB4®) header
Special Features
ASUS 5X Protection III:
-
DIGI+ VRM (with DrMOS)
-
LANGuard
-
Overvoltage protection
-
SafeSlot
-
Stainless-steel back I/O
ASUS Q-Design:
-
M.2 Q-Latch
-
PCIe Q-Release
-
Q-DIMM
-
Q-LED Core
-
Q-Slot
-
Q-Dashboard
Thermal Design:
-
VRM and M.2 heatsinks
EZ DIY Tools:
-
Pre-mounted I/O shield
-
BIOS FlashBack™ button & LED
-
ProCool connectors
Aura Sync RGB:
-
Aura RGB + Addressable Gen2 headers
Bundled Software
-
Armoury Crate
-
Aura Sync / Creator
-
Fan Xpert 4 (with AI Cooling II)
-
Power Saving
-
-
ASUS DriverHub
-
ASUS CPU-Z
-
TurboV Core
-
Norton 360 Deluxe (60-day trial)
-
WinRAR (40-day trial)
BIOS
-
256Mb (128+128Mb) UEFI AMI BIOS
-
EZ Mode, CrashFree BIOS 3, EZ Flash, MyHotkey
-
NPU Boost (Intel K-series CPUs only)
Manageability
-
Wake-on-LAN (PME), PXE
Accessories
-
2 × SATA 6Gb/s cables
-
1 × M.2 rubber package
-
2 × M.2 screw packages
-
1 × Quick Start Guide
Operating System
-
Windows 11 (22H2 or later)
-
Windows 10 64-bit (21H2 or later)
Form Factor
-
ATX
-
30.5 cm × 24.4 cm (12″ × 9.6″)
