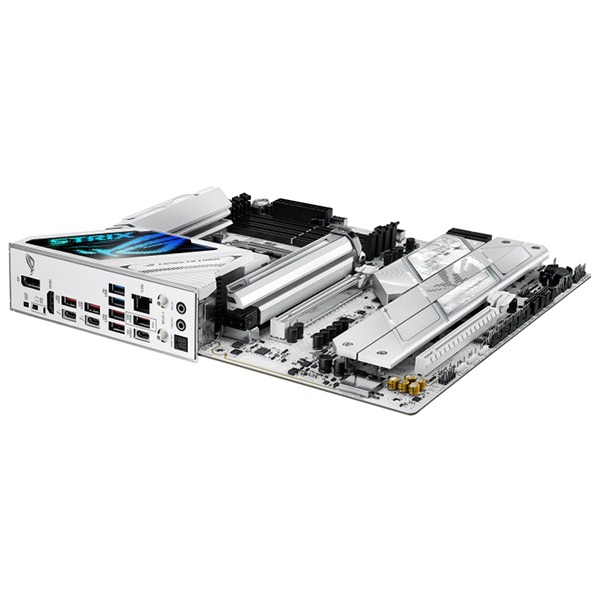

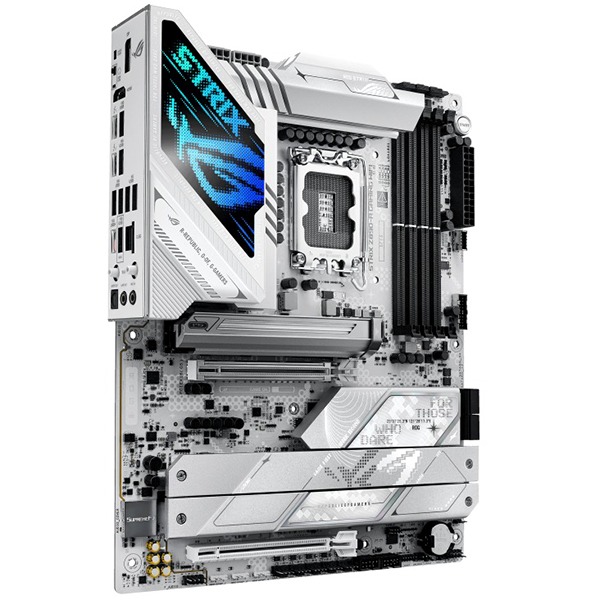

ASUS ROG Strix Z890-A Gaming WiFi ATX motherboard, LGA1851 Soket, DDR5 Up to 9066 MT/s, PCIe 5.0, Wi-Fi 7, 5x M.2 Slots, Dual Thunderbolt 4, AI Overclocking
ASUS ROG Strix Z890-A Gaming WiFi ATX motherboard, LGA1851 Soket, DDR5 Up to 9066 MT/s, PCIe 5.0, Wi-Fi 7, 5x M.2 Slots, Dual Thunderbolt 4, AI Overclocking
ASUS ROG Strix Z890-A Gaming WiFi ATX motherboard, LGA1851 Soket, DDR5 Up to 9066 MT/s, PCIe 5.0, Wi-Fi 7, 5x M.2 Slots, Dual Thunderbolt 4, AI Overclocking
ASUS · SKU 90MB1I90-M0EAY0

Asus ROG Strix Z890-A Gaming WiFi ATX motherboard, LGA1851 Soket, DDR5 Up to 9066 MT/s, PCIe 5.0, Wi-Fi 7, 5x M.2 Slots, Dual Thunderbolt 4, AI Overclocking

Out of stock
0.00 $ +VAT
Asus
Same-day delivery
In Beirut · $5 flat
Authorized warranty
Direct from brands
AI-powered search
Finds it even when you can't
Humans on WhatsApp
Mon–Sat 9 AM – 7 PM
  • Brand Asus

Description

Model

ROG STRIX Z890-A GAMING WIFI

CPU

  • Supports Intel® Core™ Ultra Processors (Series 2)

  • Compatible with Intel® Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0*

Support for Intel® Turbo Boost Max Technology 3.0 depends on CPU model.

Chipset

  • Intel® Z890 Chipset

Memory

  • 4 x DIMM slots, up to 256GB DDR5

  • Memory speeds up to 9066+ MT/s (OC)

  • Supports:

    • Non-ECC, Un-buffered CUDIMM

    • Dual Channel Architecture

    • Intel® XMP

    • ASUS Enhanced Memory Profile III (AEMP III)

    • DIMM Flex & DIMM FIT

*Actual support depends on CPU and memory configuration.
*DDR5 with On-Die ECC supported (Non-ECC, un-buffered modules).

Graphics

  • 1 x DisplayPort 1.4 (up to 8K@60Hz)

  • 1 x HDMI™ 2.1 port (up to 4K@60Hz)

  • 2 x Thunderbolt™ 4 (USB-C) supporting DisplayPort & Thunderbolt video output

*Thunderbolt™ 4 mode: up to 8K@60Hz x1 (DSC) or 4K@60Hz x2
*DP Alt mode: supports UHBR20
*Monitor must be connected to the HDMI port or a discrete GPU during OS installation.

Expansion Slots

For Intel® Core™ Ultra Processors:

  • 1 x PCIe 5.0 x16 slot

From Intel® Z890 Chipset:

  • 1 x PCIe 4.0 x16 slot (operates at x4)

Storage

  • 5 x M.2 slots + 4 x SATA 6Gb/s ports

From CPU:

  • M.2_1: PCIe 5.0 x4, 2242–22110

  • M.2_2: PCIe 4.0 x4, 2280

From Chipset:

  • M.2_3: PCIe 4.0 x4, 2280

  • M.2_4: PCIe 4.0 x4, 2280/22110

  • M.2_5: PCIe 4.0 x4 & SATA, 2242–2280

  • 4 x SATA 6Gb/s

Supports Intel® Rapid Storage Technology with RAID 0/1/5/10.

Networking

  • 1 x Intel® 2.5Gb Ethernet with ASUS LANGuard

Wireless & Bluetooth

  • Wi-Fi 7 (802.11be, 2×2) — Supports 2.4GHz / 5GHz / 6GHz

  • Bluetooth® v5.4

*Wi-Fi 7 requires Windows 11 24H2 or later.
Wi-Fi 6E supported on older Windows 11 versions; Windows 10 supports only Wi-Fi 6.

USB Ports

Rear I/O (10 Ports):

  • 2 x Thunderbolt™ 4 (USB-C)

  • 6 x USB 10Gbps (5 x Type-A, 1 x USB-C with up to 30W PD/PPS Fast Charge)

  • 2 x USB 5Gbps (Type-A)

Front I/O (7 Ports):

  • 1 x USB 20Gbps (USB-C header)

  • 1 x USB 5Gbps header (supports 2 ports)

  • 2 x USB 2.0 headers (support 4 ports)

Audio

  • ROG SupremeFX 7.1 Surround (ALC4080 Codec)

    • 120 dB SNR playback, 110 dB SNR recording

    • Up to 32-bit / 384kHz playback

    • Rear Optical S/PDIF Out

    • Savitech SV3H712 AMP

    • Premium capacitors & shielding

*Requires HD front panel audio module for full 7.1-channel support.
Spatial audio via front panel jack or USB audio device only.

Rear I/O Ports

  • 2 x Thunderbolt™ 4 (USB-C)

  • 6 x USB 10Gbps (5 x Type-A, 1 x USB-C with 30W Fast Charge)

  • 2 x USB 5Gbps (Type-A)

  • 1 x DisplayPort

  • 1 x HDMI™

  • 1 x Wi-Fi Module

  • 1 x 2.5Gb LAN port

  • 2 x Audio jacks

  • 1 x Optical S/PDIF out

  • 1 x BIOS FlashBack™ button

  • 1 x Clear CMOS button

Internal I/O Connectors

Cooling:

  • 1 x CPU Fan (4-pin)

  • 1 x CPU OPT Fan (4-pin)

  • 1 x AIO Pump (4-pin)

  • 5 x Chassis Fan headers (4-pin)

Power:

  • 1 x 24-pin ATX

  • 2 x 8-pin CPU Power

USB:

  • 1 x USB 20Gbps (USB-C)

  • 1 x USB 5Gbps header (2 ports)

  • 2 x USB 2.0 headers (4 ports)

Other:

  • 5 x M.2 slots

  • 4 x SATA 6Gb/s

  • 3 x Addressable Gen 2 headers

  • Front Panel Audio, System Panel Header

  • Thermal Sensor header

  • Thunderbolt™ header

  • Start Button

  • Chassis Intrusion header

  • CPU Overvoltage jumper

Special Features

Power Design:

  • Extreme Engine Digi+

  • 5K Black Metallic Capacitors

Q-Design Features:

  • M.2 Q-Latch / Q-Release / Q-Slide

  • PCIe Slot Q-Release Slim

  • Q-Antenna

  • Q-DIMM

  • Q-LED diagnostic indicators

  • SafeSlot / SafeDIMM

  • Pre-mounted I/O shield

  • BIOS FlashBack™ & Clear CMOS buttons

Thermal:

  • M.2 heatsink & backplate

Software

ROG & ASUS Exclusive:

  • Armoury Crate

  • Aura Creator & Aura Sync

  • Fan Xpert 4 (AI Cooling II)

  • GameFirst

  • Power Saving

  • TurboV Core

  • ASUS AI Advisor

  • ASUS DriverHub

  • ASUS GlideX

  • USB Wattage Watcher

  • ROG CPU-Z

  • Dolby Atmos

Third-Party:

  • AIDA64 Extreme (60-day trial)

  • HWiNFO

  • Adobe Creative Cloud (30-day trial)

  • Norton 360 for Gamers (60-day trial)

  • WinRAR (40-day trial)

BIOS

  • 256 Mb UEFI AMI BIOS

  • Features:

    • ASUS CrashFree BIOS 3

    • ASUS EZ Flash

    • UEFI EZ Mode

    • MyHotkey

    • FlexKey

    • AI Overclocking Guide

    • NPU Boost

Accessories

  • 2 x SATA 6Gb/s cables

  • 1 x Thermal pad for M.2 22110

  • 1 x ASUS Wi-Fi Q-Antenna

  • 1 x M.2 Q-Latch pack

  • 1 x M.2 rubber pack

  • 1 x ROG keychain

  • 1 x ROG Strix sticker set

  • 1 x Quick Start Guide

  • 1 x Cable ties set

Operating System

  • Compatible with Windows 11 (22H2 or later)

Form Factor

  • ATX (30.5 cm x 24.4 cm / 12″ x 9.6″)

Additional information

Brand

Shipping & returns

Same-day delivery in Beirut ($5 flat). 1–3 business days for the rest of Lebanon. 14-day return on unopened items.
