Description
Model

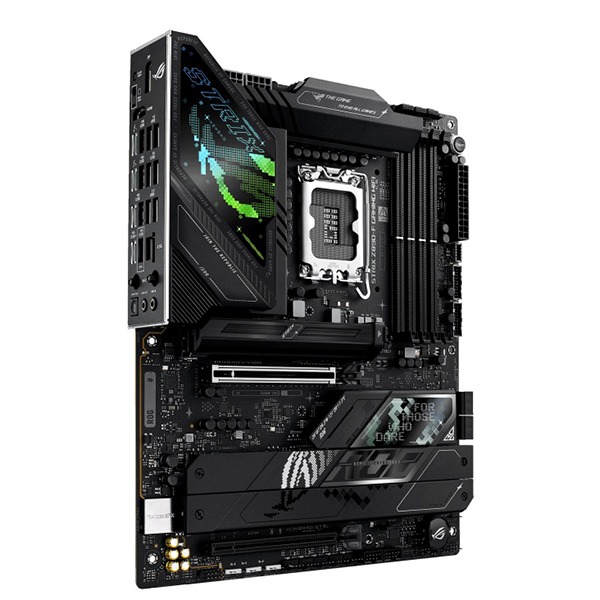

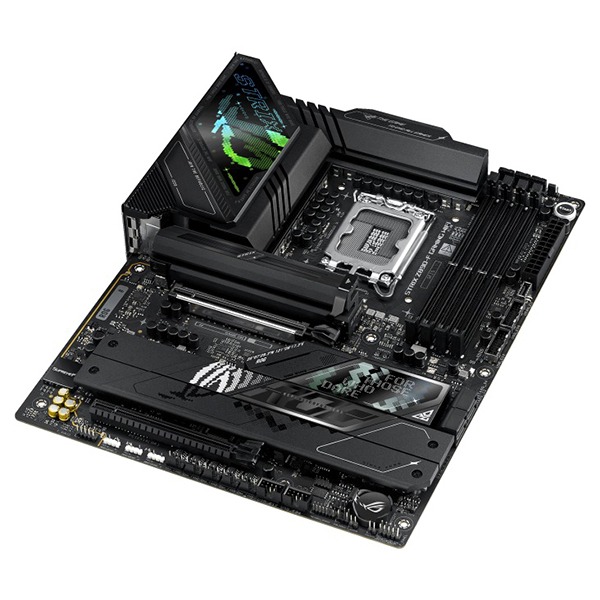

ROG STRIX Z890-F GAMING WIFI
CPU Support
-
Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2)
-
Supports:
-
Intel® Turbo Boost Technology 2.0
-
Intel® Turbo Boost Max Technology 3.0 (depending on CPU)
-
Chipset
-
Intel® Z890 Chipset
Memory
-
4 x DDR5 DIMM slots, up to 256GB
-
Up to 8600+ MT/s (OC)
-
Supports:
-
Non-ECC, Un-buffered DIMMs (CUDIMM)
-
Dual channel architecture
-
Intel® Extreme Memory Profile (XMP)
-
DIMM Flex, DIMM Fit
-
ASUS Enhanced Memory Profile III (AEMP III)
-
On-Die ECC (on supported DDR5 modules)
-
Graphics
-
1 x DisplayPort 1.4 (up to 8K @ 60Hz)
-
1 x HDMI 2.1 (up to 4K @ 60Hz)
-
2 x Thunderbolt™ 4 ports (support DisplayPort and Thunderbolt video output)
-
Supports up to:
-
8K @ 60Hz x1 with DSC
-
4K @ 60Hz x2
-
Max total bandwidth: 23.8Gbps
-
-
-
Note: Display output depends on CPU. Use HDMI or a discrete GPU when installing OS.
Expansion Slots
From CPU:
-
1 x PCIe 5.0 x16 slot (x16 or x8/x4/x4 modes)
From Chipset:
-
1 x PCIe 4.0 x16 slot (x4 mode)
Storage
-
5 x M.2 slots:
-
M.2_1: 2242–22110 (PCIe 5.0 x4, from CPU)
-
M.2_2: 2280 (PCIe 4.0 x4)
-
M.2_3: 2280 (PCIe 4.0 x4)
-
M.2_4: 2280/22110 (PCIe 4.0 x4)
-
M.2_5: 2242–2280 (PCIe 4.0 x4 & SATA)
-
-
4 x SATA 6Gb/s ports
-
Supports Intel® RST RAID (RAID 0/1/5 on PCIe and SATA, RAID 0/1/5 on CPU M.2)
Ethernet
-
1 x Intel® 2.5Gb LAN with ASUS LANGuard
Wireless & Bluetooth
-
Wi-Fi 7 (802.11be, 2×2)
-
2.4/5/6GHz bands, up to 5.8Gbps
-
Supports 320MHz bandwidth
-
-
Bluetooth® 5.4
-
Note:
-
Windows 11 24H2 or later required for full Wi-Fi 7 functionality
-
Windows 10 only supports Wi-Fi 6
-
USB Ports
Rear I/O (14 ports total):
-
2 x Thunderbolt™ 4 (USB Type-C®)
-
6 x USB 10Gbps (4 x Type-A, 2 x Type-C® – one supports 30W PD fast charge)
-
4 x USB 5Gbps (Type-A)
-
2 x USB 2.0 (Type-A)
Internal (up to 9 ports):
-
1 x USB 20Gbps (Type-C®)
-
2 x USB 5Gbps headers (up to 4 ports)
-
2 x USB 2.0 headers (up to 4 ports)
Audio
-
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
-
Features:
-
120 dB SNR stereo playback, 110 dB SNR recording
-
Up to 32-bit/384 kHz playback (front panel)
-
Jack detection, MIC retasking
-
Rear S/PDIF out, gold-plated jacks
-
Premium capacitors, audio shielding, Savitech AMP
-
-
Note: 7.1 surround requires HD audio front panel; rear Line Out does not support spatial audio.

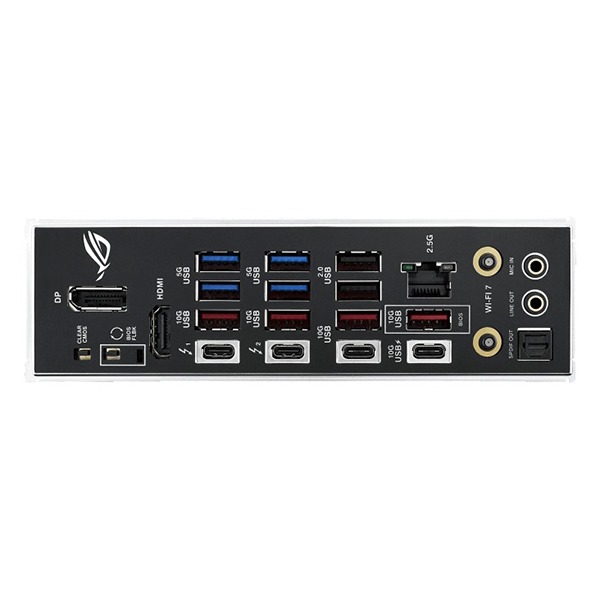

Back Panel I/O
-
2 x Thunderbolt™ 4 (USB Type-C®)
-
6 x USB 10Gbps (4 x Type-A, 2 x Type-C® incl. 30W fast charge)
-
4 x USB 5Gbps (Type-A)
-
2 x USB 2.0 (Type-A)
-
1 x DisplayPort
-
1 x HDMI
-
1 x Wi-Fi module
-
1 x Intel® 2.5Gb Ethernet
-
2 x Gold-plated audio jacks
-
1 x Optical S/PDIF out
-
1 x BIOS FlashBack™ button
-
1 x Clear CMOS button
Internal I/O Connectors
Cooling:
-
1 x CPU Fan (4-pin)
-
1 x CPU OPT Fan (4-pin)
-
1 x AIO Pump (4-pin)
-
5 x Chassis Fan headers (4-pin)
Power:
-
1 x 24-pin ATX power
-
2 x 8-pin +12V CPU power
USB:
-
1 x USB 20Gbps (Type-C®)
-
2 x USB 5Gbps headers (4 ports)
-
2 x USB 2.0 headers (4 ports)
Storage:
-
5 x M.2 (Key M)
-
4 x SATA 6Gb/s
Miscellaneous:
-
3 x Addressable Gen 2 RGB headers
-
1 x Thunderbolt™ (USB4®) header
-
1 x Front Audio (F_AUDIO)
-
1 x Chassis Intrusion
-
1 x CPU Over Voltage jumper
-
1 x Thermal Sensor header
-
1 x Front Panel header
-
1 x Start button
Special Features
-
Extreme Engine Digi+ with 5K Black Metallic Capacitors
-
ASUS Q-Design:
-
Q-Code, Q-DIMM, Q-LED, Q-Antenna, Q-Slot
-
M.2 Q-Latch, Q-Release, Q-Slide
-
PCIe Slot Q-Release Slim with SafeSlot
-
-
ASUS Thermal Design:
-
VRM heatsinks, M.2 heatsinks & backplates
-
-
ASUS EZ DIY:
-
Pre-mounted I/O shield
-
BIOS FlashBack™, Clear CMOS
-
SafeDIMM, SafeSlot, ProCool II
-
-
Aura Sync RGB:
-
Addressable Gen2 RGB headers
-
Software Features
ROG Exclusive:
-
ROG CPU-Z, Dolby Atmos
ASUS Software:
-
Armoury Crate (Fan Xpert 4, Aura Sync, Power Saving, Aura Creator)
-
HWiNFO, GameFirst, AIDA64 Extreme (60-day trial)
-
ASUS Driver Hub, GlideX, TurboV Core, USB Wattage Watcher
-
Adobe Creative Cloud (Trial), WinRAR (40-day trial), Norton 360 for Gamers (60-day trial)
UEFI BIOS
-
256Mb Flash ROM, UEFI AMI BIOS
-
Features:
-
ASUS EZ Flash, CrashFree BIOS 3, EZ Mode, MyHotkey
-
AI Overclocking Guide, FlexKey, BIOS FlashBack™
-
Manageability
-
WOL by PME, PXE boot
Accessories
-
2 x SATA 6Gb/s cables
-
1 x ASUS Wi-Fi Q-Antenna
-
1 x M.2 thermal pad (22110)
-
1 x M.2 Q-Latch pack
-
1 x ROG keychain
-
1 x ROG Strix sticker set
-
3 x M.2 rubber packs
-
1 x Cable ties pack
-
1 x Quick Start Guide
Operating System
-
Supports Windows® 11 (22H2 or later)
Form Factor
-
ATX (12 x 9.6 inches / 30.5 x 24.4 cm)
