Description
CPU Support
-
Supports Intel® Core™ Ultra Processors (Series 2) with LGA1851 socket
-
Compatible with:
-
Intel® Turbo Boost Technology 2.0
-
Intel® Turbo Boost Max Technology 3.0 (depending on CPU)
-
Chipset
-
Intel® B860 Chipset
Memory
-
4 x DDR5 DIMM slots, maximum capacity 256GB
-
Supports up to 8666+ MT/s (OC) memory speeds
-
Supports Non-ECC, un-buffered Clocked Unbuffered DIMM (CUDIMM) modules
-
Dual-channel memory architecture
-
Memory overclocking and profile support:
-
Intel® Extreme Memory Profile (XMP)
-
ASUS Enhanced Memory Profile III (AEMP III)
-
-
On-Die ECC supported by DDR5 memory (Non-ECC modules only)
Integrated Graphics
-
1 x DisplayPort 1.4 (up to 4K @ 60Hz)
-
1 x HDMI 2.1 (up to 4K @ 60Hz)
-
1 x USB 20Gbps Type-C® (supports DisplayPort 1.4 Alt Mode, up to 4K @ 60Hz)
-
Note: Display capabilities depend on CPU used. For installation, connect display to HDMI or a discrete GPU.
Expansion Slots
-
1 x PCIe 5.0 x16 slot (from CPU)
-
1 x PCIe 4.0 x16 slot (supports x4 mode, chipset controlled)
-
1 x PCIe 4.0 x1 slot
-
Note: PCIEX16(G4) shares bandwidth with PCIEX1(G4). If PCIEX1 is used, PCIEX16(G4) runs at x2.
Storage
-
3 x M.2 slots:
-
M.2_1: PCIe 5.0 x4 (from CPU), supports 2280
-
M.2_2: PCIe 4.0 x4 (chipset), supports 2280/22110
-
M.2_3: PCIe 4.0 x4 (chipset), supports 2242/2260/2280
-
-
4 x SATA 6Gb/s ports
-
Supports Intel® Rapid Storage Technology (RAID 0/1/5/10)
Ethernet & Wireless
-
Realtek 2.5Gb Ethernet
-
Wi-Fi 7 (802.11be), dual-band (2.4/5/6GHz), 2×2
-
Bluetooth® v5.4
-
Wi-Fi 7 full support requires Windows 11 version 24H2 or later
USB Ports
Rear I/O (8 ports)
-
1 x USB 20Gbps (Type-C® with DP Alt Mode)
-
2 x USB 10Gbps (Type-A)
-
3 x USB 5Gbps (Type-A)
-
2 x USB 2.0 (Type-A)
Front I/O (via headers)
-
1 x USB 10Gbps (Type-C®)
-
1 x USB 5Gbps header (supports 2 ports)
-
1 x USB 2.0 header (supports 2 ports)
Audio
-
Realtek 7.1 Surround Sound High Definition Audio CODEC
-
Jack-detection, multi-streaming, and front panel retasking
-
Playback up to 24-bit/192 kHz
-
Rear optical S/PDIF out port
-
Premium capacitors, dedicated PCB layers, and shielding
-
-
Note: 32-bit/192 kHz not supported in 7.1 mode due to HDA limitations

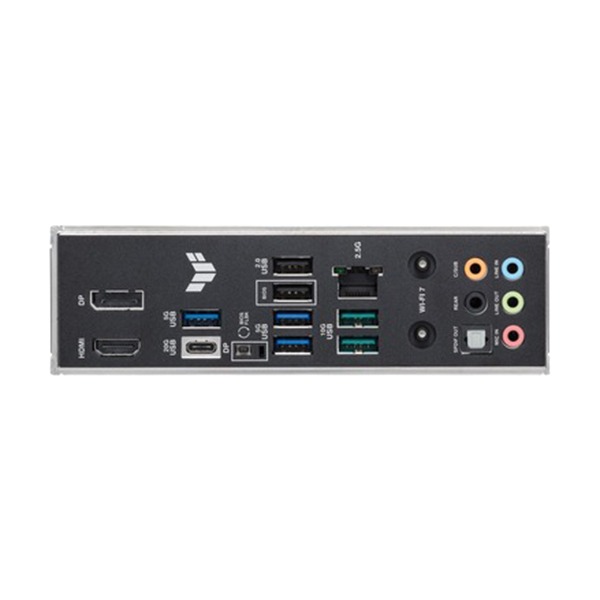

Back Panel I/O
-
1 x USB 20Gbps (Type-C®)
-
2 x USB 10Gbps (Type-A)
-
3 x USB 5Gbps (Type-A)
-
2 x USB 2.0 (Type-A)
-
1 x HDMI port
-
1 x DisplayPort
-
1 x Realtek 2.5Gb Ethernet
-
1 x Optical S/PDIF out
-
5 x Audio jacks
-
1 x BIOS FlashBack™ button
-
1 x Wi-Fi module
Internal Connectors
-
CPU and cooling:
-
1 x 4-pin CPU Fan
-
1 x 4-pin CPU OPT Fan
-
1 x 4-pin AIO Pump
-
4 x 4-pin Chassis Fan headers
-
-
Power:
-
1 x 24-pin ATX
-
2 x 8-pin +12V CPU
-
-
USB:
-
1 x USB 10Gbps Type-C® header
-
1 x USB 5Gbps header (2 ports)
-
1 x USB 2.0 header (2 ports)
-
-
Storage:
-
3 x M.2 slots
-
4 x SATA 6Gb/s ports
-
-
Miscellaneous:
-
3 x Addressable Gen 2 RGB headers
-
1 x Clear CMOS header
-
1 x Thunderbolt (USB4®) header
-
1 x Chassis Intrusion header
-
1 x COM port header
-
1 x Front Panel Audio (F_AUDIO)
-
1 x 10-1 pin Front System Panel
-
Special Features
-
ASUS TUF Protection: DIGI+ VRM, ESD Guards, TUF LANGuard, SafeSlot, Stainless Steel Back I/O
-
Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-DIMM, Q-LED, Q-Slot
-
Thermal Design: M.2 and VRM heatsinks
-
EZ DIY: BIOS FlashBack™, pre-mounted I/O shield, CPU socket lever protector, SafeDIMM
-
Aura Sync RGB: Addressable Gen 2 headers
Software Features
-
Armoury Crate (Aura Sync, Fan Xpert 4, Aura Creator, Power Saving)
-
ASUS DriverHub, ASUS GlideX
-
TUF Gaming CPU-Z
-
DTS Audio Processing
-
Norton 360 for Gamers (60-day trial)
-
WinRAR (40-day trial)
BIOS
-
2 x 128Mb UEFI AMI BIOS
-
ASUS EZ Flash, CrashFree BIOS 3, MyHotkey
Operating System
-
Supports Windows 11 (version 22H2 and later)
Form Factor
-
ATX: 12 x 9.6 inches (30.5 x 24.4 cm)
