Description

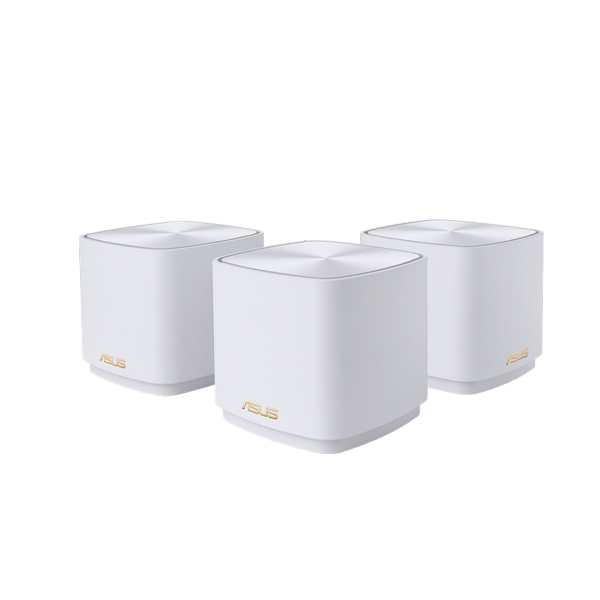

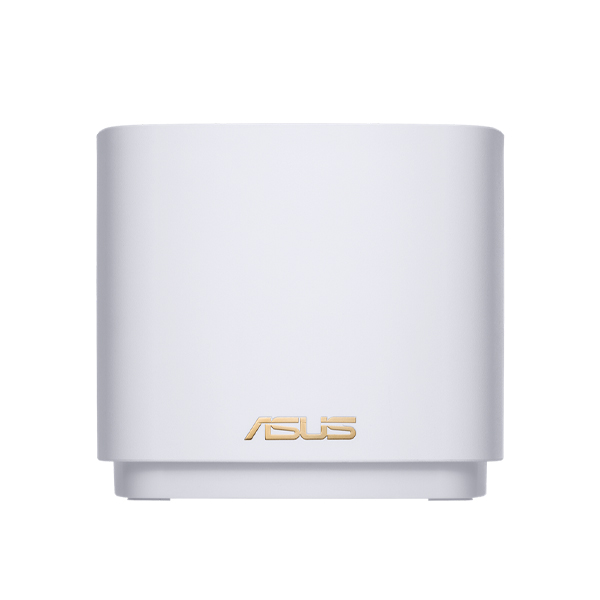

Model: ASUS ZenWiFi AX Mini (XD4)
Model Name:
XD4 (B-1-PK)
XD4 (W-1-PK)
XD4 (B-3-PK)
XD4 (B-2-PK)
XD4 (W-2-PK)
XD4 (W-3-PK)
XD4 (B-3-PK)
XD4 (B-2-PK)
XD4 (W-2-PK)
XD4 (W-3-PK)
Network Standard:
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment: AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps
WiFi Data Rate:
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps
Antenna: Internal dual-band antenna x 2
Transmit / Receive:
MIMO technology
2.4GHz 2×2
5GHz 2×2
2.4GHz 2×2
5GHz 2×2
Memory: 256 MB Flash, 256 MB RAM
Boosts Speed: MIMO technology
Operating Frequency: 2.4 G Hz / 5 GHz

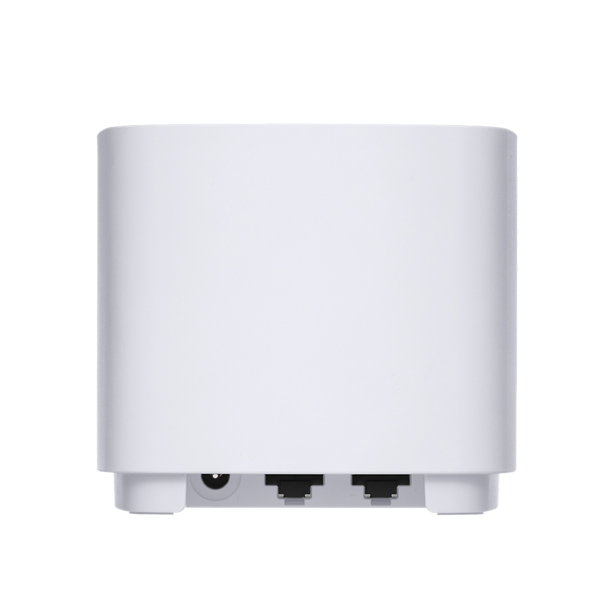

I/O Ports: RJ45 for Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x1
Buttons: WPS Button, Reset Button
LED Indicator: Power x 1
Power Supply:
“AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.5 A current”
DC Output : 12 V with max. 1.5 A current”
Package Content:
‧Router (XD4R)
‧RJ45 Ethernet cable
‧Power adapter
‧Quick start guide
‧Warranty Card
‧Router (XD4R)
‧Node (XD4N)
‧RJ45 Ethernet cable
‧Power adapter
‧Quick start guide
‧Warranty Card
‧RJ45 Ethernet cable
‧Power adapter
‧Quick start guide
‧Warranty Card
‧Router (XD4R)
‧Node (XD4N)
‧RJ45 Ethernet cable
‧Power adapter
‧Quick start guide
‧Warranty Card
Product Weight (g): 295 g
Remark:
3-pack router*1+node*2
2-pack router*1+node*1
1-pack router*1
Content may vary in different regions and packages.
2-pack router*1+node*1
1-pack router*1
Content may vary in different regions and packages.
AiMesh:
AiMesh
• Primary AiMesh Router
• AiMesh Node
• Primary AiMesh Router
• AiMesh Node
Parental Control: “Allow you to block access to unwanted websites and apps.” Customized Internet Schedule
Router APP: APP: ASUS Router APP
Guest Network:
Support Guest Network
• Maximum Guest Network Rule : 9
Guest Network Connection Time Limit
• Maximum Guest Network Rule : 9
Guest Network Connection Time Limit
Security:
WPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support
WPS
Let’s Encrypt
SSH
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
SSH
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection:
AiProtection Classic
• Malicious Site Blocking
• Infected Device Prevention and Blocking
• Malicious Site Blocking
• Infected Device Prevention and Blocking
VPN:
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
Traffic Control:
• Bandwidth Monitor
• Bandwidth Limiter
Traditional QoS
• Maximum Traditional QoS Rule : 32
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
• Bandwidth Limiter
Traditional QoS
• Maximum Traditional QoS Rule : 32
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
WAN:
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
4G / 5G Auto Mobile Tethering
Port Forwarding
Port Triggering
DMZ
DDNS
Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
4G / 5G Auto Mobile Tethering
Port Forwarding
Port Triggering
DMZ
DDNS
Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
LAN:
DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
IGMP Snooping
IPTV
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
Wireless: UTF-8 SSID
USB application: 4G / 5G Auto Mobile Tethering
Administration:
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
Diagnosis Tools
Feedback System
System Log
