Description
Projector Specifications
Display
-
Projection System: DLP
-
Brightness: 3,600 ANSI lumens
-
Native Resolution: XGA (1024 × 768)
-
Native Aspect Ratio: 4:3
-
Supported Aspect Ratios: 16:9, 16:10 (scaled)
-
Contrast Ratio (FOFO): 20,000:1
-
Display Colors: 30-bit (1.07 billion colors)
Light Source
-
Type: High-pressure lamp
-
Lamp Life:
-
Normal: 5,000 hours
-
SmartEco: 10,000 hours
-
LampSave: 15,000 hours
-
ECO: 10,000 hours
-
Optical
-
Throw Ratio: 1.96 ~ 2.15
-
Zoom Ratio: 1.1x
-
Lens: F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
-
Projection Offset: 110% (full height)
-
Keystone Correction: Vertical ±30° (1D)
Picture Modes
-
3D
-
Bright
-
Infographic
-
Presentation
-
sRGB
-
User 1
-
User 2
Compatibility
-
Resolution Support: VGA (640 × 480) up to WUXGA_RB (1920 × 1200, Reduced Blanking)
-
Horizontal Frequency: 15 kHz ~ 102 kHz

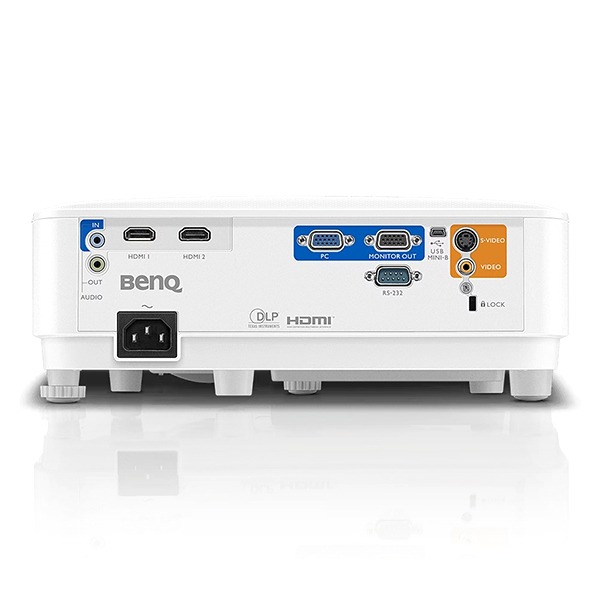

Connectivity
-
PC Input (D-sub 15 pin): 1
-
Monitor Output (D-sub 15 pin): 1
-
Composite Video (RCA): 1
-
S-Video (Mini DIN 4 pin): 1
-
HDMI Inputs: 2 (HDMI 1.4a / HDCP 1.4)
-
USB Type Mini-B: 1
-
RS232 (DB-9 pin): 1
Audio
-
Built-in Speaker: 2W mono
-
Audio Input (3.5 mm): 1
-
Audio Output (3.5 mm): 1
Environment & Power
-
Operating Temperature: 0°C ~ 40°C
-
Power Supply: AC 100–240V, 50/60 Hz
-
Typical Power Consumption (110V): ~270W
-
Acoustic Noise (Normal/Eco): 33 dB / 29 dB
Dimensions & Weight
-
Dimensions (W × H × D): 296 × 120 × 221 mm
-
Net Weight: 2.3 kg
Included Accessories
-
Remote Control with Battery (RCX014)
-
Power Cord (1.8 m, region-specific)
-
VGA (D-sub 15 pin) Cable (1.5 m)
-
User Manual CD (24L)
-
Quick Start Guide (18L)
-
Warranty Card (by region)
Optional Accessories
-
3D Glasses (DGD5)
-
Universal Ceiling Mount (CM00G3)
Notes
-
Lamp contains mercury.
-
Lamp life may vary depending on usage conditions.
-
Specifications are subject to change without notice.
-
Projection offset is calculated based on full screen height.
