Description

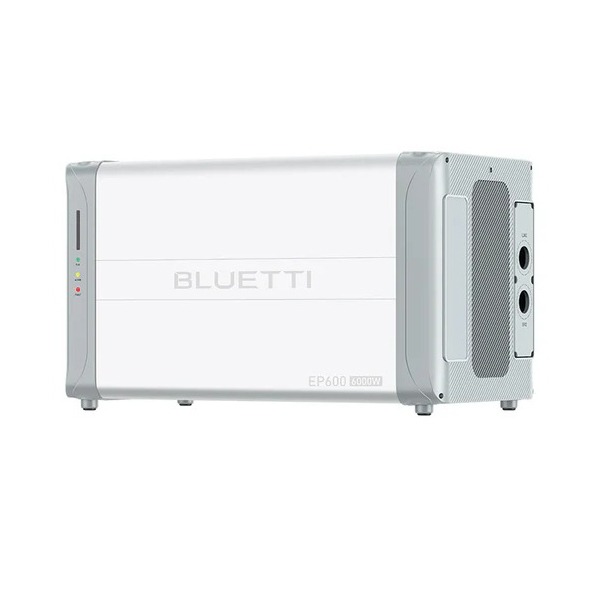

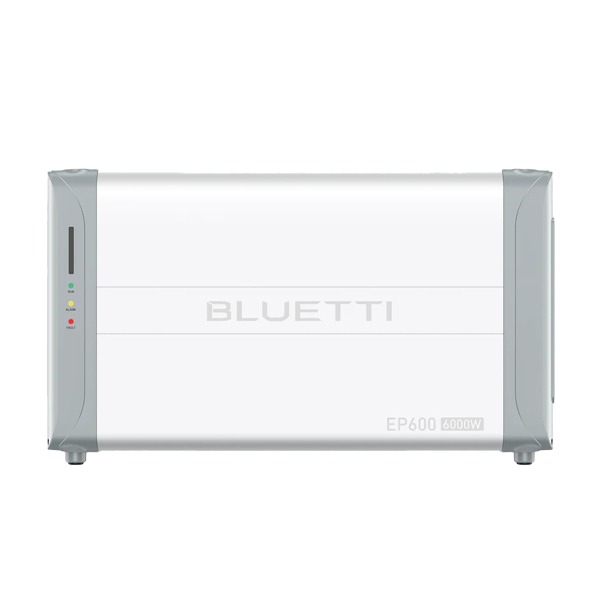

EP600 (Grid connection)
Rated output power:
6000W
Output apparent power:
6000VA
Connecting method:
L1/L2/L3/N/PE
Rated voltage:
230V/400V
Voltage range:
185V๏ฝ285VACร3
Rated output current:
8,7Aร3
Maximum output current:
9,1Aร3
Input frequency:
50Hz
Frequency range:
47,5Hz๏ฝ51,5Hz
EP600 (Off-grid)
Off-grid rated output power:
6000VA
Off-grid output voltage:
230V/400V
Output current:
8,7Aร3
Output frequency:
50Hz
Overload:
9000VA(10s),6600VA(10min)
Protection:
Output over-current protection, short-circuit protection, over-temperature protection
Certifications:
CE, CB, IP65, RCM, UKCA
EP600 (PV INPUT)
Recommended MAX PV Array Total Power :
9kWp
Recommended Max PV Array power :
4,5kWp each string
Number of MPPT channels:
2
Number of access strings per circuit:
1
Max. input voltage:
550V
MPPT voltage range/rated voltage:
150V~500V/360V
Max. input current per MPPT:
12,5A
Max. short-circuit current per MPPT:
15A
MPPT efficiency:
99,90%
Efficiency:
93,6% Peak
Protection:
Reverse connection protection, insulation resistance detection
