Cambium 56 VDC Gigabit Ethernet Surge Suppressor
Cambium 56 VDC Gigabit Ethernet Surge Suppressor
CAMBIUM · SKU C000000L033A

Cambium 56 VDC Gigabit Ethernet Surge Suppressor

In stock — ready to ship
$81.10 +VAT
CambiumGigabit Ethernet PoE surge suppressor (arrestor)1 Gbps (1000BASE-T)

In stock

Whish Pay
Pay with your Whish Wallet
Online Card Payments
All major Credit/Debit cards
Ai-Powered
Personalized picks for you
Humans on WhatsApp
Mon–Fri 9am–6pm
  • Brand Cambium
  • Device Type Gigabit Ethernet PoE surge suppressor (arrestor)
  • Throughput 1 Gbps (1000BASE-T)
  • Connector 2x RJ-45 (PoE pass-through)
  • Voltage 56 V (nominal)
  • Protections Line-to-line and line-to-ground (TVS diode)

Description

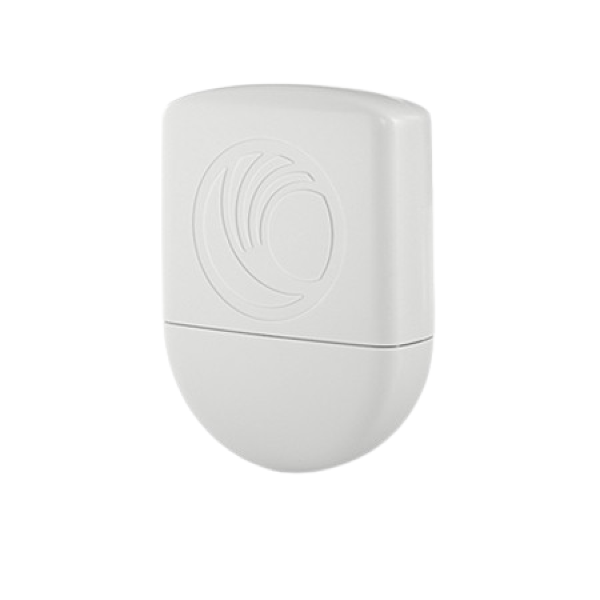

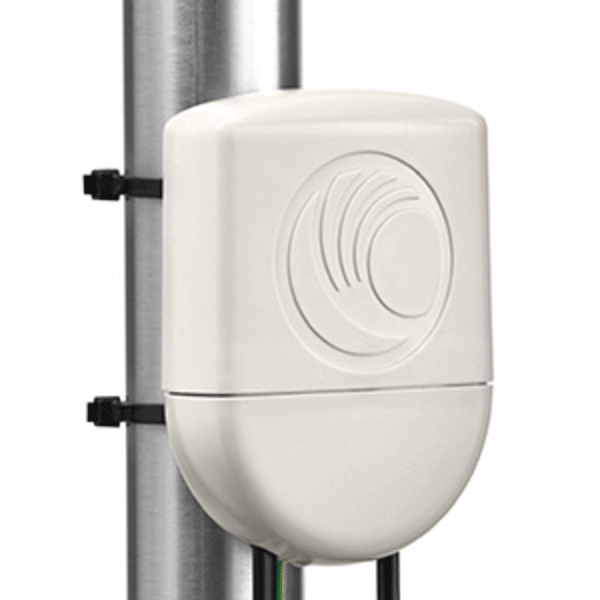

The Cambium 56 VDC Gigabit Ethernet Surge Suppressor (C000000L033A) protects PoE radios and switch ports from lightning-induced surges on the Ethernet line. Rated for Gigabit (1000BASE-T) pass-through over two RJ-45 ports at a 56 V nominal voltage, it uses TVS-diode transient suppression in both line-to-line and line-to-ground modes, with a 172 A (10/1000 us) surge current rating and a 5 ns typical response time. The IP54 raintight housing pole- or wall-mounts, survives 200 mph winds and operates from -40 to 60 °C; it meets UL/IEC 62368 edition 2.

Additional information

Brand

Device Type

Gigabit Ethernet PoE surge suppressor (arrestor)
Throughput

1 Gbps (1000BASE-T)
Connector

2x RJ-45 (PoE pass-through)
Voltage

56 V (nominal)
Protections

Line-to-line and line-to-ground (TVS diode)
Surge Current Rating

172 A (L-G, 10/1000 us)
Response Time

5 ns (typical)
Water Resistance

IP54
Mounting

Pole or wall mount
Operating Temperature

-40 to 60 C
Dimensions

118 x 87.5 x 46.5 mm
Weight

156 g
