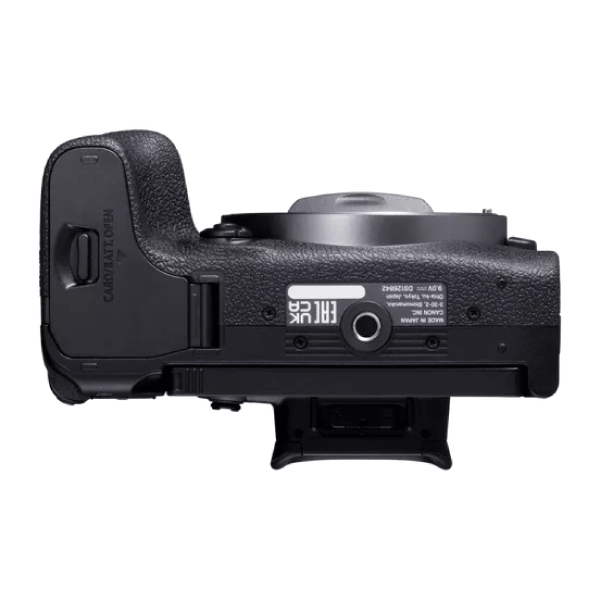

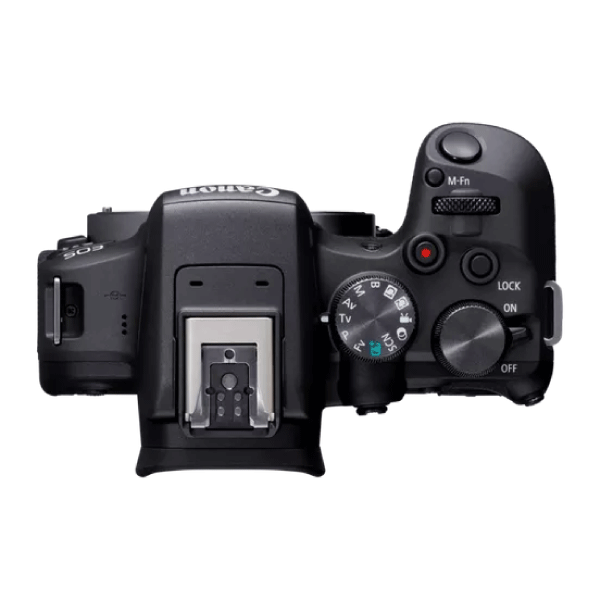

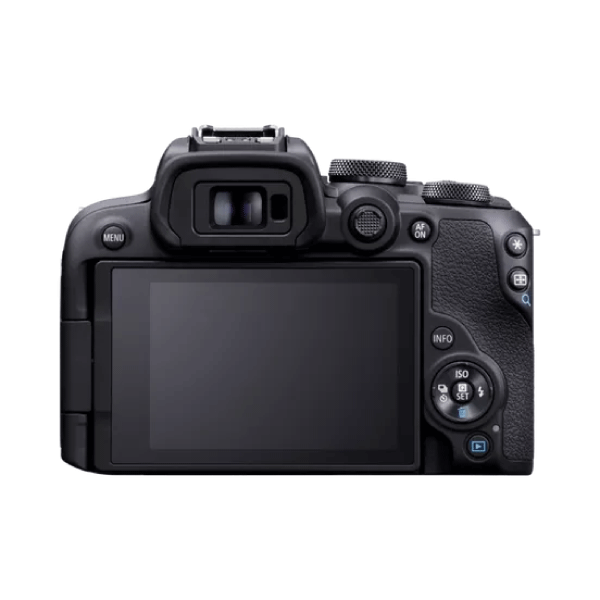

Canon EOS R10 +EF-M 18-150MM F/3.5-6.3 IS STM

Description

Image Sensor

• Type
  Approx. 22.3 × 14.9 mm (APS-C) CMOS
• Effective Pixels
  24.2MP
• Total Pixels
  25.5MP
• Aspect Ratio
  3:2
• Low-Pass Filter
  Built-in/Fixed
• Sensor Cleaning
  EOS integrated cleaning system
• Color Filter Type
  Primary Color
• Sensor Shift-IS
  No

Image Processor

• Type
  DIGIC X

Lens

• Lens Mount
  RF (natively supporting RF and RF-S lenses)
  EF and EF-S lenses can be attached using Mount Adapter EF-EOS R, EF-EOS R Control Ring Mount Adapter, Drop-in Filter Mount Adapter EF-EOS R
  EF-M lenses are not compatible
• Focal Length
  Equivalent to 1.6x the focal length of the lens with RF/RF-S and EF/EF-S lenses
• Image Stabilization
  Lens/Digital only

Focusing

• Type
  Dual Pixel CMOS AF II
• AF System / Points
  With Area 100% horizontal and 100% vertical (Auto selection)
  90% horizontal and 100% vertical (Manual selection)
• AF Working Range
  EV -4 – 20 (at 23°C & ISO100)
• AF Modes
  One Shot
  Servo AF
  Auto Switch (only in A+ mode)
• AF Point Selection
  Automatic selection: 651 Available AF areas when automatically selected
  Manual selection: 1-point AF (AF frame size can be changed) 4503 AF positions available stills (3713 Movies)
  Manual selection: AF point Expansion 4 points (up, down, left, right)
  Manual selection: AF point Expansion surrounding
  Manual selection: Flexible Zone AF 1-3 (all AF points divided into minimum 9 to 513 maximum focusing zones)
  Manual selection: Whole Area AF (Entire focusing area with 651 maximum focusing zones)
• AF Tracking
  Humans (Eyes/Face/Head/Body), Animals (Dogs, Cats and Birds) or Vehicles (Racing cars or Motor bikes)
• AF Lock
  Locked when shutter button is pressed halfway or AF ON is pressed in One Shot AF mode. Using customized button set to AF stop in AI servo
• AF Assist Beam
  Emitted by built in LED or optional dedicated Speedlight (flash)
• Manual Focus
  Selected on lens/camera

Exposure Control

• Metering Modes
  Real-time with image sensor, 384-zone metering.
  (1) Evaluative metering (linked to All AF points)
  (2) Partial metering (Approx. 5.8% of viewfinder at center)
  (3) Spot metering: Centre spot metering (Approx. 2.9% viewfinder at center) AF point-linked spot metering not provided
  (4) Centre weighted average metering
• Metering Brightness Range
  EV -2 – 20 (at 23°C, ISO100, with evaluative metering)
• AE Lock
  Auto: AE lock takes effect when focus is achieved (AE is locked as soon as subjects are in focus using One-Shot AF when set to [C.Fn 2: AE lock meter. mode after focus].)
  Manual: By AE lock button in P, Av, Fv, Tv and M modes
• Exposure Compensation
  +/-3 EV in 1/3 or 1/2 stop increments (can be combined with AEB)
• AEB
  +/-3 EV in 1/3 or 1/2 stop increments
• Anti-flicker Shooting
  Yes. Flicker detected at a frequency of 100 Hz or 120 Hz.
• ISO Sensitivity
  Auto 100-32000 (in 1/3-stop or whole stop increments)
  ISO can be expanded to H: 51200

Shutter

• Type
  Electronically controlled focal-plane shutter and Electronic shutter function in sensor
• Speed
  Mechanical: 30-1/4000 sec (1/2 or 1/3 stop increments), Bulb, Electronic: 30-1/16000 (1/2 or 1/3 stop increments up to 1/8000 then 1 stop until 1/16000) (Total shutter speed range. Available range varies by shooting mode)
• Shutter Release
  Soft-touch electromagnetic release

White Balance

• Type
  Auto white balance with the imaging sensor
  AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Color Temperature Setting”
• Settings
  White balance compensation:
  1. Blue/Amber +/-9
  2. Magenta/Green +/-9
• Custom White Balance
  Yes, 5 setting can be registered
  +/-3 levels in single level increments
• WB Bracketing
  3, 2, 5 or 7 bracketed images per shutter release
  Selectable Blue/Amber bias or Magenta/Green bias

Viewfinder

• Type
  0.39 inch OLED color EVF
• Dot Count
  2.36 Million dots (1024×768)
• Coverage (Vertical/Horizontal)
  Approx. 100%
• Magnification
  Approx. 0.95x
• Eyepoint
  Approx. 22mm (At -1 m-1 from eyepiece lens end)
• Diopter Correction
  -3 to +1 m-1 (diopter)
• Display Performance
  Power saving: 59.94 fps Smooth 119.98 fps
• Viewfinder Information
  Accessory attached indicator, AE lock, AEB, AF area, AF method, AF operation, AF point (1-point AF), AF point information, Anti-flicker shooting, Aperture value, Aspect ratio, Audio recording level (manual), Audio recording level indicator (manual), Auto Lighting Optimizer, Battery level, Bluetooth function, Canon Log, Card for recording/playback, Creative filters, Bulb timer, Digital Lens Optimizer, Digital zoom, Drive mode, Electronic level, Electronic shutter, Exposure compensation, Exposure level indicator, Exposure simulation, FE lock, FEB, Flash off, Flash-ready, Focus bracketing, focus distance scale, GPS, Grid, HDR PQ, HDR shooting, Headphone volume, Highlight tone priority, High-speed sync, Histogram (Brightness/RGB), Image Quality, Image Stabilizer (IS mode), Interval timer, ISO speed, Lens information, Magnify button, Maximum burst, Metering mode, Movie recording in progress, Movie recording size, Movie recording time available, Movie recording time available/Elapsed recording time, Movie self-timer, Movie Servo AF, Multi Shot Noise Reduction, Multi Shot Noise Reduction, Multi-function lock warning, Multiple-exposure shooting, No. of remaining shots for focus bracketing, Number of available shots/Sec. until self-timer shoots, Number of remaining multiple exposures, Number of self-timer shooting, Overheat control, Picture Style, Quick Control button, Shooting mode, Shutter speed, Still photo cropping, Subject to detect, Touch Shutter/Create folder, vertical exposure scale, View Assist, White balance, White balance correction, Wi-Fi function, Wi-Fi signal strength
• Depth of Field Preview
  Yes, via customized button

LCD Monitor

• Type
  7.5 cm (2.95″) TFT color LCD monitor, Approx. 1.04 million dots
• Coverage
  Approx. 100%
• Viewing Angle (Horizontally/Vertically)
  Approx. 150° vertically and horizontally
• Coating
  Anti-smudge.
• Brightness Adjustment
  Manual: Adjustable to one of seven levels
  Colour Tone Adjustment: 4 settings
• Touch Screen Operations
  Capacitive method with menu functions, Quick Control settings, playback operations, and magnified display. AF point selection in still and Movies, touch shutter is possible in still photo shooting.
• Display Options
  (1) Basic Camera settings
  (2) Advance Camera settings
  (3) Camera settings plus histogram and dual level display
  (4) No info
  (5) Quick Control Screen
  (6) Display off

Flash

• Built-in Flash GN (ISO 100, meters)
  6
• Built-in Flash Coverage
  Approx. 18 mm focal length/angle of view (35mm equivalent: approx. 29 mm)
• Built-in Flash Recycle Time
  Approx. 5 sec.
• Modes
  E-TTL II Auto Flash, Metered Manual
• Red-Eye Reduction
  Supported
• X-Sync
  1/200 sec. mechanical shutter
  1/250 sec. electronic 1st curtain
  Flash photography is not available with Electronic shutter.
• Flash Exposure Compensation
  +/- 3EV in 1/3 increments with EX series Speedlight flashes
• Flash Exposure Bracketing
  Yes, with compatible External Flash (+/- 3EV in 1/3- or 1/2-stop increments with EX/EL series Speedlight flashes)
• Flash Exposure Lock
  Yes
• Second Curtain Synchronization
  Yes, (With both the built-in and external Speedlights)
• Hotshoe / PC Terminal
  Yes/No
• External Flash Compatibility
  E-TTL II with EX/EL series Speedlight, wireless multi-flash support
• External Flash Control
  via camera menu screen

Shooting

• Modes
  Stills: Scene Inteligent Auto, 15 Special Scene modes(including Panning/Panoramic Shot), Creative Filters, Flexible priority AE, Program AE, Shutter priority AE, Aperture priority AE, Manual, Bulb and Custom (x2)
  Movie: HDR Movies, Movie Auto Exposure, Movie Manual Exposure
• Picture Styles
  Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
• Color Space
  “sRGB and Adobe RGB / Fixed at HDR PQ Highlight Tone Priority (3 settings) Auto Lighting Optimizer (4 settings)
  Long exposure noise reduction (3 settings)
  High ISO speed noise reduction (4 settings) (still and video)
  Clarity (+/- 4)
  Lens optical correction:
  – Peripheral illumination correction, Chromatic aberration correction, Distortion correction (during/after still photo shooting, during video only)
  – Diffraction correction, Digital Lens Optimizer (during/after still photo shooting)”
• Image Processing
  Resize JPEG / HEIF images to M, S1, S2
  Cropping: JPEG / HEIF images can be cropped (Aspect ratios 3:2, 4:3, 16:9, 1:1)
  Cropping of images
  – Switch between vertical and horizontal cropping orientation
  – Image straightening
  – Cropping frame can be moved using touch screen operation
  RAW image processing
  Cloud RAW image processing
  Multiple exposure
  HDR
  HEIF to Jpeg conversion
• Drive Modes
  Single, Continuous High+, Continuous High, Continuous Low, Self-timer (2s+remote, 10s+remote, continuous)
• Continuous Shooting
  Max. Approx. 15 FPS with Mechanical shutter/1st curtain electronic shutter the speed maintained for 460 JPEG or 29 RAW images
  Max. Approx. 23 FPS with Electronic shutter the speed maintained for 70 JPEG or 21 RAW images
• Interval Timer
  Built in

File Type

• Still Image Type
  RAW 14 bit: RAW and C-RAW (Canon original RAW 3rd edition)
  JPEG 8 bit: 2 compression options
  HEIF 10 bit: 2 compression options
  Complies with Exif 2.31 and Design rule for Camera File system 2.0
  Complies with Digital Print Order Format [DPOF] Version 1.1
• RAW+JPEG Simultaneous Recording
  Yes, any combination of RAW + JPEG or RAW + HEIF possible
• Image Size
  RAW / C-RAW:
  3:2 ratio 6000×4000
  JPEG/ HEIF:
  3:2 ratio (L) 6000×4000, (M) 3984×2656, (S1) 2976×1984, (S2) 2400×1600
  4:3 ratio (L) 5328×4000, (M) 3552×2664, (S1) 2656×1992, (S2) 2112×1600
  16:9 ratio (L) 6000×3368, (M) 3984×2240, (S1) 2976×1680, (S2) 2400×1344
  1:1 ratio (L) 4000×4000, (M) 2656×2656, (S1) 1984×1984, (S2) 1600×1600
• Folders
  New folders can be manually created and selected
• File Numbering
  (1) Continuous numbering
  (2) Auto reset
  (3) Manual reset
• File Naming
  N/A

EOS Movie

• Movie Type
  MP4 Video:
  4K UHD, Full HD (16:9)
  4K / Full HD: H.265 / HEVC, Audio: AAC / Linear PCM
  4K / Full HD: H.264 / MPEG-4 AVC, Audio: AAC / Linear PCM
• Movie Size
  4K UHD Fine (16:9) 3840 x 2160 (29.97, 25, 23.98 fps) inter frame / light inter frame
  4K UHD Crop (16:9) 3840 x 2160 (59.94, 50 fps) inter frame / light inter frame
  4K / Full HD Time-lapse (16:9) 3840 x 2160 / 1920 x 1080 (29.97, 25 fps) intra frame
  Full HD (16:9) 1920 x 1080 (119.9, 100, 59.94, 50, 29.97, 25, 23.98 fps) inter frame / light inter frame
  Full HD (16:9) 1920 x 1080 HDR (29.97, 25 fps) inter frame
• Color Sampling (Internal Recording)
  4K UHD / Full HD – YCbCr4:2:0 8-bit or YCbCr4:2:2 10bit (when HDR PQ is enabled)
• Canon Log
  Not supported
• Movie Length
  Max duration 2 hours (excluding High Frame Rate movies). No 4 GB file limit with exFAT formatted card.
• High Frame Rate Movie
  Full HD 1920 x 1080 at 100 fps or 119.9 fps
  Recorded as 1/4-speed slow motion movie
• Frame Grab
  8.3-megapixel JPEG still image frame grab from 4K UHD movie possible
  (HEIF only possible when HDR PQ is set)
• Bitrate / Mbps
  MOV: MP4 HDR PQ: Off:
  4K UHD (29.97p/25.00p/23.98p): IPB Approx. 120 Mbps
  4K UHD (29.97p/25.00p/23.98p): IPB Light Approx. 60 Mbps
  4K UHD (crop) (59.94p/50.00p): IPB Approx. 230 Mbps
  4K UHD (crop) (59.94p/50.00p): IPB Light Approx. 120 Mbps
  4K UHD Time-lapse (29.97p/25.00p): ALL-I Approx. 470 Mbps
  Full HD (119.9p / 100p): IPB Approx. 120 Mbps
  Full HD (119.9p / 100p): IPB Light Approx. 70 Mbps
  Full HD (59.94p/50.00p): IPB Approx. 60 Mbps
  Full HD (59.94p/50.00p): IPB light Approx. 35 Mbps
  Full HD (29.97p/25.00p/23.98p): IPB Approx. 30 Mbps
  Full HD (29.97p/25.00p/23.98p): IPB Light Approx. 12 Mbps
  Full HD Time-lapse (29.97p/25.00p):ALL-I Approx. 90 Mbps
  MOV: MP4 HDR PQ: On
  4K UHD (29.97p/25.00p/23.98p): IPB Approx. 170 Mbps
  4K UHD (29.97p/25.00p/23.98p): IPB Light Approx. 85 Mbps
  4K UHD (crop) (59.94p/50.00p): IPB Approx. 340 Mbps
  4K UHD (crop) (59.94p/50.00p): IPB Light Approx. 170 Mbps
  4K UHD Time-lapse (29.97p/25.00p): ALL-I Approx. 470 Mbps
  Full HD (119.9p / 100p): IPB Approx. 180 Mbps
  Full HD (119.9p / 100p): IPB Light Approx. 100 Mbps
  Full HD (59.94p/50.00p): IPB Approx. 90 Mbps
  Full HD (59.94p/50.00p): IPB light Approx. 50 Mbps
  Full HD (29.97p/25.00p/23.98p): IPB Approx. 45 Mbps
  Full HD (29.97p/25.00p/23.98p): IPB Light Approx. 28 Mbps
  Full HD Time-lapse (29.97p/25.00p):ALL-I Approx. 135 Mbps
• Dual Card Recording
  No
• Microphone
  Built-in stereo microphone (48 KHz, 16-bit x 2 channels)
• HDMI Display
  Output to external monitor only (output of images and shooting information, images/video are recorded to the card)
  Camera screen and External Monitor output (Recording to camera is not possible, use with external recorder, camera screen shows images with shooting information)
• HDMI Output
  Auto:
  – 4K (UHD) 59.94p / 50.00p/29.97p /25.00p/23.98p,
  – 1080 59.94p / 59.94i, 50.00p / 50.00i
  – 480 59.94p
  – 576 50p
  1080p:
  – 1080 59.94p / 59.94i, 50.00p / 50.00i
  – 480 59.94p
  – 576 50p
  Uncompressed YCbCr 4:2:0, 8-bit or when HDR PQ is enabled YCbCr 4:2:2, 10-bit, sound output via HDMI is also possible
• Focusing
  Dual Pixel CMOS AF II with Eye/Face Detection and Tracking AF (people, animals and vehicles), Movie Servo AF, Manual Focus
• ISO
  Auto: 100-12800, H: 25600
  Manual: 100-12800, H: 16000-25600

Other Features

• Custom Functions
  18 custom functions + button and dial customizations
• Metadata Tag
  User copyright information (can be set in camera)
• LCD Panel / Illumination
  No
• Water/Dust Resistance
  No
• Voice Memo
  No
• Intelligent Orientation Sensor
  Yes
• Playback Zoom
  1.5x – 10x in 15 steps
• Display Formats
  (1) Single image
  (2) Single image with information (2 levels)
  Basic – Shooting information (shutter speed, aperture, ISO and Image quality)
  Detailed – Shooting information (shutter speed, aperture, ISO, metering Image, quality and file size), Lens information, Brightness and RGB histogram, White balance, Picture Style, Color space and noise reduction, Lens optical correction, GPS information
  (3) 4 image index
  (4) 9 image index
  (5) 36 image index
  (6) 100 image index
  (7) Jump Display (1, 10 or Custom(30) images, start of burst sequence Date, Folder, Movies, Stills, Protected images, Rating)
  (8) Movie edit
  (9) RAW processing
  (10) Rating
• Slideshow
  Image selection: All images, by Date, by Folder, Movies, Stills, Protected images or Rating
  Playback time: 1/2/3/5/10 or 20 seconds
  Repeat: On/Off
• Histogram
  Brightness: Yes
  RGB: Yes
• Highlight Alert
  Yes
• Image Erase
  Single image, select range, Selected images, Folder, Card
• Image Erase Protection
  Erase protection of Single image, Folder or Card all found images (only during image search)
• Self Timer
  2 or 10 sec.
• Menu Categories
  (1) Shooting menu
  (2) AF Menu
  (3) Playback menu
  (4) Network
  (5) Setup menu
  (6) Custom Functions menu
  (7) My Menu
• Menu Languages
  29 Languages
  English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Indonesia and Japanese
• Firmware Update
  Update possible by the user (Camera, Lens, External Speedlight, BLE remote control, Lens adapter, multi-function shoe accessories)

Interface

• Computer
  Hi-Speed USB 2.0 USB Type-C connector also used for computer communication / smartphone communication / USB power.
• Wi-Fi
  Wireless LAN (IEEE802.11b/g/n) (2.4 GHz), with Bluetooth 4.2 support Features supported – EOS Utility, Smartphone, Upload to image. Canon, Wireless printing
• Other
  HDMI Micro out (Type D, HDMI-CEC not supported)
  External Microphone In (3.5mm Stereo mini jack)
  RS-60E3-type terminal (remote control terminal)

Direct Print

• Canon Printers
  Canon Compact Photo Printers and PIXMA Printers supporting Pict Bridge via wireless LAN
• Pict Bridge
  Yes (via Wireless LAN)

Storage

• Type
  SD/SDHC/SDXC and UHS-II

Supported Operating System

• PC
  Windows 10 and Windows 11 (tablet mode not supported)
• Macintosh
  OS X v10.14, 10.15. OS 11

Software

• Image Processing
  Digital Photo Professional 4.16.10 or later
  Digital Photo Professional Express mobile app (iOS only)
• Other
  EOS Utility 3 (incl. Remote Capture), Picture Style Editor, EOS Lens Registration Tool, Canon Camera connect app (iOS/Android)

Power Source

• Batteries
  Rechargeable Li-ion Battery LP-E17 (supplied)
• Battery Life
  With LCD Approx. 430 shots (at 23°C)
  With Viewfinder Approx. 260 shots (at 23°C)
• Battery Indicator
  4 level indicator
• Power Saving
  Screen dimmer: 5 sec. / 10 sec. / 15 sec. / 20 sec. /25 sec. / 30 sec. / Disable
  Screen off: 5 sec. / 15 sec. / 30 sec. / 1 min. / 3 min. / 5 min. / 10 min. / 30 min. / Disable
  Auto power off: 15 sec. / 30 sec. / 1 min. / 3 min. / 5 min. / 10 min. / 30 min. / Disable
  Viewfinder off: 1 min. / 3 min. / Disable
• Power Supply & Battery Chargers
  Battery charger LC-E17E (supplied), AC Adapter AC-E6N and DC Coupler DR-E18, PD-E1 USB power adapter

Accessories

• Wireless File Transmitter
  None
• Cases / Straps
  An included strap, Hand Strap E2
• Lenses
  All RF and RF-S lenses (EF & EF-S via Lens adapters)
• Lens Adapters
  Mount Adapter EF-EOS R, EF-EOS R Control Ring Mount Adapter, Drop-in Filter Mount Adapter EF-EOS R
• Flash

  Canon Speedlite (EL-1*, EL-5, EL-100, 90EX, 220EX, 270EX, 270EX II, 320EX, 380EX, 420EX, 430EX, 430EX II, 430EX III 470EX-AI, 550EX, 580EX*, 580EX II*, 600EX*, 600EX-RT*, 600EX-II-RT*, Macro-Ring-Lite MR-14EX, Macro Ring Lite MR-14EX II, Macro Twin Lite MT-24EX, Macro Twin Lite MT-26EX-RT, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT*, Speedlite Transmitter ST-E3-RT V2*, Speedlight Transmitter ST- E10, Off-Camera Shoe Cord OC-E3*)

  *Must use Multi-Function Shoe Adapter AD- E1 to retain weather sealing

• Remote Controller / Switch
  RS-60E3-type terminal (remote control terminal), Timer Remote Controller TC-80N3, Wireless Remote Control BR-E1, Infrared Remote Controller RC-6, Smartphone(Using Canon Camera Connect app)
• Other
  Shoe cover ER-SC2 (Included), Multi-Function Shoe Adapter AD-E1, Multi-Function Shoe Directional Stereo Microphone DM-E1D, Multi-Function Shoe Adapter for Smartphone Link AD-P1 for Android, Stereo Microphone DM-E1 / DM-E100, GPS Receiver GP-E2, Tripod grip HG-100TBR, Interface Cable IFC-100U, Interface Cable IFC-400U, Protecting Cloth PC-E1 / E2,

Physical Specifications

• Body Materials
  Primarily consists of a magnesium alloy and high-strength engineering plastic
• Operating Environment
  0 – 40 °C, 85% or less humidity
• Dimensions (W x H x D)
  Approx. 122.5 x 87.8 x 83.4mm
• Weight (Body Only)
  Approx. 382 g (429g with card and battery, Based on CIPA guidelines.)
