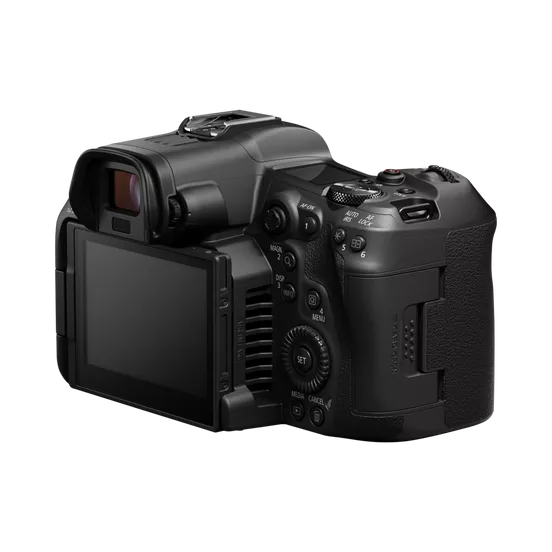

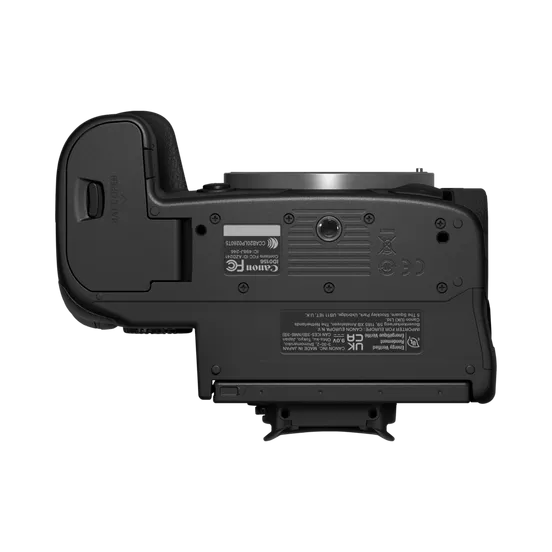

Canon EOS R5 C Body Camera

Description

Image Sensor

• Sensor
  3:2 Full Frame CMOS sensor (36 x 24mm)
• Filter
  RGB primary color filter (Bayer array)
• Sensor Modes
  Full Frame (8K) / Super 35mm (Crop) / Super 16mm (Crop)
• Total Pixels
  Approx. 47.10 megapixels
• Effective Pixels
  Video Mode:
  Approx. 35.40 megapixels (8192 x 4320): When resolution is 8192 x 4320, 4096 x 2160, or 2048 x 1080
  Approx. 33.20 megapixels (7680 x 4320): When resolution is 7680 x 4320, 3840 x 2160, or 1920 x 1080Photo Mode:
  Approx. 45 megapixels (8192 x 5464)
• Effective Sensor Screen Size
  36.0 x 19.0 mm (40.7 mm on the diagonal): When resolution is 8192 x 4320, 4096 x 2160 or 2048 x 1080
  33.8 x 19.0 mm (38.8 mm on the diagonal): When resolution is 7680 x 4320, 3840 x 2160, or 1920 x 1080
• Dynamic Range
  Canon Log 3: 1600% / 14 stops (at ISO 800)
  Wide DR: 800% (at ISO 400)

Image Processor

• Type
  DIGIC X

Lens

• Lens Mount
  Canon RF mount
  Compatible lenses: All RF lenses and EF lenses
  (includes EF-S lenses/EF cinema lenses)
• Lens Magnification Factor
  Full Frame:
  Actual focal length x approx. 1.0Super 35mm (Crop):
  5952×3140, 4096×2160 or 2048×1080 resolution: Actual focal length x approx. 1.460
  3840×2160, 1920×1080 or 1270×720 resolution: Actual focal length x approx. 1.534Super 16mm (Crop):
  In 2976×1570 or 2048×1080 resolution: Actual focal length x approx. 2.920
  In 1920×1080 or 1270×720 resolution: Actual focal length x approx. 3.069

• Peripheral Illumination Correction
  Yes
• Chromatic Aberration Correction
  Yes
• Distortion Correction
  Yes, RF Mount lenses only
• Diffraction Correction
  Yes
• ND Filter
  No
• Focus Control
  Via lens, Browser Remote, Camera Connect or EOS Utility
• Iris Control (EF Mount Lenses)
  1/2-stop, 1/3-stop or FINE control
• Cooke/I Technology Support
  No
• Anamorphic Lens Support
  Yes, x2.0 / x1.8 / x1.3
• Image Stabilization System
  Yes, 5-axis Electronic IS. Coordinates with supported lenses featuring optical-IS for optimal performance

Recording

• Internal Recording Media
  1x CFexpress card (CFexpress 2.0 Type B)
  1x SD card (SD/SDHC/SDXC)
  (SD Card recording available at bitrates up to 650 Mbps)
• Recording Time
  Cinema RAW Light LT: 8192 x 4320 1070 Mbps: 63 Mins
  Cinema RAW Light ST: 8192 x 4320: 1650 Mbps 41 Mins
  Cinema RAW Light HQ: 5952 x 3140: 1770 Mbps 38 Mins
  XF-AVC / MXF: 4096×2160: 410 Mbps 156 Mins
  MP4 (HEVC): 4096×2160: 225 Mbps 285 Mins
  MP4 (H.264): 4096×2160: 150 Mbps 428 Mins
• Recording Formats
  Video Mode:
  Cinema RAW Light (CRM): 12-bit RAW
  XF-AVC (MXF):4:2:2 10-bit (ALL-I or Long GOP)
  HEVC (MP4): 4:2:2 10-bit / 4:2:0 10-bit
  H.264 (MP4): 4:2:0 8-bitPhoto Mode:
  RAW / C-RAW / Dual Pixel RAW / HEIF / JPEG
• Relay Recording
  Yes
• Double Slot (Simultaneous) Recording
  Yes
• Simultaneous Recording in Multiple Formats
  Yes, in Dual Recording Mode
  Options Available: [CRL / XF-AVC / MP4] [All-I / Long GOP] [4:2:2 10-bit / 4:2:0 10-bit / 4:2:0 8-bit] [8K / 4K / 2K / FHD]
• System Frequency / Frame Rates
  59.94Hz mode (59.94P / 59.94i / 29.97P / 23.98P)
  50.00Hz mode (50.00P / 50.00i / 25.00P)
  24.00 Hz mode (24.00P)
• Cinema RAW Light Bit Rate/Bit Depth (PAL)
  12-bit Cinema RAW Light LT:
  8192 x 4320 / 50P / 2140 Mbps: approx. 31 Mins
  8192 x 4320 / 25P / 1070 Mbps: approx. 63 Mins
  5952 x 3140 / 50P / 1140 Mbps: approx. 59 Mins
  5952 x 3140 / 25P / 556 Mbps: approx. 122 Mins
  2976 x 1570 / 50P / 287 Mbps: approx. 237 Mins
  2976 x 1570 / 25P / 144 Mbps: approx. 474 Mins12-bit Cinema RAW Light ST:
  8192 x 4320 / 25P / 1650 Mbps: approx. 41 Mins
  5952 x 3140 / 50P / 1750 Mbps: approx. 39 Mins
  5952 x 3140 / 25P / 871 Mbps: approx. 78 Mins
  2976 x 1570 / 50P / 441 Mbps: approx. 154 Mins
  2976 x 1570 / 25P / 221 Mbps: approx. 308 Mins12-bit Cinema RAW Light HQ:
  5952 x 3140 / 25P / 1770 Mbps: approx. 38 Mins
  2976 x 1570 / 50P / 896 Mbps: approx. 76 Mins
  2976 x 1570 / 25P / 448 Mbps: approx. 152 Mins

• XF-AVC Recording Bit Rate / Sampling (PAL)
  4:2:2 10-bit (Intra-frame):
  4096×2160 or 3840×2160 / 50P / 810 Mbps: approx. 79 Mins
  4096×2160 or 3840×2160 / 25P / 410 Mbps: approx. 156 Mins
  2048×1080 or 1920×1080 / 50P or 50i / 310 Mbps: approx. 207 Mins
  2048×1080 or 1920×1080 / 25P / 160 Mbps: approx. 401 Mins4:2:2 10-bit (Long GOP):
  4096×2160 or 3840×2160 / 50P / 260 Mbps: approx. 246 Mins
  4096×2160 or 3840×2160 / 25P / 160 Mbps: approx. 401 Mins
  2048×1080 or 1920×1080 / 50P or 50i / 50 Mbps: approx. 1284 Mins
  2048×1080 or 1920×1080 / 25P / 50 Mbps: approx. 1284 Mins
• MP4 Recording Bit Rate / Sampling (PAL)
  HEVC 4:2:2 10-bit (Long GOP):
  8192×4320 or 7680×4320 / 25P / 540 Mbps: approx. 118 Mins
  4096×2160 or 3840×2160 / 50P / 225 Mbps: approx. 285 Mins
  4096×2160 or 3840×2160 / 25P / 135 Mbps: approx. 475 Mins
  2048×1080 or 1920×1080 / 50P or 25P / 50 Mbps: approx. 1284 MinsHEVC 4:2:0 10-bit (Long GOP):
  8192×4320 or 7680×4320 / 25P / 400 Mbps: approx. 160 Mins
  4096×2160 or 3840×2160 / 50P / 170 Mbps: approx. 377 Mins
  4096×2160 or 3840×2160 / 25P / 100 Mbps: approx. 642 Mins
  2048×1080 or 1920×1080 / 50P or 25P / 35 Mbps: approx. 1834 MinsH.264 4:2:0 8-bit (Long GOP):
  4096×2160 or 3840×2160 / 50P or 25P / 150 Mbps: approx. 428 Mins
  2048×1080 or 1920×1080 / 50P or 25P / 35 Mbps: approx. 1834 Mins

• Proxy Recording Bit Rate / Sampling (PAL)
  XF-AVC 4:2:0 8-bit (Long GOP)
  2048 X 1080 or 1920 x 1080 / 50P / 35 Mbps
  2048 X 1080 or 1920 x 1080 / 25P / 24 MbpsH.264 MP4 4:2:0 8-bit (Long GOP)
  2048 X 1080 or 1920 x 1080 / 50P or 25P / 9 Mbps
• Slow/Fast Motion
  8K recording up to 30FPS (60FPS with external power)
  4K / FHD recording: up to 120FPS
  Audio recording and auto-focus options available.
• Interval Record
  Yes
• Frame Record
  Yes
• Pre Record (Cache Record)
  Yes, 3 seconds (XF-AVC or MP4 recording only)
• Scan Reverse
  Yes
• Digital Tele-converter
  1.5x, 2x, 2.5x, 3x, Off
• Photo Recording Size
  3:2 ratio:
  (L, RAW, C-RAW) 8192×5464, (M1) 5808×3872, (S1) 4176×2784, (S2) 2400×1600
  1.6x (crop):
  (L) 5088×3392, (S2) 2400×1600
  4:3 ratio:
  (L) 7280×5464, (M1) 5152×3872, (S1) 3712×2784, (S2) 2112×1600
  16:9 ratio:
  (L) 8192×4608, (M1) 5808×3264, (S1) 4176×2344, (S2) 2400×1344
  1:1 ratio:
  (L) 5456×5456, (M1) 3872×3872, (S1) 2784×2784, (S2) 1600×1600

System

• Display Type
  3.2 inch 3:2 LCD Touch Panel
• Display Resolution
  2.1 million dots
• Display Touch Screen Functions
  Focus point selection, Shooting setting adjust, Start/Stop recording (activated via Menu)
• OSD for Vertical Shooting
  Yes, 90-degree rotation
• Wave Form Monitor
  Yes. LCD, EVF or HDMI
• False Color Display (Exposure Indication)
  Yes. LCD, EVF or HDMI (Use of viewing LUT will affect false color display)
• Color Bars
  SMPTE, EBU and ARIB
• Peaking
  Peaking 1, Peaking 2 (Color, Gain, Frequency customizable)
• Zebra
  Level 1; Level 2; Both
  Output via HDMI: Yes
• Markers
  On/Off selectable: center, horizontal, grid, aspect, safety zone, rectangular and user marker. Color selectable, yellow, blue, green, red, black, grey or white.

EVF

• Built-In EVF
  0.5-inch OLED color EVF, 5.76 million dots
• Optional EVF Accessory
  N/A

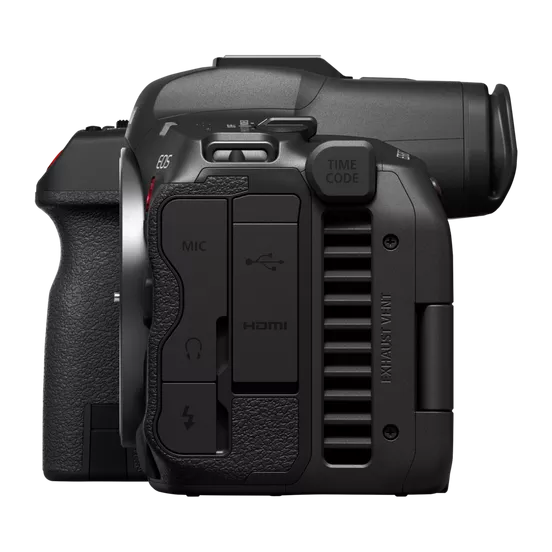

Inputs / Outputs

• Audio In
  1x 3.5mm mic input
  1x Built-in mono microphone
  (XLR input available via TASCAM CA-XLR2d-C accessory)
• Headphone Output
  1x 3.5 mm stereo output
• Video Monitor Output
  No
• HDMI
  1x micro-HDMI (8K RAW output available)
• USB
  1x USB-C (3.2 Gen1) for power, charging and communication (UVC Video output / Content Transfer Mobile App)
• SDI Output
  No
• Time Code
  1x DIN 1.0/2.3 (Input/Output)
• Genlock
  No
• Sync
  1x Flash Sync
• DC Output
  No
• DC Input
  Yes, via DR-E6C DC Coupler
• Remote Control Terminal
  1x N3-type terminal
• Wireless Control Terminal
  Available via WFT-R10 Accessory
• Lens Terminal
  No
• Ethernet Terminal
  Available via WFT-R10 Accessory
• IP Streaming / FTP
  Yes, available via WFT-R10 Accessory
  Protocol: UDP, RTP and RTP+FEC
• User LUT Input
  Yes, in-built LUTs/View Assist available for LCD/EVF/HDMI Monitoring.
  Custom LUTs can be applied directly to internal recordings via Look File function (compatible with 17 or 33 grid .cube files).
• Video Connector
  No
• Default Function Button Settings
  1. One-Shot AF
  2. Magnification
  3. DISP
  4. Menu
  5. Push Auto Iris
  6. AF lock
  7. Assignable Button Menu
  8. Display Panel Info
  9. Key Lock
  10. (Unassigned)
  11. FUNC
  12. (Unassigned)
  13. Set White Balance
• User Assignable Buttons
  13 Assignable buttons (numbered) on camera body. In excess of 80 options via the menu

Miscellaneous

• Tally Lamp
  Yes
• Custom Dial
  3x Electronic Dials + Multi-controller

Exposure

• Exposure Metering
  Video Mode:
  Standard, Backlight, SpotlightPhoto Mode:
  Evaluative, Partial, Spot, Centre Spot, AF-point Linked, Centre weighted average
• Exposure Compensation
  Yes
• Auto Exposure Mode
  Yes (Video mode: Auto Iris / ISO)
• Push Auto Iris
  Yes
• Exposure Lock
  Yes
• Auto Gain Control Setting
  Yes
• ISO Sensitivity
  Video Mode:
  ISO 100 to ISO 25,600 / 102,400* (increments of 1 or 1/3 stop)
  * When the sensitivity is expandedPhoto Mode:
  ISO 100 to ISO 51,200 / 102,400* (increments of 1 or 1/3 stop)
  * When the sensitivity is expanded
• Auto Focus System
  Video Mode:
  Dual Pixel CMOS AF with Eye AF and EOS iTR AF XPhoto Mode:
  Dual Pixel CMOS AF II
• AF Frame Sizes
  Large; size equivalent to approx. 20% (vertical) x 25% (horizontal) of the image display range
  Small; size equivalent to approx. 20% (vertical) x 8% (horizontal) of the image display range
  Whole Area; size equivalent to approx. 80% of sensor
• Auto Focus Modes
  One-Shot AF, Continuous AF, Continuous AF: Only Near Focus
• Face Detection AF
  Face Priority, Face Only, Eye AF
• Focus Guide
  For manual focus assist with compatible Canon RF mount, EF mount, Cine Servo Lenses
• Gain Setting
  -6 dB to 42 dB / 54 dB^* (Normal or Fine increments)
  ^* When the sensitivity is expanded

Shutter

• Control Modes
  Video Mode:
  Off; Speed; Angle; Clear Scan; SlowPhoto Mode:
  Mechanical, Elec. 1st-curtain, Electronic
• Shutter Speed
  Video Mode:
  1 sec to 1/2000 depending on frame rate and Shutter Control Mode, 39 setting optionsPhoto Mode:
  30-1/8000 sec (1/2 or 1/3 stop increments)
  Bulb (Total shutter speed range. Available range varies by shooting mode)
• Shutter Angle
  11.25º to 360º depending on frame rate
• Slow Shutter (SLS)
  1/3, 1/4, 1/6, 1/8, 1/12, 1/15, 1/25, 1/30 depending on frame rate
• Clear Scan
  24.00 Hz to 250.40 Hz

Custom Picture

• Stored Configurations
  Video Mode:
  C1: BT.709 Wide DR
  C2: Canon Log 3
  C3: PQ
  C4: HLG
  C5: BT.709 Standard
  C6: EOS Standard
  C7: EOS Neutral
  C8: Canon 709
  C09 – C20: User Defined
• Color Matrix
  CUSTOM PICTURE: Color Matrix Phase, Gain and RGB adjustment, in tandem with Gamma selection
• Master Pedestal
  -50 to +50
• Master Black
  Adjustable for each channel RGB -50 to +50 plus Master Black -50 to +50
• Black Gamma
  Adjustable Level -50 to +50, Range -20 to +50 and Point -20 to +50
• Low Key Saturation
  Adjustable: -50 to +50
• Knee
  Point -50 to +109, Slope -35 to +50, Saturation -10 to +10
• Sharpness
  Adjustment for Level, H Detail Freq., Coring, HV Detail Balance, Limit, Select, Knee Aperture and Level dependent sharpness
• Noise Reduction
  Off, On – Three Options: Automatic (ON/OFF) / Spatial Filter (1-12) / Frame Correlation (1-3)
• Skin Detail
  Off, Low, Middle, High / Hue, Chroma, Area, Luminance. 32 steps
• Selective Noise Reduction
  Off, Low, Middle, High / Hue, Chroma, Area, Luminance.
• Color Matrix (User Settings)
  Phase, Gain and RGB adjustment, in tandem with Gamma selection
• White Balance
  AWB, USER setting 01(setting range: 2000K to 15000K/ -20CC to +20CC), daylight, tungsten, settings (A/B)
• Color Correction
  Area selection / area revision of two areas
• Setup Level
  -50 to +50 On/Off

Wi-Fi & GPS Specifications

• Wi-Fi (Optional Third Party Accessory)
  Video Mode:
  Requires WFT-R10 Accessory
  Supports Browser Remote / Content Transfer Mobile / IP StreamingPhoto Mode:
  Built-in Wireless LAN (IEEE802.11a/b/g/n/ac) (5Ghz /2.4 GHz), with Bluetooth 5.0 support
  Supports EOS Utility / Camera Connect / image. Canon
• GPS Information (Optional Accessory)
  Requires GP-E2 Accessory
  Latitude/Longitude/Elevation, Coordinated Universal Time (UTC)

White Balance

• Auto
  Yes
• Preset
  Video Mode:
  Daylight (5400K), Tungsten (3200K), Kelvin (2000K-15000K, 100K intervals), Set A, Set BPhoto Mode:
  AWB, Daylight, Shade, Cloudy, Tungsten, Fluorescent, Flash, Kelvin, Custom
• White Balance Shift
  Video Mode:
  -9 to +9 (Daylight and Tungsten only)Photo Mode:
  -9 to +9 (Blue/Amber)
  -9 to +9 (Magenta/Green)

Black Balance

• Black Balance Adjustment
  Yes

Time Code

• Count Up System
  Regen, RecRun, Free Run, External, Hold (Drop frame available for some frame rates)
• Start Value Setting
  “00:00:00:00”, Set/Reset selectable

Audio

• Recording Format
  Cinema RAW Light or XF-AVC: Linear PCM (24-bit / 48 kHz, 4 channels)
  MP4: MPEG-2 AAC LC (16-bit, 48 kHz, 2-channel) / Linear PCM (16-bit, 48 kHz, 4-channel)

Accessories

• Supplied
  Battery Pack LP-E6NH
  Battery Charger LC-E6
  Shoulder Strap
  USB-C Cable
  Cable Protector
  AC Cable
• Optional
  Canon Battery Pack LP-E6NH/LP-E6N//LP-E6
  Canon Battery Charger LC-E6
  Canon Battery Grip BG-R10
  Canon DC Coupler DR-E6C
  Canon AC Adapter CA-946
  Canon USB Power Adapter PD-E1
  Canon Wireless File Transmitter WFT-R10
  Canon Interface Cable IFC-100U/IFC-400U
  Canon Shoulder Strap SS-1200
  Canon GPS Receiver GP-E2
  Canon RF lenses, EF lenses, EF cinema lenses,
  and accessories designed for these lenses
  Canon Mount Adapter EF-EOS R
  Canon Control Ring Mount Adapter EF-EOS R
  Canon Drop-In Filter Mount Adapter EF-EOS R
  (w/ drop-in variable ND filter A and circular polarizing filter A)
  Canon Mount Adapter EF-EOS R 0.71x
  Canon Extender RF1.4x
  Canon Extender RF2x
  Canon Remote Controller RC-6
  Canon Wireless Remote Controller BR-E1
  Canon Remote Switch RS-80N3
  Canon Timer Remote Controller TC-80N3
  Canon Directional Stereo Microphone DM-E1 / DM-E1D
  Canon Stereo Microphone DM-E100
• Third Party Accessories
  TASCAM CA-XLR2d-C XLR Adapter

Power Source

• Power Supply (Battery)
  LP-E6NH Battery Pack (Supplied) / LP-E6N and LP-E6 (Compatible)
• Power supply (Mains)
  USB-C Power Adapter PD-E1
  DC Coupler DR-E6C
  AC Adapter CA-946
• Power Consumption (Approx.)
  8K RAW 25P (10.5W)
  8K MP4 25P (11.2W)
  4K HEVC 50P (12.9W)
  4K XF-AVC 50P (13.3W)
• Recording Time (Approx.)
  With supplied LP-E6NH battery pack:
  8K RAW 25P: 50 Mins
  8K MP4 25P: 45 Mins
  4K HEVC 50P: 40 Mins
  4K XF-AVC 50P: 35 Mins

Physical Specifications

• Dimensions (Main Body Only)
  approx. 142 x 101 x 111 mm
• Weight (Body Only)
  approx.. 680g
• Weight (Accessories)
  approx. 770g (LP-E6NH, CFexpress Card, SD Card)
• Operating Temperature Range
  approx. 0 to 40°C, (85% relative humidity)
  approx. -5 to 45°C, (60% relative humidity)
