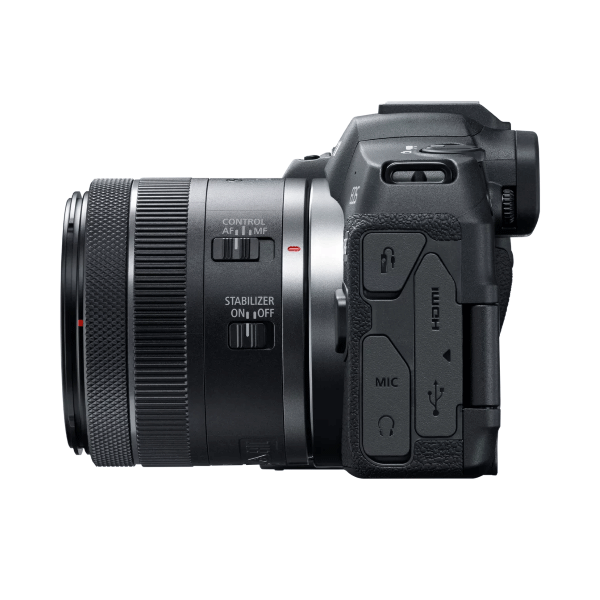

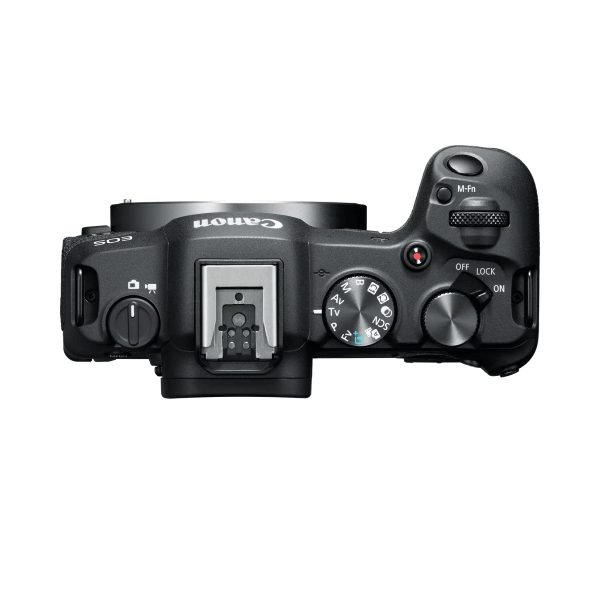

Canon EOS R8 Body Camera

Description

Image Sensor

• Type
  35.9 x 23.9 mm CMOS
• Effective Pixels
  Approx. 24.2megapixels
• Total Pixels
  Approx. 25.6 megapixels
• Aspect Ratio
  3:2
• Low-Pass Filter
  Built-in/Fixed
• Sensor Cleaning
  EOS integrated cleaning system
• Colour Filter Type
  Primary Colour
• Sensor Shift-IS
  No

Image Processor

• Type
  DIGIC X

Lens

• Lens Mount
  RF (EF and EF-S lenses can be attached using: Mount Adapter EF-EOS R, Control Ring Mount Adapter EF-EOS R, Drop-In Filter Mount Adapter EF-EOS R) EF-M lenses are not compatible
• Focal Length
  Equivalent to 1.0x the focal length of the lens with RF and EF lenses 1.6x with EF-S / RF-S
• Image Stabilisation
  Lens/Digital only

Focusing

• Type
  Dual Pixel CMOS AF II
• AF System / Points
  100% horizontal and 100% vertical with Face + Tracking and Auto Selection modes
  100% horizontal and 90% vertical with manual selection and large zone modes
• AF Working Range
  EV -6.5 – 21 (at 23°C & ISO100)
• AF Modes
  One Shot, Servo AF, AI Focus AF
• AF Point Selection
  Automatic selection: 1053 Available AF areas when automatically selected,
  Manual selection: 1-point AF (AF frame size can be changed) 4897 AF positions available stills (4067 Movies)
  Manual selection: AF point Expansion 4 points (up, down, left, right)
  Manual selection: AF point Expansion surrounding
  Manual selection: Flexible Zone AF 1-3 (all AF points divided into minimum 9 to 999 maximum focusing zones)
• AF Tracking
  Humans(Eye, Face, Head, Body), Animals (Dogs, Cats, Birds and Horses) or Vehicles (Racing cars or Motor bikes, Aircraft and Trains)
• AF Lock
  Locked when shutter button is pressed halfway or AF ON is pressed in One Shot AF mode. Using customised button set to AF stop in AI servo
• AF Assist Beam
  Emitted by built in LED or optional dedicated Speedlight (flash)
• Manual Focus
  Selected on lens/camera

Exposure Control

• Metering Modes
  Real-time with image sensor, 384-zone metering.
  (1) Evaluative metering (linked to All AF points)
  (2) Partial metering (approx. 5.9% of viewfinder at centre)
  (3) Spot metering: Centre spot metering (approx. 3% viewfinder at center)- AF point-linked spot metering not provided
  (4) Centre weighted average metering
• Metering Brightness Range
  EV -3 – 20 (at 23°C, ISO100, with evaluative metering)
• AE Lock
  Auto: AE lock takes effect when focus is achieved
  Manual: By AE lock button in P, Av, Fv, Tv and M modes
• Exposure Compensation
  +/-3 EV in 1/3 or 1/2 stop increments (can be combined with AEB)
• AEB
  +/-3 EV in 1/3 or 1/2 stop increments
• Anti-flicker Shooting
  Yes. Flicker detected at a frequency of 100 Hz or 120 Hz. High Frequency Anti-flicker shooting for M and TV modes.
• ISO Sensitivity
  Auto 100-102400 (in 1/3-stop or 1 stop increments) ISO can be expanded to L:50, H:204,800

Shutter

• Type
  Electronically-controlled focal-plane shutter and Electronic shutter function on sensor
• Speed
  Electronic 1st-curtain: 30-1/4000 sec (1/2 or 1/3 stop increments), Bulb Electronic: 30-1/16000 (1/2 or 1/3 stop increments up to 1/8000 then 1 stop to 1/16000) (Total shutter speed range. Available range varies by shooting mode)
• Shutter Release
  Soft touch electromagnetic release

White Balance

• Type
  Auto white balance with the imaging sensor
• Settings
  AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting White balance compensation:
  1. Blue/Amber +/-9
  2. Magenta/Green +/-9
• Custom White Balance
  Yes, 1 setting can be registered – From image or Live View
• WB Bracketing
  +/-3 levels in single level increments 3, 2, 5 or 7 bracketed images per shutter release Selectable Blue/Amber bias or Magenta/Green bias

Viewfinder

• Type
  0.39 inch OLED colour EVF
• Dot Count
  2.36 Million dots (1024×768)
• Coverage (Vertical/Horizontal)
  Approx. 100%
• Magnification
  Approx. 0.70x
• Eyepoint
  Approx. 22mm (At -1 m^-1 from eyepiece lens end)
• Diopter Correction
  -4 to +1 m^-1 (diopter)
• Display Performance
  Power saving: 59.94 fps Smooth 119.98 fps
• Viewfinder Information
  Accessory attached indicator, AE lock, AEB, AF area, AF method, AF operation, AF point (1-point AF), AF point information, Anti-flicker shooting, Aperture value, Aspect ratio, Audio recording level (manual), Audio recording level indicator (manual), Auto Lighting Optimizer, Battery level, Bluetooth function, Canon Log, Creative filters, Bulb timer, Digital Lens Optimizer, Digital zoom, Drive mode, Electronic level, Electronic shutter, Exposure compensation, Exposure level indicator, Exposure simulation, FE lock, FEB, Flash off, Flash-ready, Focus bracketing, focus distance scale, GPS, Grid, HDR PQ, HDR shooting, Headphone volume, Highlight tone priority, High-speed sync, Histogram (Brightness/RGB), Image Quality, Image Stabilizer (IS mode), Interval timer, ISO speed, Lens information, Magnify button, Maximum burst, Metering mode, Movie recording in progress, Movie recording size, Movie recording time available, Movie recording time available/Elapsed recording time, Movie self-timer, Movie Servo AF, Multi Shot Noise Reduction, Multi-function lock warning, Multiple-exposure shooting, No. of remaining shots for focus bracketing, Number of available shots/Sec. until self-timer shoots, Number of remaining multiple exposures, Number of self-timer shooting, Overheat control, Picture Style, Quick Control button, Shooting mode, Shutter speed, Still photo cropping, Subject to detect, Touch Shutter/Create folder, vertical exposure scale, View Assist, White balance, White balance correction, Wi-Fi function, Wi-Fi signal strength
• Depth of Field Preview
  Yes, via customized button or with “Exposure +DOP” ( up to F8)

LCD Monitor

• Type
  7.5cm (3.0″) Clear View LCD II, approx. 1.62 million dots
• Coverage
  Approx. 100%
• Viewing Angle (Horizontally/Vertically)
  Approx. 170° vertically and horizontally
• Brightness Adjustment
  Manual: Adjustable to one of seven levels
• Touch Screen Operations
  Capacitive method with menu functions, Quick Control settings, playback operations, and magnified display. AF point selection in still and Movies, touch shutter is possible in still photo shooting.
• Display Options
  (1) Basic Camera settings
  (2) Advance Camera settings
  (3) Camera settings plus histogram and dual level display
  (4) No info
  (5) Quick Control Screen

Flash

• Modes
  E-TTL II flash metering, Manual flash, MULTI flash (stroboscopic), Auto external flash metering, Manual external flash metering, Continuous shooting priority (CSP) mode
• X-Sync
  1/200 sec. Electronic 1st-curtain only
• Flash Exposure Compensation
  +/- 3EV in 1/3 or 1/2 stop increments with EL and EX series Speedlite flashes
• Flash Exposure Bracketing
  +/- 3EV in 1/3 or 1/2 stop increments with EL and EX series Speedlight flashes
• Flash Exposure Lock
  Yes
• Second Curtain Synchronization
  Yes via Speedlight
• Hotshoe / PC Terminal
  Yes(21-pin multi-function shoe equipped with the traditional 5-pin contact (X-sync, communication contact))/No
• External Flash Compatibility
  E-TTL II with EX / EL series Speedlight, wireless multi-flash support
• External Flash Control
  via camera menu screen

Shooting

• Modes
  Stills / Movie: Scene Intelligent Auto, Flexible priority AE, Program AE, Shutter priority AE, Aperture priority AE, Manual, Bulb and Custom (x2)
• Picture Styles
  Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
• Colour Space
  sRGB and Adobe RGB
• Image Processing
  Highlight Tone Priority (2 settings)
  Auto Lighting Optimizer (3 settings)
  Long exposure noise reduction
  Clarity
  High ISO speed noise reduction (4 settings) (stills and video)
  Lens optical correction
  – Peripheral illumination correction, Chromatic aberration correction Distortion correction (during/after still photo shooting, during video only)
  Diffraction correction,
  Digital Lens Optimizer (during/after still photo shooting only)
  Focus Bracketing including image compositing
  Resize to M, S1, S2
  Cropping of images (JPEG/HEIF)
  – Aspect ratios 3:2, 4:3, 16:9, 1:1 x1.6crop
  – Switch between vertical and horizontal cropping orientation
  – Image straightening
  – Cropping frame can be moved using touch screen operation
  RAW image processing
  Dual Pixel RAW – Portrait Relighting, Background Clarity ( in camera)
  Raw Cloud processing
  Multiple exposure
  HDR – with moving subject suppression
  HEIF to Jpeg conversion (single or batch)
• Drive Modes
  Single, Continuous High+, Continuous High, Continuous Low, Self timer (2s+remote, 10s+remote, Continous+remote)
• Continuous Shooting
  Max. Approx. 6fps with Electronic 1st-curtain shutter, speed maintained for 1000+ JPEG, or RAW, or CRAW images.
  Max. Approx. 40fps with Electronic shutter, speed maintained for 120 JPEG or 56 RAW, 100 CRAW images
  RAW Burst 30fps with 0.5 seconds pre record for max approx. 158 frames
• Interval Timer
  Built in

File Type

• Still Image Type
  RAW: RAW, C-RAW 14 bit (14-bit A/D conversion with Electronic 1st-Curtain, 12-bit A/D conversion with Electronic shutter, Canon original RAW 3rd edition)
  JPEG 8 bit: 2 compression options
  HEIF 10 bit: 2 compression options
  Complies with Exif 2.31 and Design rule for Camera File system 2.0
  Complies with Digital Print Order Format [DPOF] Version 1.1
• RAW+JPEG Simultaneous Recording
  Yes, any combination of RAW + JPEG or RAW + HEIF possible
• Image Size
  RAW/ C-RAW:
  3:2 ratio 6000×4000
  1.6x crop 3744×2496
  4:3 ratio 6000×4000
  16:9 ratio 6000×4000
  1:1 ratio 6000×4000
  JPEG/ HEIF:
  3:2 ratio (L) 6000×4000, (M) 3984×2656, (S1) 2976×1984, (S2) 2400×1600
  1.6x crop (L) 3744×2496, (S2) 2400×1600
  4:3 ratio (L) 5328×4000, (M) 3552×2664, (S1) 2656×1992, (S2) 2112×1600
  16:9 ratio (L) 6000×3368, (M) 3984×2240, (S1) 2976×1680, (S2) 2400×1344
  1:1 ratio (L) 4000×4000, (M) 2656×2656, (S1) 1984×1984, (S2) 1600×1600
• Folders
  New folders can be manually created, named and selected
• File Numbering
  (1) Continuous numbering
  (2) Auto reset
  (3) Manual reset
• File Naming
  No user pre-sets

EOS Movie

• Movie Type
  MP4 Video: 4K UHD, Full HD (16:9)  Audio: Linear PCM / AAC
• Movie Size
  4K UHD (16:9) 3840 x 2160 (59.94, 50, 29.97, 25, 23.98fps) inter frame (IPB) / (IPB Light)
  4K UHD cropped (16:9) 3840 x 2160 (59.94, 50, 29.97, 25, 23.98fps) inter frame (IPB) / (IPB Light)
  4K UHD Timelapse (16:9) 3840 x 2160 (29.97, 25fps) intra frame (All-I)
  Full HD (16:9) 1920 x 1080 (179.82, 150, 119.88, 100, 59.94, 50, 29.97, 25, 23.98fps) inter frame (IPB) / (IPB Light)
  Full HD Timelapse (16:9) 1920 x 1080 (29.97, 25fps) intra frame (All-I),
  Full HD HDR (16:9) 1920 x 1080 (29.97, 25fps) inter frame (IPB) [AAC Only]
  Full HD Creative Filters (16:9) 1920 x 1080 (29.97, 25fps) inter frame (IPB) / (IPB Light) [AAC Only]
• Colour Sampling (Internal Recording)
  4K / Full HD – YCbCr4:2:0 8 bit or YCbCr4:2:2 10 bit
• Canon Log
  Yes, Canon Log 3
• Movie Length
  Max movie continuous recording time available 2 hours
  High Frame Rate movie (Full HD 179.82/150fps): 20 min.
  High Frame Rate movie (Full HD 119.88/100fps): 30 min.
  No 4GB file limit with exFAT formatted SD card.
• High Frame Rate Movie
  Full HD at 179.82fps, 150fps, 100fps or 119.9fps
  Recorded as 1/6-speed slow motion movie
  Single scene maximum recording up to approx. 20 mins, 179.82/150fps 30mins 119.88/100fps
• Frame Grab
  8.3-megapixel JPEG/HEIF still image frame grab from 4K UHD movie possible (HEIF only possible when HDR PQ is set)
• Bitrate / Mbps
  MP4 H.264 / MPEG-4 AVC Canon Log: OFF, HDR PQ: OFF
  4K (59.94p/50.00p): IPB Approx. 230 Mbps
  4K (59.94p/50.00p): IPB (Light) Approx. 120 Mbps
  4K (29.97p/25.00p/23.98p): IPB Approx. 120 Mbps
  4K (29.97p/25.00p/23.98p): IPB (Light) Approx. 60 Mbps
  4K Timelapse (29.97, 25fps) All-I Approx. 470Mbps
  Full HD (179.82p/150.00p): IPB Approx. 180 Mbps
  Full HD (179.82p/150.00p): IPB (Light) Approx. 105Mbps
  Full HD (119.88p/100.00p): IPB Approx. 120 Mbps
  Full HD (119.88p/100.00p): IPB (Light) Approx. 70 Mbps
  Full HD (59.94p/50.00p): IPB Approx. 60 Mbps
  Full HD (59.94p/50.00p): IPB (Light) Approx. 35 Mbp
  s Full HD (29.94p/25.00p/23.93p): IPB Approx. 30 Mbps
  Full HD (29.94p/25.00p): IPB (Light) Approx. 12 Mbps
  Full HD Timelapse (29.97, 25fps) All-I Approx. 90Mbps
  MP4 H.265 / HEVC Canon Log: ON, or HDR PQ: ON
  4K (59.94p/50.00p): IPB Approx. 340 Mbps
  4K (59.94p/50.00p): IPB (Light) Approx. 170 Mbps
  4K (29.97p/25.00p/23.98p): IPB Approx. 170 Mbps
  4K (29.97p/25.00p/23.98p): IPB (Light) Approx. 85 Mbps
  4K Timelapse (29.97, 25fps) All-I Approx. 470Mbps
  Full HD (179.82p/150.00p): IPB Approx. 270 Mbps
  Full HD (179.82p/150.00p): IPB (Light) Approx. 150 Mbps
  Full HD (119.88p/100.00p): IPB Approx. 180 Mbps
  Full HD (119.88p/100.00p): IPB (Light) Approx. 100 Mbps
  Full HD (59.94p/50.00p): IPB Approx. 90 Mbps
  Full HD (59.94p/50.00p): IPB (Light) Approx. 50 Mbps
  Full HD (29.94p/25.00p/23.93p): IPB Approx. 45 Mbps
  Full HD (29.94p/25.00p): IPB (Light) Approx. 28 Mbps
  Full HD Timelapse (29.97, 25fps) All-I Approx. 135Mbps
• Dual Card Recording
  No
• Microphone
  Built-in stereo microphone (48 Khz, 16-bit x 2 channels), 3.5mm external microphone or other microphones using the Multi-Function shoe including XLR via Tascam CA-XLR2d-C
• HDMI Display
  Output to external monitor only (output of images and shooting information, images are recorded to the card)
• HDMI Output
  Camera screen and External Monitor output (no recording to the card, camera screen shows images with shooting information)
  Auto:
  – 4K (UHD) 59.94p / 50.00p / 29.97p / 25.00p / 23.98p,
  – 1080 59.94p / 59.94i, 50.00p / 50.00i
  – 480 59.94p
  – 576 50p
  1080p:
  – 1080 59.94p / 59.94i, 50.00p / 50.00i
  – 480 59.94p
  – 576 50p
  Uncompressed YCbCr 4:2:0, 8-bit or when CLog3/HDR PQ is enabled YCbCr 4:2:2, 10-bit, supporting BT.709, BT.2020, BT2100(PQ), when connected to compatible monitors. Sound output via HDMI is also possible
• Focusing
  Dual Pixel CMOS AF II with Eye/Face Detection and Tracking AF (people, animals and vehicles), Movie Servo AF, Manual Focus
• ISO
  Auto: 100-25600, H: 102400
  Manual: 100-25600, H: 102400

Other Features

• Custom Functions
  22 Custom Functions
• Metadata Tag
  Copyright information (author/copyright holder) set on the camera is added to image Exif information.
  Change movie rotation information.
  Image rating (0-5 stars)
  By pressing the erase button during playback of images from continuous shooting, users can erase all of these images (a continuous scene) at once.
• LCD Panel / Illumination
  No/No
• Water/Dust Resistance
  Yes
• Voice Memo
  No
• Intelligent Orientation Sensor
  Yes
• Playback Zoom
  1.5x – 10x in 15 steps
• Display Formats
  (1) Single image
  (2) Single image with information (2 levels)
  Basic – Shooting information (shutter speed, aperture, ISO and Image quality)
  Detailed – Shooting information (shutter speed, aperture, ISO, metering Image, quality and file size), Lens information, Brightness and RGB histogram, White balance, Picture Style, Colour space and noise reduction, Lens optical correction, GPS information, IPTC information
  (3) 4 image index
  (4) 9 image index
  (5) 36 image index
  (6) 100 image index
  (7) Jump Display (1, 10 or 100 images, start of burst sequence, Date, Folder, Movies, Stills, Protected images, Rating, )
  (8) Movie edit
  (9) RAW processing
  (10) Rating
• SlideShow
  Image selection: All images, by Date, by Folder, Movies, Stills, Protected images or Rating
  Playback time: 1/2/3/5/10 or 20 seconds
  Repeat: On/Off
• Histogram
  Brightness: Yes
  RGB: Yes
• Highlight Alert
  Yes
• Image Erase
  Single image, select range, Selected images, Burst sequence, Folder, Card
• Image Erase Protection
  Erase protection of Single image, Folder or Card all found images (only during image search)
• Self Timer
  2 or 10 sec.
• Menu Categories
  (1) Shooting menu
  (2) AF Menu
  (3) Playback menu
  (4) Network
  (5) Setup menu
  (6) Custom Functions menu
  (7) My Menu
• Menu Languages
  29 Languages
  English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Indonesia and Japanese
• Firmware Update
  Update possible by the user (Camera, Lens, External Speedlite, BLE remote control, Lens adapter) via card or Camera connect app

Interface

• Computer
  SuperSpeed Plus USB (USB 3.2 Gen 2) USB Type-C connector also used for computer communication / smartphone communication / USB charge or power.
• Wi-Fi
  Wireless LAN (IEEE802.11b/g/n) (2.4 GHz), with Bluetooth 4.2 support Features supported – EOS Utility, Smartphone, Upload to image. Canon
• Other
  HDMI Micro out (Type D, HDMI-CEC not supported)
  External Microphone In (3.5mm Stereo mini jack)
  Headphone out (3.5mm Stereo mini jack)
  RS-60E3-type terminal (remote control terminal)

Direct Print

• Canon Printers
  Not supported
• Pict Bridge
  Not supported

Storage

• Type
  SD/SDHC/SDXC and UHS-II

Supported Operating System

• PC
  Windows 10/11 (Desktop mode only)
• Macintosh
  macOS 10.15, 11.4, 12, 13

Software

• Image Processing
  Digital Photo Professional 4.17.20. or later, Digital Photo Professional Express mobile app (iOS only v1.8.10. or later) (RAW Image Processing not DUAL PIXEL RAW on DPP Express mobile)
• Other
  EOS Utility# 3.16.10 or later (incl. Remote Capture), Picture Style Editor 1.28.10 or later, EOS Lens Registration Tool, Canon Camera connect app 3.0.10 or later (iOS/Android)

Power Source

• Batteries
  Rechargeable Li-ion Battery LP-E17 (supplied)
• Battery Life
  With LCD Approx. 370 shots (at 23°C)
  With Viewfinder Approx. 220 shots (at 23°C)
• Battery Indicator
  3 level indicator
• Power Saving
  Screen dimmer: 5 sec. / 10 sec. / 15 sec. / 20 sec. /25 sec. / 30 sec. / Disable
  Screen off: 5 sec. / 15 sec. / 30 sec. / 1 min. / 3 min. / 5 min. / 10 min. / 30 min. / Disable
  Auto power off: 15 sec. / 30 sec. / 1 min. / 3 min. / 5 min. / 10 min. / 30 min. / Disable
  Viewfinder off: 1 min. / 3 min. / Disable
• Power Supply & Battery Chargers
  Battery charger LC-E17E (supplied), AC Adapter AC-E6N and DC Coupler DR-E18, PD-E1 USB power adapter

Accessories

• Wireless File Transmitter
  None
• Cases / Straps
  An included strap, Hand Strap E2
• Lenses
  All RF and RF-S lenses (EF & EF-S via Lens adapters)
• Lens Adapters
  Mount Adapter EF-EOS R, EF-EOS R Control Ring Mount Adapter, Drop-in Filter Mount Adapter EF-EOS R
• Flash

  Canon Speedlite (EL-1*, EL-5, EL-100, 90EX, 220EX, 270EX, 270EX II, 320EX, 380EX, 420EX, 430EX, 430EX II, 430EX III 470EX-AI, 550EX, 580EX*, 580EX II*, 600EX*, 600EX-RT*, 600EX-II-RT*, Macro-Ring-Lite MR-14EX, Macro Ring Lite MR-14EX II, Macro Twin Lite MT-24EX, Macro Twin Lite MT-26EX-RT, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT*, Speedlite Transmitter ST-E3-RT V2*, Speedlite Transmitter ST- E10, Off-Camera Shoe Cord OC-E3*)

  *Must use Multi-Function Shoe Adapter AD- E1 to retain weather sealing

• Remote Controller / Switch
  RS-60E3-type terminal (remote control terminal), Timer Remote Controller TC-80N3, Wireless Remote Control BR-E1, Smartphone(Using Canon Camera Connect app)
• Other
  Shoe cover ER-SC2 (Included), Multi-Function Shoe Adapter AD-E1, Multi-Function Shoe Directional Stereo Microphone DM-E1D, Multi-Function Shoe Adapter for Smartphone Link AD-P1 for Android, Stereo Microphone DM-E1 / DM-E100, GPS Receiver GP-E2, Extension Grip EG-E1, Tripod grip HG-100TBR Interface Cable IFC-100U, Interface Cable IFC-400U, Protecting Cloth PC-E1 / E2,

Physical Specifications

• Body Materials
  Primarily consists of a magnesium alloy (Partially aluminum alloy and partially polycarbonate resin with glass fiber.)
• Operating Environment
  0 – 40 °C, 85% or less humidity
• Dimensions (W x H x D)
  Approx. 132.5 × 86.1 × 70.0 mm
• Weight (Body Only)
  Approx. 414g (461g with card and battery, Based on CIPA guidelines.)
