Description
Hardware Specs
Model Version
-
C200P 1.0
CPU
-
Processor: 880 MHz Dual-Core
Memory & Storage
-
Flash/ROM: 16 MB (128 Mbit) NOR
-
DDR/RAM: 256 MB (2 Gbit) DDR3
Interfaces
-
Gigabit RJ45 Ports: 5
-
Gigabit RJ45 PoE Ports: #2~#5
-
Max Power on a Single PoE Port: 30 W
-
PoE Ports Notes: Compliant with IEEE 802.3at/af standards
-
Ethernet Notes: 1× WAN Port, 4× LAN Ports
-
USB-A 3.0 Ports: 1
LED Indicators
-
System
-
PoE Max Status
-
Link/ACT/PoE Status of Each PoE Port
Physical Buttons
-
Reset Button
Power
-
Power Methods: DC, 802.3at/af PoE, Passive PoE
-
DC Input: 54V 1.11A
-
Passive PoE: 24/48V
-
Power Adapter: Input 100 ~ 240 V, 50 Hz AC; Output 54V 1.11A DC
-
Max Power Consumption: Total 60 W; PoE 55 W; PoE (USB plugged in) 50 W; No PoE 5 W
-
Idle Power Consumption: 2 W
Reliability & Environment
-
EMS: IEC/EN 61000-4-2, Level 3 ESD: Contact 6 kV, Air 8 kV
-
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
-
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
-
Operating Humidity: 5% ~ 95% non-condensing
-
Storage Humidity: 0% ~ 100% non-condensing
-
Grounding Methods: Grounding Point
-
Certifications: FCC, CE
Mechanical & Installation
-
Installation: Desktop, Wall-mount
-
Casing Material: Metal
-

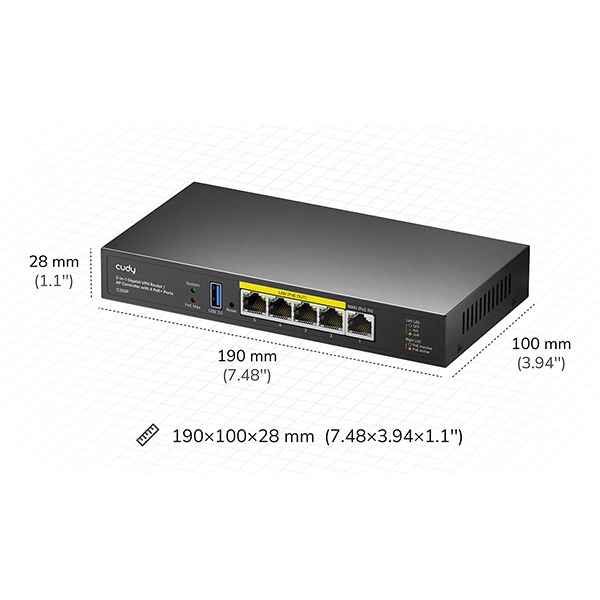

Dimensions: 190 × 100 × 28 mm (7.48 × 3.94 × 1.1 in)

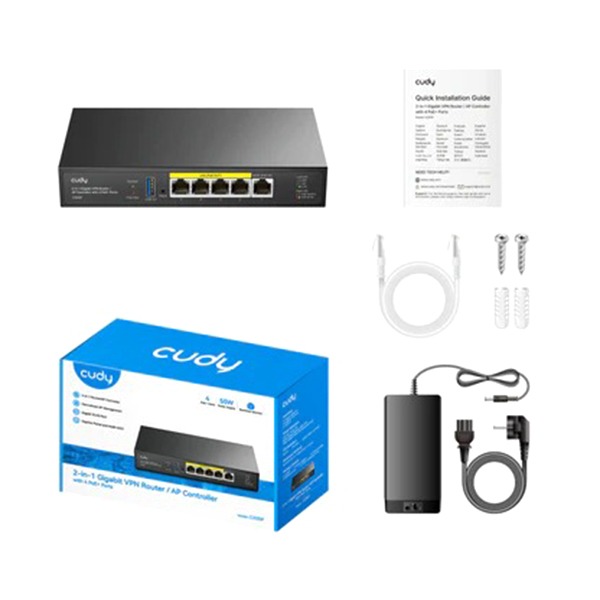

Package Contents
-
C200P
-
Power Adapter
-
Ethernet Cable
-
Installation Guide
-
Mounting Kit
Ordering Information
-
Retail Package Dimension: 209 × 132 × 81.5 mm (8.23 × 5.2 × 3.21 in)
-
Units per Carton: 10
-
Carton Dimension: 43.8 × 42.8 × 15.1 cm (17.24 × 16.85 × 5.94 in)
Software Specs
General
-
WAN Mode: DHCP, Static IP, PPPOE
-
Recommended Number of APs:
-
Main Router + AP Controller Mode: 10
-
AP Controller Mode: 200*
*If using the external portal server feature, it is recommended to manage fewer than 200 APs.
-
-
Recommended Number of Clients:
-
Main Router + AP Controller Mode: 100
-
AP Controller Mode: Unlimited
-
Network
-
QoS: Rate Limiting
-
DHCP: Address Reservation, DHCP Client List, Server
-
IP Versions: IPv4 / IPv6
-
IPv6 Protocols: Relay, Dynamic (SLAAC / DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite
-
TTL Customization: Extend, Spoof, Custom
-
IGMP: IGMP Proxy, IGMP Snooping
-
Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
-
Firewall: SPI Firewall, DoS Protection, Block PING
-
Application Layer Gateway: IPSec Passthrough, L2TP Passthrough, PPTP Passthrough, FTP Passthrough, TFTP Passthrough, H323 Passthrough, SIP Passthrough, RTSP Passthrough
VPN
-
VPN Server: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
-
VPN Client: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
-
VPN Performance:
-
OpenVPN Client (UL/DL): 22 / 24.7 Mbps
-
OpenVPN Server (UL/DL): 22 / 20.9 Mbps
-
WireGuard Client (UL/DL): 142 / 233.9 Mbps
-
WireGuard Server (UL/DL): 213 / 152 Mbps
-
-
Max Concurrent VPN Tunnels:
-
IPSec: 20
-
PPTP/L2TP: 16
-
OpenVPN: 16
-
DNS Options
-
DNS over TLS, Manual DNS, Rebind Protection, Override Clients’ DNS
-
DNS over TLS Providers: Cloudflare, Google, Quad9, Custom
USB Functions
-
Samba Server
Other Utilities
-
Wake on LAN: Supported
-
Online Detection: Supported
Management
-
All Devices Management: Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding, Per-Device Management, Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename
-
Content Management: Domain Filter, IP Filter
-
AP Management: Captive Portal, Multi-SSID (Up to 4 SSIDs per band)
System
-
Local Control Method: Config Web Page
-
Remote Control Method: Config Page via HTTPS, TR069/TR098/TR111/TR143/TR181
-
Firmware Upgrade: Local Update
-
Reliability: Timed Reboot, Backup and Restore
-
Diagnostic Tools: Diagnosis, Ping, Traceroute, NSLookup, System Log
Dashboard
-
Panel: Internet Status, WAN Status, LAN Status, VPN Status, DHCP Server Status, System Version, AP Management
Languages
-
English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese
