Description

GS1024  – Gigabit Switch Specifications

Interfaces

• 24 × Gigabit RJ45 Ports

• Extend Mode Ports: #1–#22

• VLAN Mode Ports: #1–#22

• LED Indicators: Speed/Link/ACT per port

Physical & Power

• Physical Buttons: VLAN / Default / Extend DIP Switch

• Power Input: AC Inlet (90–260V~, 50/60Hz)

• Max Power Consumption: 20 W

• Grounding: Three-Prong Plug & Grounding Point

Performance

• Copper Speed & Distance:

  • Cat. 3 or higher: 100 m @ 10 Mbps

  • Cat. 5 or higher: 100 m @ 100 Mbps

  • Cat. 5e or higher: 100 m @ 1 Gbps

  • Cat. 5e: 250 m @ 10 Mbps (Extend Mode only)

• MAC Address Table: 8192 entries

• Max Switching Capacity: 48 Gbps

• Max Forwarding Rate: 35.712 Mpps

• L2 Features: IGMP Snooping, Loop Prevention

Switching Protocols

• 802.3i 10BASE-T

• 802.3u 100BASE-TX

• 802.3ab 1000BASE-T

• 802.3x Flow Control

Environment

• Operating Temp: 0 ~ 40 ℃ (32 ~104 ℉)

• Storage Temp: -40 ~ 70 ℃ (-40 ~158 ℉)

• Operating Humidity: 10% ~ 90% non-condensing

• Storage Humidity: 5% ~ 90% non-condensing

Mechanical

• Dimensions: 270×182×44 mm (10.63×7.17×1.73 in)

• Casing Material: Metal

• Installation: Desktop / Rackmount via Brackets

Package Contents

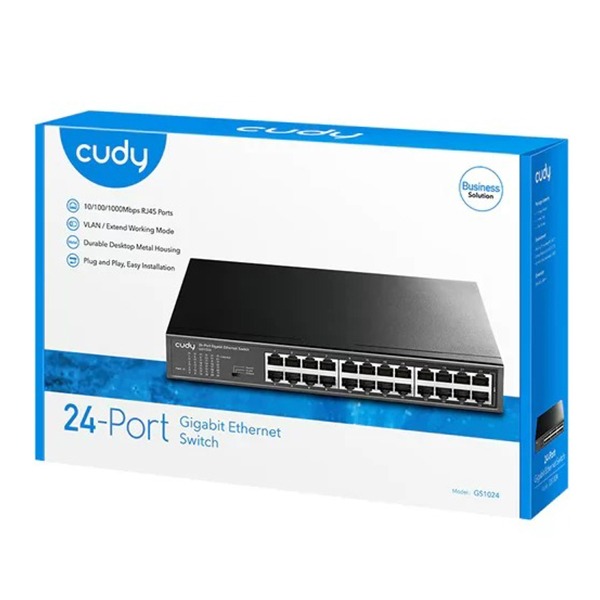

• GS1024 Switch

• Power Cord

• Installation Guide

• Mounting Kit

Ordering Info

• Retail Package Dimensions: 367×245×84 mm (14.45×9.65×3.31 in)

• Units per Carton: 5

• Carton Dimensions: 38×44×26.5 cm (14.96×17.32×10.43 in)
