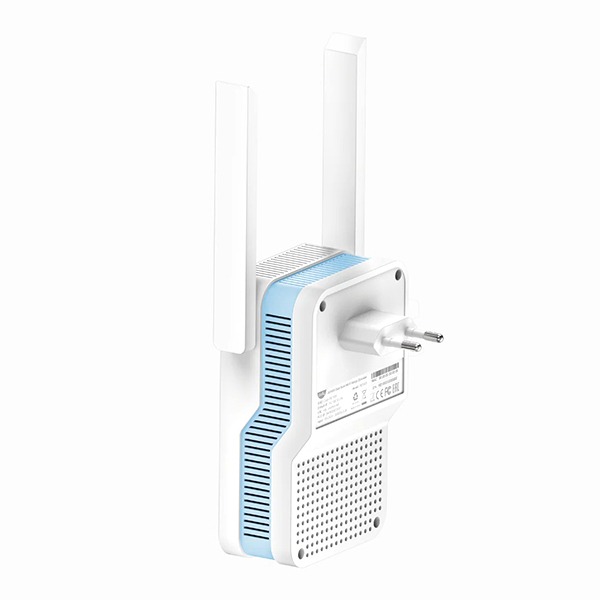

Cudy AC1200 DUAL BAND WIFI RANGE EXTENDER

Description

Hardware Specs

Model Version

• RE1200 1.0

CPU

• Processor: 580 MHz Single-Core, MIPS24KEC

Memory & Storage

• Flash/ROM: 8 MB (64 Mbit) NOR

• DDR/RAM: 64 MB (512 Mbit) DDR2

Wireless

• 5 GHz Wi-Fi Speed: 867 Mbps

• 2.4 GHz Wi-Fi Speed: 300 Mbps

• 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

• 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

• Wi-Fi Antennas: 2× Fixed

• FEM or PA/LNA: 5 GHz – 2× Internal, 2.4 GHz – 2× Internal

Range Performance

• Maximum: 150 m (492 ft) – Tested in open-space environments with minimal interference.
  Actual Wi-Fi range may vary depending on layout and wall materials.

• Wall Performance:

  • Two wooden walls, thickness < 10 cm (4″)

  • One concrete wall, thickness < 20 cm (7″)

Interfaces

• 10/100 Mbps RJ45 Ports: 1

• LED Indicators: Signal Strength, WPS, Power

Physical Buttons

• WPS Button

• Reset Button

Power

• Power Methods: AC

• AC Input: 100–240 V

• Power Input: AC Plug (EU, US, UK plug available per region version)

Reliability & Environment

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)

• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

• Operating Humidity: 10% ~ 90% non-condensing

• Storage Humidity: 5% ~ 95% non-condensing

• Certifications: FCC, CE

Mechanical & Installation

• Daisy Chain Installation: Recommended < 3 repeaters in a wireless chain

• Installation Method: Plug-In-Socket

• Dimensions: 129.6 × 80 × 48.6 mm (5.1 × 3.15 × 1.91 in)

• Product Weight: UK – 210 g (7.41 oz), US/EU – 205 g (7.23 oz)

Package Contents

• RE1200

• Installation Guide

Ordering Information

• Retail Package Weight: UK – 356 g (12.56 oz), US/EU – 369 g (13.02 oz)

• Retail Package Dimension: 161 × 120 × 96 mm (6.34 × 4.72 × 3.78 in)

• Units per Carton: 30

• Carton Net Weight: UK – 10.7 kg (23.59 lbs), US/EU – 11.1 kg (24.47 lbs)

• Carton Gross Weight: UK – 11.1 kg (24.47 lbs), US/EU – 12.0 kg (26.46 lbs)

• Carton Dimension: 50.4 × 37.7 × 34.1 cm (19.84 × 14.84 × 13.43 in)

Software Specs

Wireless

• Wi-Fi Standards: Wi-Fi 5

• Max Wi-Fi Modulation: 256-QAM

• Wi-Fi Efficiency: MU-MIMO (available on 5 GHz)

• Max Capacity: 128

• Recommended Client Upper Limit: 30

• Max Wi-Fi Channel Width: 80 MHz

• Wi-Fi Security: WPA/WPA2/WPA3

• WPS: Supported

General – Operation Modes

• Access Point

• Range Extender

Mesh

• Mesh System: Cudy Mesh Satellite

• Mesh Backhaul: Wireless Backhaul, Wired Backhaul

• Multi-Band Backhaul: Supported

System

• LED Control: Supported

• Local Control Method: Config Web Page, App Control

• Remote Control Method: App Control

• Firmware Upgrade: Local Update, App (Over the Air), Online Update

• Reliability: Timed Reboot, Backup and Restore

Dashboard

• Panel: Connected Devices, Host Network Status, Wi-Fi Status, LAN Status, System Version

• Charts: Mesh Topology

Diagnostic Tools

• Ping

• Traceroute

• NSLookup

• System Log

Languages

• English

• Bengali

• Catalan

• Czech

• German

• Greek

• Spanish

• French

• Hebrew

• Croatian

• Hungarian

• Italian

• Japanese

• Khmer

• Korean

• Dutch

• Norwegian

• Polish

• Portuguese

• Romanian

• Russian

• Slovak

• Swedish

• Thai

• Turkish

• Ukrainian

• Vietnamese

• Simplified Chinese

• Traditional Chinese
