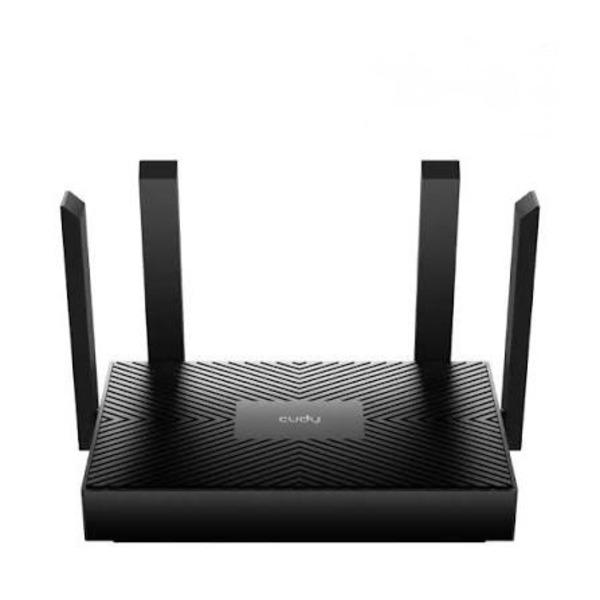

Cudy AX1500 Gigabit Wi-Fi 6 Router | WR1500

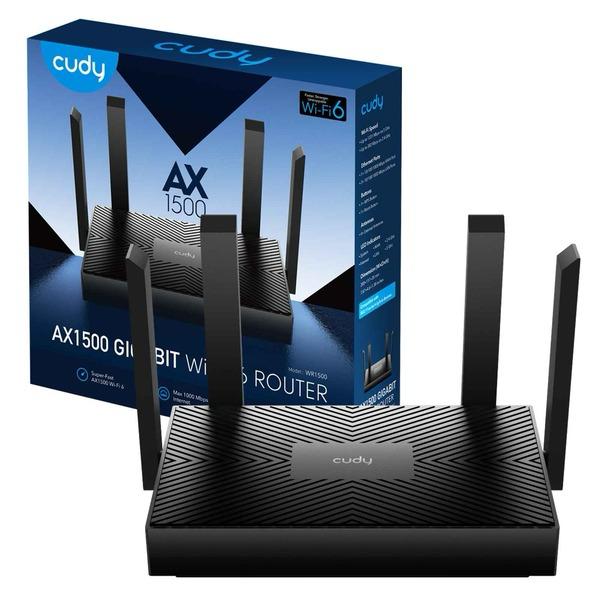

Cudy AX1500 Gigabit Wi-Fi 6 Router | WR1500 - Image 2

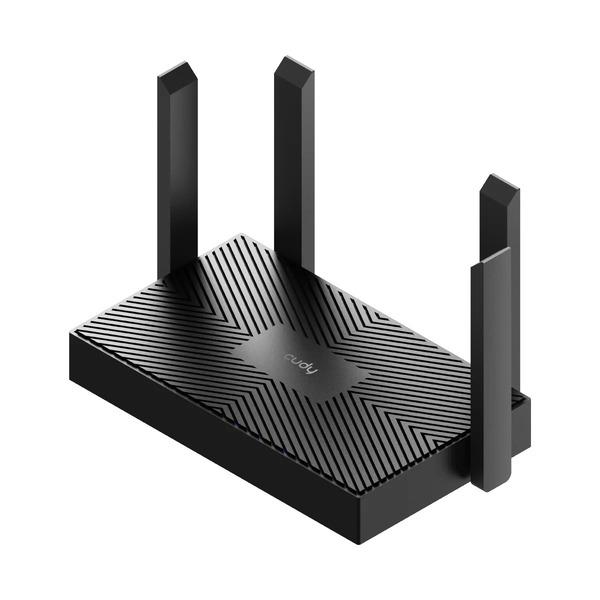

Cudy AX1500 Gigabit Wi-Fi 6 Router | WR1500 - Image 3
CUDY · SKU WR1500

Cudy AX1500 Gigabit Wi-Fi 6 Router | WR1500

In stock — ready to ship
$27.00 +VAT
Cudy

In stock

Whish Pay
Pay with your Whish Wallet
Online Card Payments
All major Credit/Debit cards
Ai-Powered
Personalized picks for you
Humans on WhatsApp
Mon–Fri 9am–6pm
  • Brand Cudy

Description

Hardware Specs

Model Version WR1500 1.0
CPU CPU Details 1 GHz CPU
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 128 MB (1 Gbit) DDR2
Wireless 5 GHz Wi-Fi Speed 1201 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2 Spatial Streams
2.4 GHz Wi-Fi Streams 2 Spatial Streams
Wi-Fi Antennas 4× Fixed
FEM or PA/LNA 5 GHz: 2× Internal, 2.4 GHz: 2× Internal
Beamforming
Range Performance Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4”)
One concrete wall with thickness < 20 cm (7”)
Interfaces Gigabit RJ45 Ports 4
Ethernet Notes 1× WAN port, the rest are LAN ports
LED System
Physical Buttons WPS Button, Reset Button
Power Power Input Type DC Jack
Power Methods DC
Power Input 12V⎓1A
Power Adapter In the Box Input: 100-240V~, 50/60Hz
Output: 12V⎓1A
Max Power Consumption (W) 10W
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE
Mechanical Installation
  • Desktop
  • Wall-mount
Dimension Main Part:
183.3×109×35 mm
7.22×4.29×1.38 inches
Product Weight
  • EU: 220 g (7.76 oz.)
  • ZH: 224.6 g (7.92 oz.)

Software Specs

Model Version WR1500 1.0
Wireless Wi-Fi Standards Wi-Fi 6
Max Wi-Fi Modulation 1024-QAM
Max Capacity 128
Recommended Client Upper Limit 60
Wi-Fi Channel Width Auto/20/40/80 MHz
Wi-Fi Security WPA/WPA2/WPA3
General Operation Modes
  • Wi-Fi Router
  • Access Point
  • Range Extender
  • WISP
  • Client
Mesh Cudy Mesh
Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
Multi-Band Backhaul
WAN Mode
  • DHCP
  • Static IP
  • PPPOE
  • PPTP
  • L2TP
Network QoS Per-User Rate Limiting
DHCP
  • Address Reservation
  • DHCP Client List
  • Server
IP Versions IPv4/IPv6
IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Static (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
Multicast
IPTV/VLAN
  • Bridge
  • Tag VLAN
  • VoIP VLAN
  • IPTV VLAN
IGMP
  • IGMP Proxy
  • IGMP Snooping
Forwarding
  • Port Forwarding
  • UPnP
  • DMZ
Firewall
  • SPI Firewall
  • Block PING
Utilities VPN Client
  • PPTP
  • L2TP
  • Wireguard
DNS Options
  • Manual DNS
  • Rebind Protection
  • Override Clients’ DNS
Wake on LAN
Online Detection
Management Parental Controls
  • Profiles Settings
  • Offline Time
  • Online Time
  • Pause the Internet
  • Web Filter
All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
Per-Devices Management
  • Internet On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
Content Management
  • Domain Filtering
  • IP Filtering
System Local Control Method
  • Config Web Page
  • App Control
Remote Control Method
  • Config Page via HTTPS
  • App Control
  • TR069/TR098/TR111/TR143/TR181
Firmware Upgrade
  • Local Update
  • App (Over the Air)
  • Online Update
Reliability
  • Timed Reboot
  • Backup and Restore
Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
Languages
  • English
  • Portuguese
  • Russian
  • Spanish
  • Ukrainian
  • French
  • Simplified Chinese
Dashboard Panel
  • Internet Status
  • Mesh Status
  • Devices Management
  • WAN Status
  • LAN Status
  • WISP Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
Charts
  • Mesh Topology
  • Internet Speed
  • WISP Speed
  • Wi-Fi Speed
Wireless WPS



Additional information

Brand

Shipping & returns

Same-day delivery in Beirut ($4.00 flat). 1–3 business days for the rest of Lebanon. 7-day return on unopened items.
