R700 1.0 – Hardware Specifications

CPU & Memory

• CPU: 880 MHz Dual-Core

• Flash/ROM: 16 MB (128 Mbit) NOR

• DDR/RAM: 128 MB (1 Gbit) DDR3

Interfaces

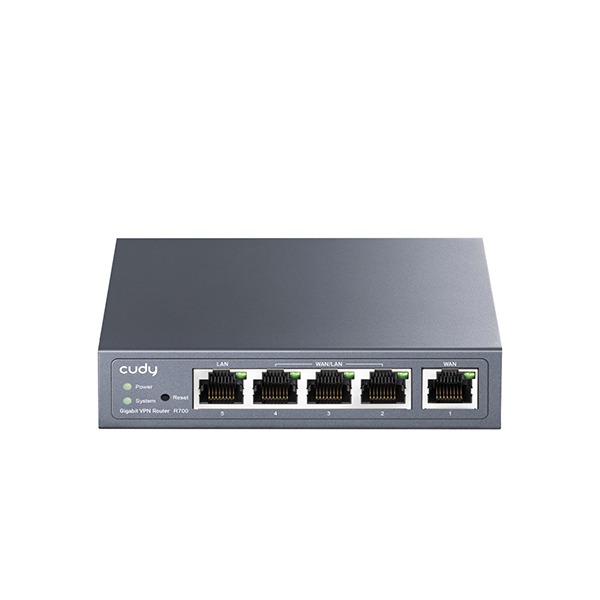

• Gigabit RJ45 Ports: 5

• Ethernet Notes: 1× WAN Port, 3× WAN/LAN Ports, 1× LAN Port

LED Indicators

• Power

• System

• Speed/Link/ACT of Ethernet Ports

Physical Buttons

• Reset Button

Power

• Power Methods: DC

• DC Input: 12V 1A

• Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 1A DC

Reliability / Environment

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)

• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

• Operating Humidity: 10% ~ 90% non-condensing

• Storage Humidity: 5% ~ 90% non-condensing

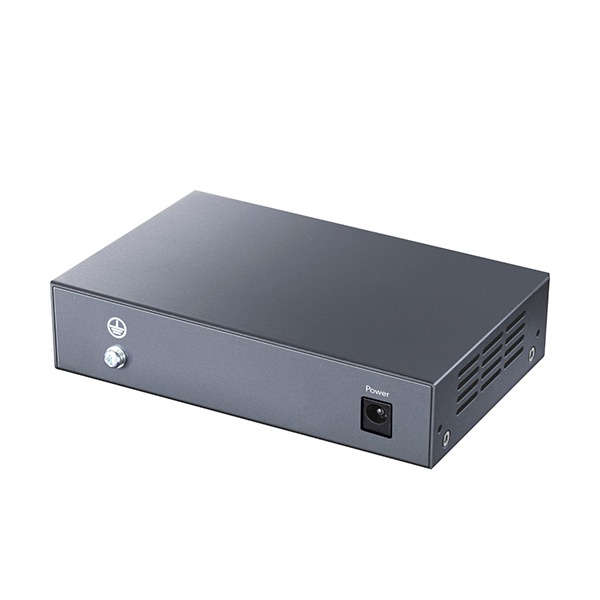

• Grounding Methods: Grounding Point

Certifications

• FCC

• CE

Mechanical / Installation

• Installation: Desktop / Wall-mount

• Casing Material: Metal

• Dimensions: 119 × 85 × 28 mm (4.69 × 3.35 × 1.1 inches)

• Product Weight: 273 g (9.63 oz)

Package Content

• R700 Device

• Power Adapter

• Ethernet Cable

• Installation Guide

Ordering Information

• Retail Package Dimension: 178 × 123 × 63 mm (7.01 × 4.84 × 2.48 inches)

• Retail Package Weight: EU: 495 g (17.46 oz), US: 491 g (17.32 oz)

• Units per Carton: 20

• Carton Net Weight: EU: 9.9 kg (21.83 lbs), US: 9.8 kg (21.61 lbs)

• Carton Gross Weight: EU: 10.5 kg (23.15 lbs), US: 10.4 kg (22.93 lbs)

• Carton Dimension: 35.2 × 31 × 27.3 cm (13.86 × 12.2 × 10.75 inches)

Software Specs

WAN & Multi-WAN

• WAN Mode: DHCP, Static IP, PPPOE

• Multi-WAN: Up to 4× WAN Ports

• Load Balancing: Online Detection, Weighted Diversion, Reply to Origin

• Max Concurrent Sessions: 25,000

Network & Routing

• QoS: Rate Limiting

• DHCP: Address Reservation, DHCP Client List, Server

• IP Versions: IPv4/IPv6

• IPv6 Protocols: Relay, Dynamic (SLAAC/DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite

• TTL Customization: Extend, Spoof, Custom

• IGMP: IGMP Proxy, IGMP Snooping

• Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ

Firewall & Security

• SPI Firewall

• DoS Protection

• Block PING

• Application Layer Gateway: IPSec, L2TP, PPTP, FTP, TFTP, H323, SIP, RTSP Passthrough

VPN

• VPN Server: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP

• VPN Client: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP

• VPN Performance:

  • OpenVPN Client (UL/DL): 22 / 24.7 Mbps

  • OpenVPN Server (UL/DL): 22 / 20.9 Mbps

  • WireGuard Client (UL/DL): 142 / 233.9 Mbps

  • WireGuard Server (UL/DL): 213 / 152 Mbps

• Max Concurrent VPN Tunnels: IPSec: 20, PPTP/L2TP: 16, OpenVPN: 16

DNS & USB Functions

• DNS Options: DNS over TLS, Manual DNS, Rebind Protection, Override Clients’ DNS

• DNS over TLS Providers: Cloudflare, Google, Quad9, Custom

• USB Functions: Samba Server

Management & Utilities

• Wake on LAN: True

• Online Detection: True

• All Devices Management: Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding

• Per-Device Management: Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename

• Content Management: Domain Filter, IP Filter

System & Control

• Local Control Method: Config Web Page

• Remote Control Method: Config Page via HTTPS, TR069/TR098/TR111/TR143/TR181

• Firmware Upgrade: Local Update

• Reliability: Timed Reboot, Backup and Restore

• Diagnostic Tools: Diagnosis, Ping, Traceroute, NSLookup, System Log

Dashboard & Monitoring

• Panel: Internet Status, Mesh Status, Devices Management, WAN Status, LAN Status, WISP Status, Wi-Fi Status, VPN Status, DHCP Server Status, System Version

• Charts: Mesh Topology, Internet Speed, WISP Speed, Wi-Fi Speed

General Features

• Multi-Band Backhaul: True

• Internet Failover Sequence: WAN → WISP

Languages Supported

English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese
