Description
Device Interfaces

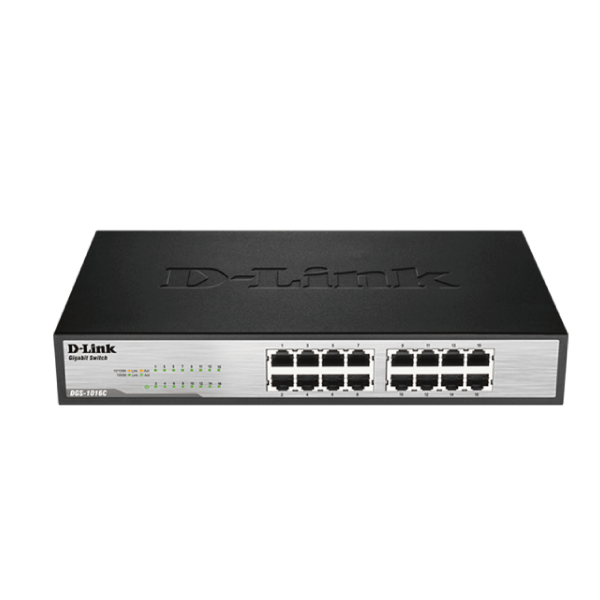

• 16 x 10/100/1000 Mbps LAN ports
Standards
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1p QoS
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
Switching Capacity
• 32 Gbps
Advanced Features
• Auto-MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• Supports 9,216 bytes jumbo frames
• Back pressure at half-duplex operation
• Wire-speed reception and transmission
• Auto-negotiation for each port
• Quality of Service (8 queues, strict mode)
Data Transfer Rates
• Ethernet:
• 10 Mbps (half-duplex)
• 20 Mbps (full-duplex)
• Fast Ethernet:
• 100 Mbps (half-duplex)
• 200 Mbps (full-duplex)
• Gigabit Ethernet
• 2000 Mbps (full-duplex)
Transmission Method
• Store-and-forward
MAC Address Table Size
• 8,000 entries
Packet Filtering/Forwarding Rates
• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer
• 512 KB per device
LED Indicators
• Per port: Link/Activity/Speed
• Per device: Power
Media Interface Exchange
• Auto-MDI/MDIX adjustment for all ports • Auto-MDI/MDIX adjustment for all ports
Dimensions
• 280 x 126 x 44 mm (11.02 x 4.96 x 1.73 in)
Weight
• 0.87 kg (1.92 lbs) • 1.35 kg (2.98 lbs)

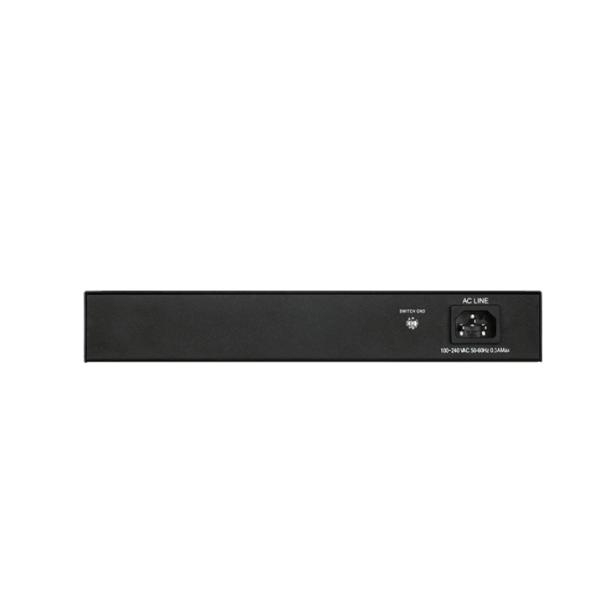

Power Input
• 12 V / 1 A • 100 to 240 V AC
Power Consumption
• Standby: 4.1 W
• Maximum: 11.7 W
Temperature
• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -40 to 70 °C (-40 to 158 °F)
Humidity
• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing
MTBF
• 305,171 hours
Maximum Heat Dissipation
• 39.92 BTU/h • 52.54 BTU/h
Emissions (EMI)
• CE Class A
• FCC Class A
• VCCI Class A
• BSMI
• CCC
Safety
• UL
• CB
• LVD
• BSMI
• CCC
