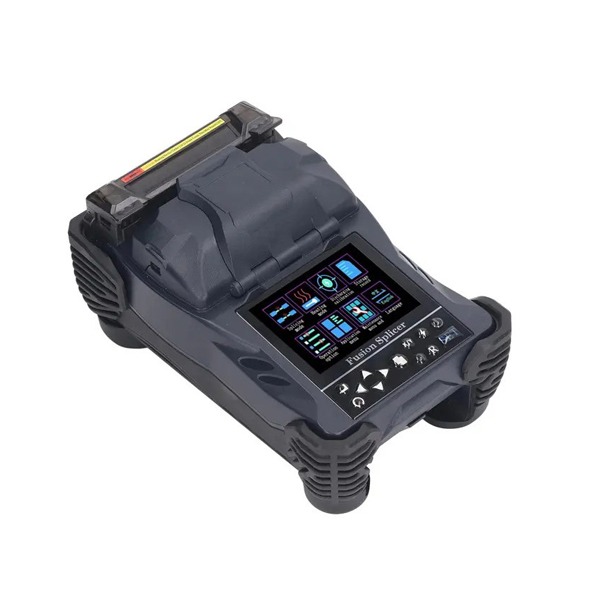

Fully automatic mini optical-fibre fusion splicer (model A-87S) with 4-motor cladding alignment and a 3.5 in colour LCD. It splices SM, MM, DS and NZDS fibres with around 0.02 dB loss (SM) in a 9 s typical splice and 26 s heat cycle, running on a 4800 mAh battery with a spare included. It offers 400x X/Y magnification, 17 fusion and 9 heating modes, a 5000-result memory and USB updates, and accepts 0.25-3.0 mm fibre with 60/40 mm heat-shrink sleeves.
| Device Type | Optical fiber fusion splicer |
|---|---|
| Alignment | Cladding alignment, 4-motor |
| Applicable Fiber | SM (G.652/G.657), MM (G.651), DS (G.653), NZDS (G.655) |
| Splice Loss | 0.02 dB (SM), 0.01 dB (MM) |
| Splice Time | 9 s typical (7 s fast mode) |
| Heating Time | 26 s |
| Display | 3.5 in TFT colour LCD |
| Battery | 4800 mAh (spare included) |
| Weight | 1.5 kg |
| Brand |
