Description
Features
- Automatic Interface Detection
- Ergonomic Design
- Extended Depth of Field
DIMENSIONS
- Overall Dimensions
- 2.3 x 6.6 x 2.9 in
- 6 x 16.8 x 7.4 cm
SCANNING SPECIFICATIONS
- Skew
- 60
- Decode Capability
- 1D
- Scanning Range
- Standard range (SR)
- Print Contrast
- 20
- Depth of Field
- 0 – 17.6 in
- Scan Pattern
- Single Scan Line
- Brightness
- 0 – 75000 lux
- Pitch
- 60
NETWORK
- Bluetooth Specifications
- N/A
- Bluetooth
- No
HARDWARE
- Host System Interface
- KBW
- RS-232
- RS-232C
- RS-485
- USB
- Engine Type
- 1D Laser
- Wireless
- No
ELECTRICAL
- Standby Power
- 0.43
ENVIRONMENTAL
- Storage Temperature Range
- – 20 – 60 °C
- – 4 – 140 °F
- Operating Humidity
- 5 – 95 %
STANDARDS & APPROVALS
- Drop Specifications
- 30 1.5 m (5 ft) drops to concrete
- Protection Ratings
- IP41
OTHERS
- Form Factor

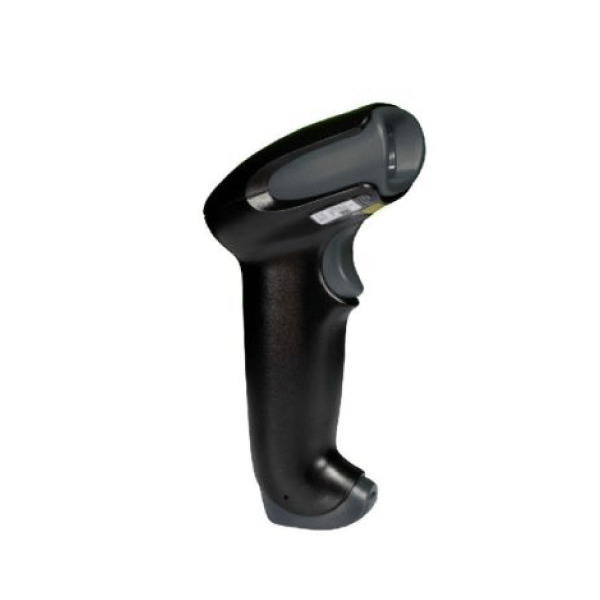

- Gun Shape
- Operating Power
- 0.7 W
- Input voltage
- 5 V DC
- Operating temperature
- 0 – 40 °C
- 32 – 104 °F
- Warranty Duration
- 5 yr
- Brand
- Honeywell
- Power Connector Type

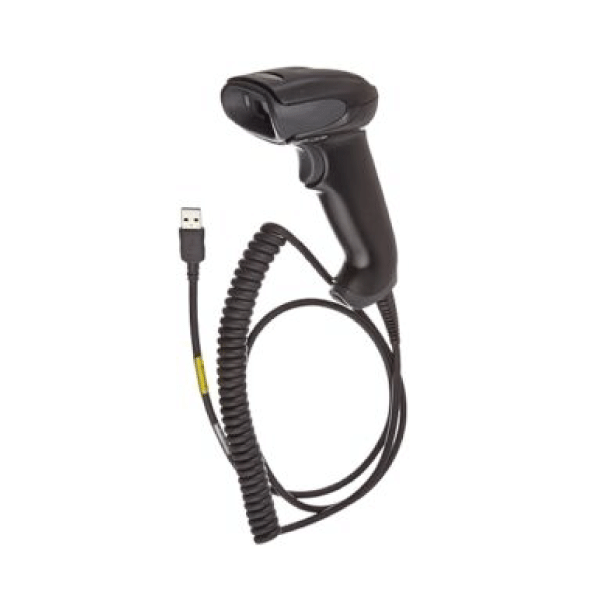

- Corded
