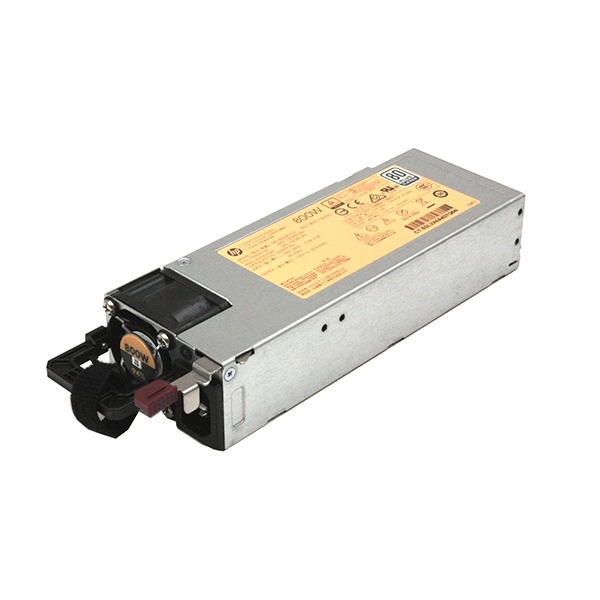

HP 720479-B21 754381-001 GEN9 800W FLEX SLOT HOT-PLUG Power Supply

Description

Power & Efficiency

• Total Output: 800 W (915 VA)

• Efficiency Rating: 80 PLUS Platinum, up to 94% efficient

• AC Input Range: 100–240 V ~, 50–60 Hz; max current 9.4 A @ 100 V, 4.5 A @ 240 V

• DC Output: +12 V @ up to ~66.7 A

Form Factor & Compatibility

• Form Factor: Flex Slot hot-swappable module, 1U height

• Dimensions: ~68 × 39 × 182–184 mm

• Cooling: Integrated internal fan for hot-plug operation

Supported Server Models

Compatible with Gen9 and later HPE ProLiant servers and storage arrays, including:

• Server Models: DL360/380/388 Gen9, ML150/350 Gen9

• Other Platforms: Gen10 servers (DL360/380/etc.), Apollo systems, StoreEasy, StoreOnce, 3PAR systems

Reliability & Safety

• Hot-Plug Ready: Tool-less swapping without system downtime

• Certifications: UL, TUV, CE, FCC, C-Tick, KCC, BSMI, CCC, RoHS compliant

• Operating Humidity: 5–95% non-condensing

• Operating Temperature: 5–55 °C

Part Numbers & Replacements

• Option Part #: 720479‑B21

• Spare Part #: 754381‑001

• Assembly Codes: 723599‑001, 723600‑101, 723600‑201

• Alternate Model: HSTNS‑PL41, DPS‑800AB‑11A
