Description

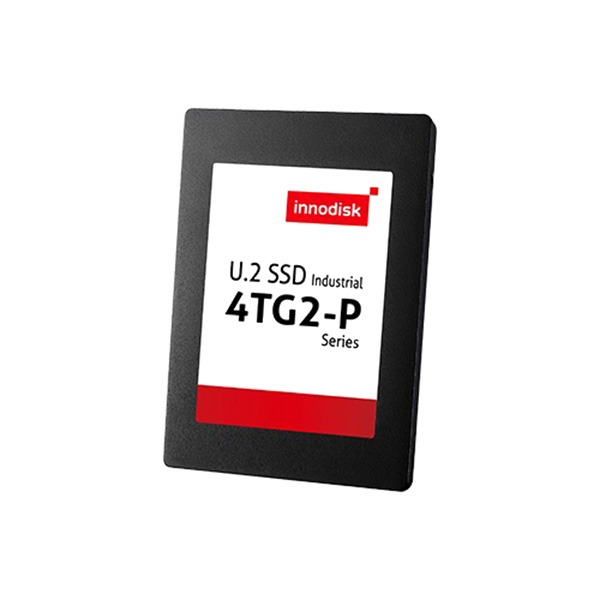

U.2 SSD 4TG2-P Highlights
-
Interface: PCIe Gen 4 x4, NVMe 1.4
-
Performance: Stable sustained performance, ultra-speed
-
Reliability: LDPC ECC engine, dynamic thermal management
-
Capacity: High capacity options (512GB ~ 16TB)
Technical Specifications
| Feature | Specification |
|---|---|
| Model Name | U.2 SSD 4TG2-P |
| Flash Type | 3D TLC |
| Interface | PCIe Gen 4 x4 |
| Form Factor | U.2 SSD |
| Capacity | 512GB ~ 16TB |
| Sequential Read / Write (Max) | 6,950 / 4,950 MB/s |
| P/E Cycle | 3,000 |
| TBW (Max) | 39,011 |
| Storage Temperature | -40°C ~ 85°C |
| Max Power Consumption | 13.5W |
| Max Channels | 8 |
| External DRAM Buffer | Yes |
| H/W Write Protect | No |
| S.M.A.R.T | Yes |
| AES Encryption | Yes (Optional) |
| TCG Opal | Yes (Optional) |
| Dimensions (W x L x H) | 69.85 x 100.0 x 6.9 mm |
| Vibration Resistance | 20G@[7 ~ 2000Hz] |
| Shock Resistance | 1500G@0.5ms |
| MTBF | >3 million hours |
