Description

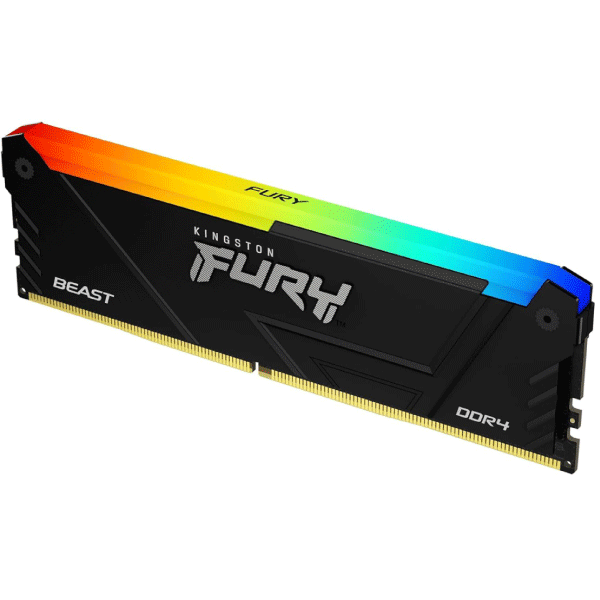

Kingston FURY KF432C16BB12A/16 is a 2G x 64-bit (16GB)
DDR4-3200 CL16 SDRAM (Synchronous DRAM) 2Rx8, memory
module, based on sixteen 1G x 8-bit FBGA components per module.
Each module kit supports Intel® Extreme Memory Profiles
(Intel® XMP) 2.0. Each module has been tested to run at
DDR4-3200 at a low latency timing of 16-18-18 at 1.35V. The
SPDs are programmed to JEDEC standard latency
DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM
uses gold contact fingers
CL(IDD) 17 cycles
Row Cycle Time (tRCmin) 45.75ns(min.)
Refresh to Active/Refresh
Command Time (tRFCmin) 350ns(min.)
Row Active Time (tRASmin) 32ns(min.)
UL Rating 94 V – 0
Operating Temperature 0o C to +70o C
Storage Temperature -40o C to +85o C
