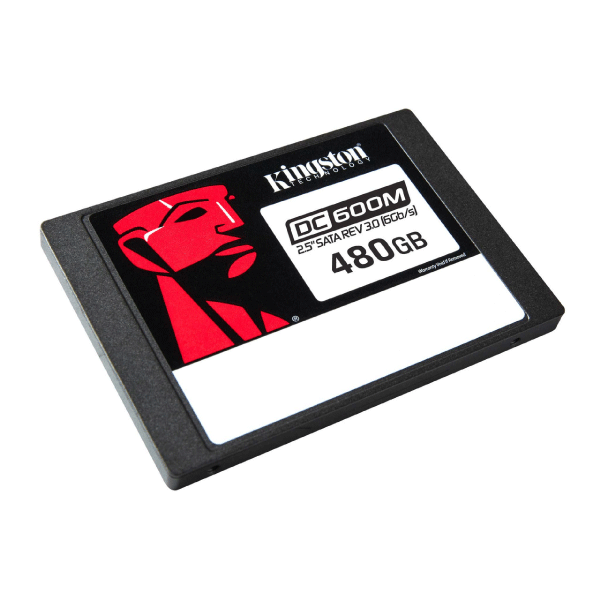

Description
| Form factor | 2.5 inch |
| Interface | SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s) |
| Capacities1 | 480GB, 960GB, 1920GB, 3840GB, 7680GB |
| NAND | 3D TLC |
| Sequential Read/Write | 480GB – 560MBs/470MBs |
| Steady-state 4k random read/write | 480GB – 94,000/41,000 IOPS |
| Quality of service (latency)3,4,5(99.999) | Read/Write 480GB – 180/110 uSec |
| Typical latency – read/write | <200 µs / <30 us3,4,5 |
| Hot-plug capable | Static and dynamic wear levelling |
| Enterprise SMART tools | Reliability tracking, usage statistics, life remaining, wear levelling, temperature |
| Hardware-based power loss protection Endurance6 | 480GB 1 DWPD (5 years), 1.66 DWPD (3 years) |
| Power consumption | Idle: 1.30W Average: 1.45W Max read: 1.6W Max write: 3.6W |
| Storage temperature | -40℃ ~ 85℃ |
| Operating temperature | 0℃ ~ 70℃ |
| Dimensions | 69.9mm x 100mm x 7mm |
| Weight | 92.34g |
| Vibration operating | 2.17G Peak (7–800Hz) |
| Vibration non-operating | 20G peak (10–2000Hz) |
| MTBF | 2 million hours |
| UBER | ≤10 -17 |
| Warranty/support | 1 Year |
