Description
Specs and Compatibility
Dimensions
-
Height: 159 mm
-
Width: 12 mm
-
Depth: 8 mm
-
Weight: 20 g
Technical Specifications
-
Protection: 4 ft (1.2 m) drop
-
Power and Connectivity
- Lithium battery
- Up to 7 hours of active writing time
- To turn on, slide the button down towards tip
- After 5 seconds, lights turn off
- When idle, the LED lights will turn on briefly to show battery life when it detects movement, transitioning from idle to active writing mode
- Battery life indicator
- Battery > 66%, 3 green LED
- Battery > 33%, 2 green LED
- Battery >15%, 1 green LED
- Battery <15%, 1 red blinking LED

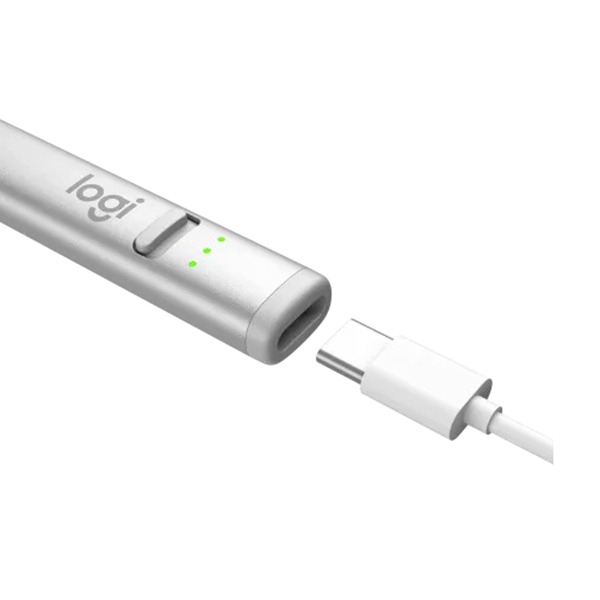

- Charge via iPad USB-C cable
- After 5 minutes of inactivity, Crayon will switch to idle mode
- To turn off, slide button up towards charging port
- To charge
- Charge to 33%, 3 LED blink continuously
- Charge to 66%, 1 LED is solid green, 2 LED blink continuously
- Charge to 99%, 2 LED are solid green, 1 LED blink
- Charge to 100%, 3 solid green LED
-
Tip
- Replaceable (purchased separately)
- Tilt sensitivity for dynamic line weight
- Palm rejection technology ignores stray touches
-
Materials
- Tube: Aluminum
- Tip cover: PC+ABS
