Logitech Tap Scheduler For Meeting Rooms Graphite

• Graphite : 952-000091
• White : 952-000094

Device-only

• Height: 165 mm
• Width: 246.2 mm
• Depth: 28.5 mm
• Weight: 0.7 kg

Surface-mounted

• Height: 165 mm
• Width: 246.2 mm
• Depth: 31.4 mm

Mullion-mounted

• Height: 165 mm
• Width: 292.6 mm
• Depth: 44.5 mm

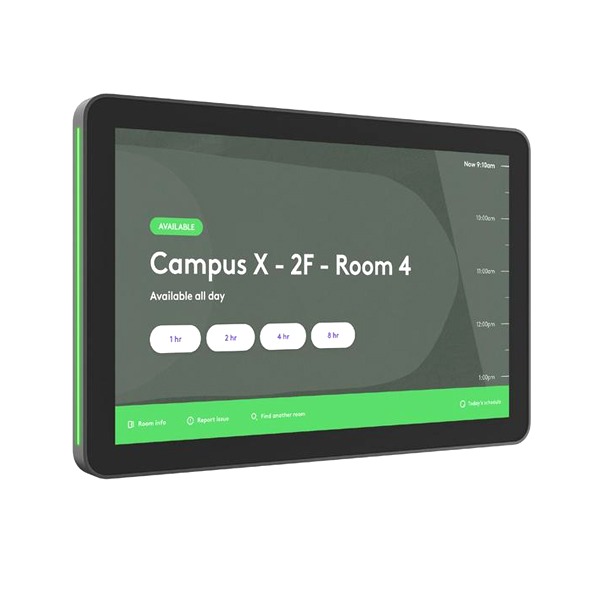

Screen

• Size: 10.1” diagonal
• IPS (In-Plane Switching)
• LCD Panel with LED Backlighting
• Resolution: 1280 x 800 resolution
• Touch: Capacitive, 10 points multi-touch
• Brightness: 400 nits
• Contrast: 1000:1
• Anti Fingerprint: Oleophobic coating
• Viewing angle: 85 degrees (U/D/L/R)
• Position angle: 0 degrees (flat on mounting surface)

General Specifications

• Integrated accelerometer
• Integrated ambient light sensor
• 100 mm x 100 mm VESA FDMI
• Cable exits: horizontal / vertical / center

COMPATIBILITY AND CERTIFICATIONS

• Logitech Tap Scheduler integrates with leading room scheduling solutions as a
  • Logitech Room Booking
  • Microsoft Teams Panel
  • Zoom Rooms Scheduling Display
  • Robin-Powered scheduling panel
  • Appspace
  • RICOH Spaces
  • Envoy Rooms
  • Korbyt Booking
  • Comeen
• See www.logitech.com/support/tapscheduler-compatibility for the latest certification and compatibility information.
• Logitech CollabOS platform
• Logitech Sync Remote Management

Power and Cables

• Power over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device.
• *Requires PoE enabled network or PoE Injector and ethernet cable (Not included)

PORTS AND INTERFACES

• Ethernet: 10/100 Mbps
• WiFi: 802.11a/b/g/n/ac/ax
• Bluetooth 5.0 (inactive, reserved for future use)

Environmental

• Operating temperature: 0 to 40°C
• Storage temperature: -40 to 70°C
• Humidity: 10-95%

Security

• Full Disk Encryption: AES-128
• Data Encryption: Symmetric Keys, PKI
• Device Identity: Protected by device attestation
• Key Protection: Arm TrustZone

Sustainability

• Graphite plastics: 54% post-consumer recycled material
