Description

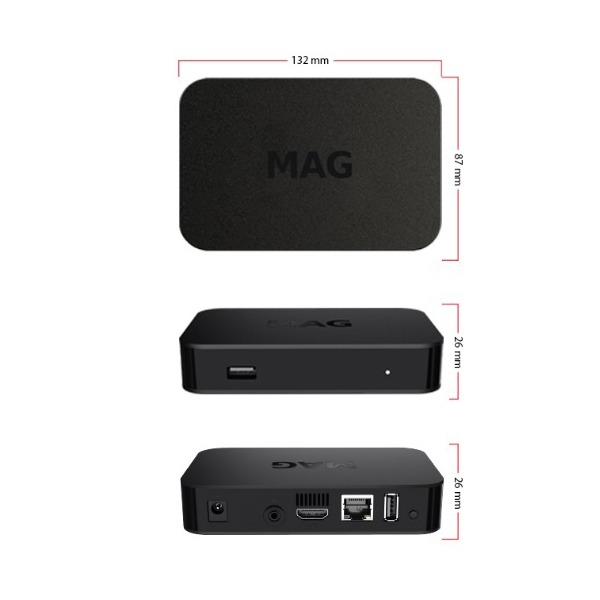

Dimensions
| Width/depth/height, mm | 132x87x26 |
| Weight, g | 144 |
Hardware
| Chipset | BCM75839 |
| Processor | MIPS 4KE Dual Core CPU 750Mhz |
| Performance | 2000 DMIPS |
| RAM | 512 MB |
| Flash memory | 512 MB |
Software
| Operating system | Linux 3.3 |
| Built-in Media Portal with WebKit-based IPTV-functionality, HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK | |
| Middleware supported | Ministra TV platform version 5.2.0 or higher |
Interfaces
| Audio output S/PDIF (optional), HDMI 1.4-output, Composite + stereo A/V output, Ethernet 100 Mb/s, USB 2.0ั 2, Wi-Fi b/g/n 1×1 |

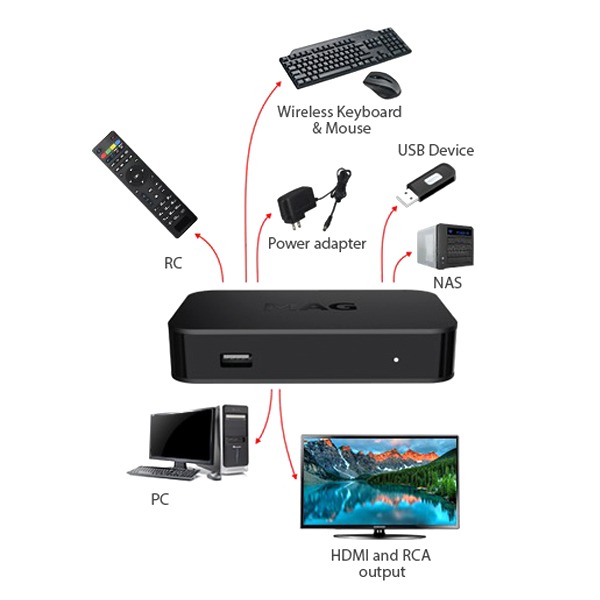

Sources of media content
| PC and NAS in local network, Stream media protocols (RTSP,RTP, UDP, IGMP, HTTP), USB-devices |
Audio & video
| Audio ัodecs | MPEG-1 layer I/II/III, AAC-LC, HE-AAC v1, HE-AAC v2, Dolby Digital |
| Audio formats | MP3, MPA, M4A, Ogg, WAV |
| Video modes | 1080i, 1080p, 720p, 576p, PAL, NTSC |
| Video ัodecs | MPEG-1/2, MPEG-4, H.264/AVC HP@L4.2, H.265/HEVC Main/Main10 @L4.1 up to 1080p at 60 fps (optional), XviD |
| Video containers | MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT |
| Image formats | JPEG, PNG, BMP |
| Subtitles | DVB, PGS, SRT, ASS, SUB |
| Playlist formats | M3U |
Standard set
| MAG322w1 Set-Top Box, User Manual, HDMI cable, Power adapter 12V 1A, Remote control, 2 AAA batteries, Packaging |
Modified versions
| MAG322w1 (Wi-Fi 802.11 b/g/n) |
