Description

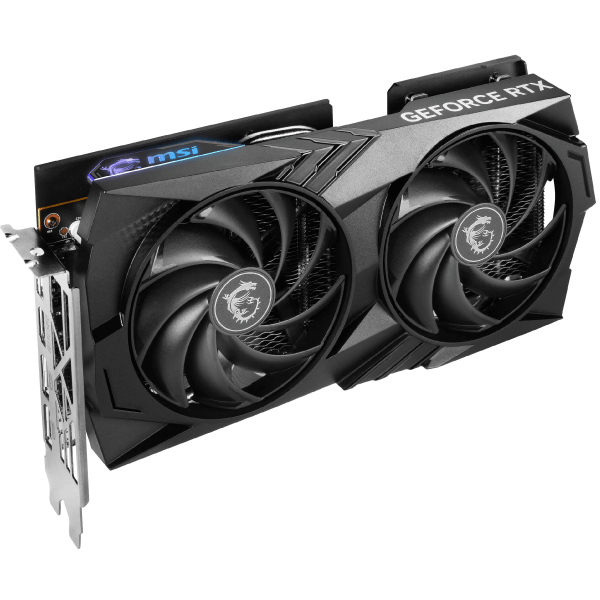

Model Name GeForce RTX™ 4060 GAMING X 8G
Graphics Processing Unit NVIDIA®
GeForce RTX™ 4060
Interface PCI Express®
Gen 4 x 8
Core Clocks Extreme Performance: 2610MHz (MSI Center)
Boost: 2595 MHz
CUDA®
CORES 3072 Units
Memory Speed 17 Gbps
Memory 8GB GDDR6
Memory Bus 128-bit
Output
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR and
8K@60Hz HDR and Variable Refresh Rate
(VRR) as specified in HDMI™ 2.1a)
HDCP Support Y
Power consumption 115 W
Power connectors 8-pin x 1
Recommended PSU 550 W
Card Dimension (mm) 247 x 130 x 41 mm
Weight (Card / Package) 587 g / 1000 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC®
technology Y
Digital Maximum Resolution 7680 x 4320
