Description
Chipset
-
Intel® Z890 Chipset
CPU Support
-
Supports Intel® Core™ Ultra Processors (Series 2)
-
Socket: LGA 1851
Memory
-
4 x DDR5 UDIMM slots
-
Maximum Capacity: 256GB
-
Supported JEDEC Speeds: 6400 – 4800 MT/s
-
Supported OC Speeds: Up to 9200+ MT/s
Overclocking Scenarios:
-
1DPC 1R: up to 9200+ MT/s
-
1DPC 2R: up to 7200+ MT/s
-
2DPC 1R: up to 6400+ MT/s
-
2DPC 2R: up to 5600+ MT/s
Features:
-
Dual-Channel
-
Intel® XMP 3.0 Support
-
Intel® POR Speed Support
-
Supports CUDIMM, Non-ECC, Un-buffered
-
Dual-Controller Dual-Channel Architecture
DIMM slots use single-sided latches. Memory speeds and compatibility depend on CPU and RAM configuration. Refer to MSI Memory QVL.
Integrated Graphics
-
1 x HDMI™ 2.1 (FRL) – Max. 8K @ 60Hz
-
2 x Thunderbolt™ 4 (USB Type-C) with DisplayPort 2.1 (UHBR20) – Max. 8K @ 60Hz or 4K @ 120Hz
Available only when using a CPU with integrated graphics.
Expansion Slots
-
3 x PCIe x16:
-
PCI_E1 (CPU): PCIe 5.0 x16 (supports x8/x8 or x8/x4/x4 via BIOS)
-
PCI_E2 (CPU): PCIe 5.0 x8 (adjustable via BIOS)
-
PCI_E3 (Chipset): PCIe 4.0 x4
-
PCI_E1 runs at x8 when PCI_E2 is populated. Installing PCIe Gen5 M.2 in M2_4 reduces PCI_E1 and PCI_E2 bandwidth.
Audio
-
Realtek® ALC4082 Codec + ESS9219Q DAC
-
High-Performance 7.1-Channel USB Audio
-
Supports S/PDIF output
-
Up to 32-bit / 384 kHz playback (front panel)
Storage
-
M.2 Slots (5 Total):
-
M.2_1 (CPU): PCIe 5.0 x4 – 2280/2260
-
M.2_2 (CPU): PCIe 4.0 x4 – 2280/2260
-
M.2_3 (Chipset): PCIe 4.0 x4 – 2280/2260
-
M.2_4 (CPU+Chipset): PCIe 5.0 x4 + PCIe 4.0 x4 – 22110/2280/2260
-
M.2_5 (Chipset): PCIe 4.0 x4 or SATA – 22110/2280
-
-
SATA: 4 x SATA 6Gb/s ports
-
RAID:
-
SATA RAID 0/1/5/10
-
NVMe RAID 0/1/5/10
-
M.2_4 defaults to chipset PCIe but can be switched to CPU PCIe 5.0 via BIOS. M.2_4 and M.2_5 cannot use 22110 at the same time.
Thunderbolt Support
-
2 x Thunderbolt™ 4 ports (Rear)
-
40Gbps with Thunderbolt devices
-
20Gbps with USB4 devices
-
10Gbps with USB 3.2 devices
-
Up to 5V/3A, 15W charging
-
Supports daisy-chaining (3x Thunderbolt 4 or 5x Thunderbolt 3 devices)
-
Display output up to 8K
-
USB Ports
Front Panel:
-
4 x USB 2.0
-
4 x USB 5Gbps Type-A
-
1 x USB 20Gbps Type-C
Rear Panel:
-
11 x USB 10Gbps Type-A
-
2 x USB 10Gbps Type-C
USB PD 60W fast charging on JUSBC1 requires PD_PWR1 connected to PSU.
LAN
-
1 x Marvell® AQC113CS 10Gbps LAN
Wireless LAN & Bluetooth
-
Intel® Killer™ BE1750x Wi-Fi 7
-
MU-MIMO TX/RX
-
2.4GHz / 5GHz / 6GHz (320MHz)
-
Up to 5.8Gbps
-
-
Bluetooth® 5.4
-
Supports MLO and 4KQAM
-
Wi-Fi 7 and Bluetooth 5.4 features are available in Windows 11 24H2. Country regulations may affect 6GHz availability.
Internal I/O Headers
-
1 x 24-pin ATX power
-
2 x 8-pin CPU power
-
1 x 8-pin PCIe power
-
1 x USB PD Quick Charge (PD_PWR1)
-
1 x CPU fan
-
2 x Pump/System fan combo headers
-
5 x System fan headers
-
1 x EZ Connect header
-
2 x Front panel headers
-
1 x Chassis intrusion
-
1 x Water flow header
-
1 x Slow mode jumper
-
1 x Front audio
-
2 x Thermal sensor connectors
-
1 x Tuning controller (JDASH)
-
3 x Addressable Gen2 RGB (JARGB_V2)
-
1 x Standard RGB header (JRGB)
-
1 x TPM 2.0 header
-
V-check point
-
4 x USB 2.0 headers
-
4 x USB 5Gbps Type-A headers
-
1 x USB 20Gbps Type-C header
LED Features
-
4 x EZ Debug LEDs
-
1 x EZ Digit Debug LED
-
1 x EZ LED Control switch

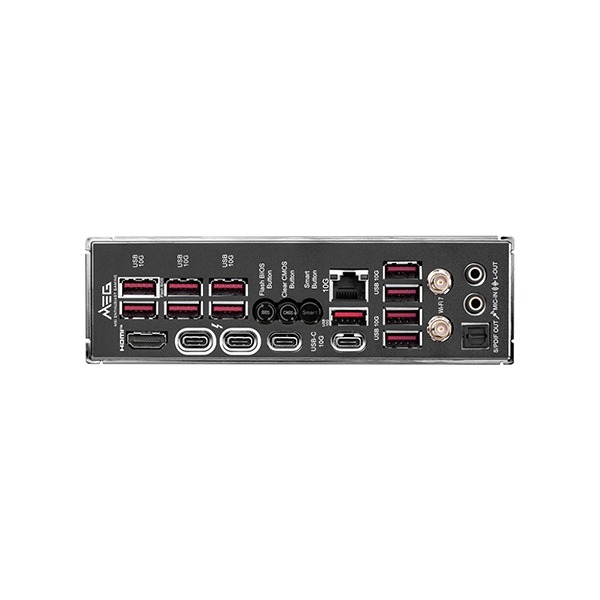

Back Panel I/O
-
USB 10Gbps Type-A ports
-
2 x Thunderbolt™ 4 (Type-C, 40Gbps)
-
USB 10Gbps Type-C
-
Optical S/PDIF Out
-
HDMI™ 2.1
-
Flash BIOS Button
-
Clear CMOS Button
-
Smart Button
-
10G LAN port
-
Wi-Fi 7 / Bluetooth Antenna connectors
-
HD Audio connectors
Operating System Support
-
Windows® 11 64-bit
