Description
GeForce RTX™ 5070 Ti 16G SHADOW 3X OC – Specifications
Marketing Name: GeForce RTX™ 5070 Ti 16G SHADOW 3X OC
Model Name: G507T-16S3C
Graphics Processing Unit: NVIDIA® GeForce RTX™ 5070 Ti
Interface: PCI Express® Gen 5
Core & Memory
-
Core Clocks:
-
Extreme Performance: 2497 MHz (via MSI Center)
-
Boost Clock: 2482 MHz
-
-
CUDA® Cores: 8960 Units
-
Memory Speed: 28 Gbps
-
Memory Size: 16GB GDDR7
-
Memory Bus: 256-bit

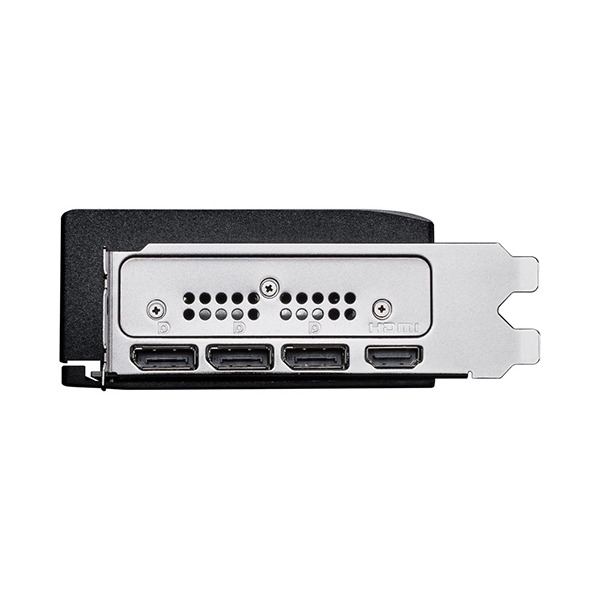

Display Outputs
-
Output Ports:
-
3 x DisplayPort (v2.1b)
-
1 x HDMI™ (2.1b – up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
-
-
HDCP Support: Yes
-
Maximum Digital Resolution: 7680 x 4320
-
Maximum Displays Supported: 4
-
G-SYNC® Technology: Yes
Power & Dimensions
-
Power Consumption: 300 W
-
Power Connectors: 1 x 16-pin (ATX 3.1 PSU recommended)
-
Recommended PSU: 750 W
-
Card Dimensions: 303 x 121 x 49 mm
-
Weight (Card / Package): 994 g / 1474 g
Software Support
-
DirectX Version: 12 Ultimate
-
OpenGL Version: 4.6
