Description
| Hardware | |
| Standards | VDSL2/ADSL2+/ADSL2/ADSL multimode VDSL/VDSL2 profiles 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a ATM and PTM supported Dual Latency IEEE 802.3/802.3u,IEEE 802.11b/g/n SIP (RFC3261) Voice Codec:G.711 a-law, G.711 u-law, G.729A, G.722, G.726, G.723.1 |

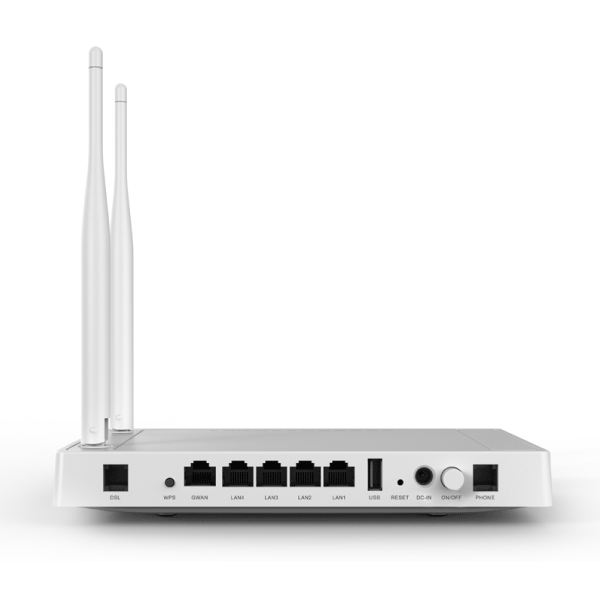

| Interface | 1 * RJ11 Port for DSL 1 * RJ11 (FXS port) for VoIP Phone calls 1 * Gigabit Ethernet port for WAN 4* 10/100Mbps Auto MDI/MDIX RJ45 LAN Port |
| LED | POWER, LAN1, LAN2, LAN3, LAN4, WLAN, WPS, DSL, GWAN ,Internet, Phone, USB |
| Power Supply | DC 12V/1A(Output) |
| Button | WPS, Reset, Power ON/OFF |
| Dimensions (L xW x H ) | 210 mm ×135mm ×31mm |
| Software | |
| DSL Version | Support VDSL2/ADSL2+/ADSL2/ADSL multimode |
| Data Rate | Downstream: Up to 100Mbps Upstream: Up to 100Mbps |
| ATM / PPP Protocol | ATM Forum UNI3.1/4.0 PVC (up to 8PVCs) ATM Adaptation Layer Type 5 (AAL5) ATM QoS Bridged and Routed Ethernet Encapsulation VC and LLC Based Multiplexing PPP over Ethernet (RFC2516) PPP over ATM (RFC 2364) IPoA (RFC1577/2225) |
| Main Feature | DHCP, DHCP Relay NAT, Static Routing VPN (PPTP, L2TP, IPsec) Pass-through PVC/Ethernet Port Mapping DNS Relay, DDNS IGMP Multicast, IGMP Snooping v1/v2 Virtual Server, DMZ, ACL (Access Control List) UPnP IPv6 |
| Management | Web Based Configuration (HTTP), Remote Management, Telnet Management, Command Line Interface, TR-069, SNMP, Web Based Firmware Upgrade, CWMP, Diagnostic Tools |
| VOIP Features | Caller ID, Call waiting, Call forwarding, VAD (Voice Activity Detection), 3-way conference calls |
| USB Features | FileSharing, 3G backup |
| Wireless Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Range | 2.4-2.4835GHz |
| Wireless Speed | Up to 300Mbps |
| Wireless Security | WEP 64/128bits, WPA(TKIP/AES)/WPA2(TKIP/AES)/WPA2 Mixed, 802.1x Authentication Wireless MAC Filtering |
| Wireless Security Power | 20dBm |
| Antenna Type | 2* 5dBi Fixed Antenna |
| Others | |
| Certification | CE, FCC |
| Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing |
| Package | 1* DL4422V 1* 12V/1A Power Adapter 2* RJ11 Telephone Cable 1* RJ45 Ethernet Cable 1* VDSL Splitter 1* Quick Installation Guide |
