Description
Specifications
Wireless
Standards
- Wi-Fi 6 (802.11ax)
- 5 GHz: IEEE 802.11ax / ac / n / a
- 2.4 GHz: IEEE 802.11b / g / n
Wi-Fi Speeds (AX3000)
- 5 GHz: Up to 2402 Mbps
- 2.4 GHz: Up to 574 Mbps
Wi-Fi Range
- Suitable for 3-bedroom houses
- 4× Fixed high-performance antennas
- Beamforming for stronger, targeted signal
- High-power FEM for enhanced coverage
- Signal-boosting antenna array for wider coverage
Wi-Fi Capacity
- Dual-Band band allocation for optimal performance
- OFDMA for simultaneous multi-device communication
- Airtime Fairness for improved network efficiency
- 4 Streams for increased bandwidth
Working Modes
- Router Mode
- Access Point Mode
Hardware
Processor
- Dual-Core 1.3 GHz
Memory
- 256 MB RAM / 128 MB Flash

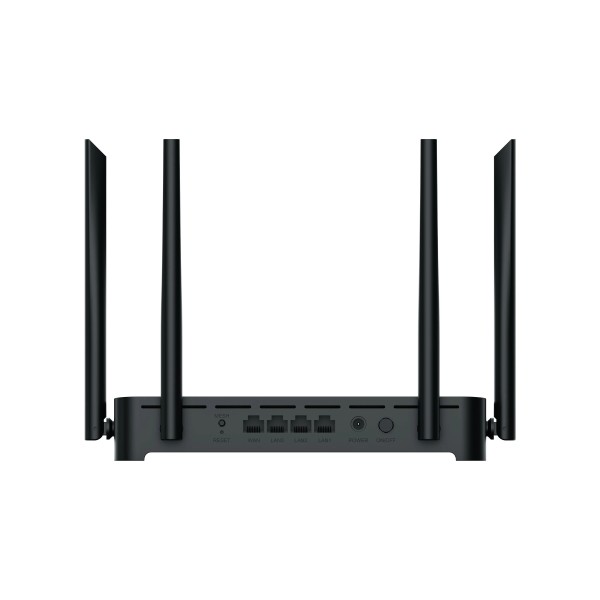

Ports
- 1× Gigabit WAN Port
- 3× Gigabit LAN Ports
Buttons
- Power
- WPS (Mesh)
- Reset
Power Supply
- DC 12V / 1A
Software
Wi-Fi Encryption
- WPA
- WPA2
- WPA/WPA2-Enterprise
- WPA3
Network Security
- Access Control
- IP & MAC Binding
- Application Layer Gateway
Guest Network
- 2× 5 GHz Guest Networks
- 2× 2.4 GHz Guest Networks
Protocols
- IPv4
- IPv6
WAN Types
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
Parental Controls
- URL Filtering
- Time Controls
Quality of Service (QoS)
- QoS by Device
IPTV
- Bridge Mode
- VLAN Tagging
NAT Forwarding
- Port Forwarding
- Port Triggering
- DMZ
- UPnP
Dynamic DNS
- DynDNS
- No-IP
Management
- Web-based Configuration (HTTP)
- Remote Management
- Telnet
- TR-069 / TR-143 / TR-181 / TR-098
- Firmware Upgrade (Web-based & FOTA)
- CWMP
- Diagnostic Tools
- Mobile App (BeeWiFi)
Additional Features
- EasyMesh Support
- Remote Access
- Backup & Restore
Physical
Package Contents
- 1× NX31 Router
- 1× Power Adapter
- 1× RJ45 Ethernet Cable
- 1× Quick Installation Guide
System Requirements
- Browser: Internet Explorer 11+, Firefox 12+, Chrome 20+, Safari 4+, or any JavaScript-enabled browser
- Active internet subscription from an ISP
Environment
Operating Temperature
- 0°C ~ 40°C
Storage Temperature
- -40°C ~ 70°C
Operating Humidity
- 10% ~ 90% (non-condensing)
Storage Humidity
- 5% ~ 90% (non-condensing)
