Description
| Wireless | |
| Standards | IEEE 802.11b/g/n/ac/ax |
| Signal Rate | Up to 574Mbps 2.4GHz UP to 1201Mbps 5GHz |
| Frequency Range | 2.4-2.4835GHz;5.180-5.825GHZ |
| Transmit Power | 20dBm(MAX) |
| Data Transfer Rate | 802.11ax:
2.4GHz, 40MHz(574Mbps) 5GHz, 80MHz 802.11ac:80MHZ(433Mbps, 867Mbps) 802.11n: 40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps) |
| Wireless Modes | AP, ARP, Multi-SSID |
| Wireless Security | WEP/WPA-PSK/WPA2-PSK Encryption/WPA3 Wireless MAC Filtering |
| Hardware | |
| Standards | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX |

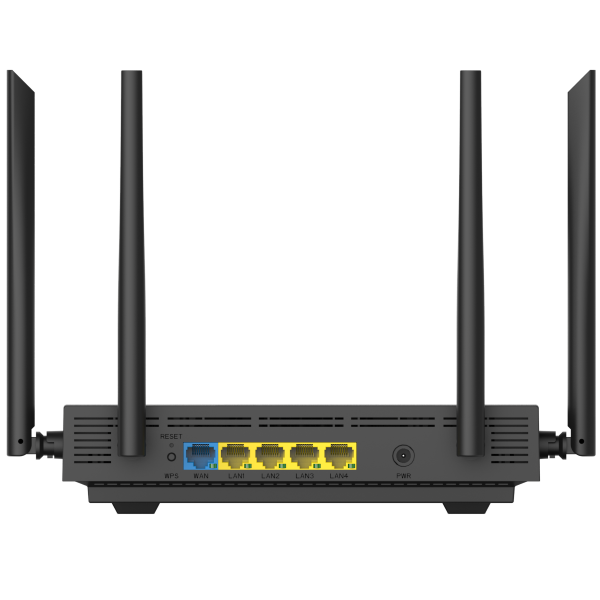

| Interface | 1*10/100/1000Mbps Auto MDI/MDIX RJ45 WAN port 4*10/100/1000Mbps Auto MDI/MDIX RJ45 LAN port |
| LED Indicators | Power,LAN1-2,WAN,WLAN2.4G,WLAN5G,WPS |
| Buttons | WPS,Reset |
| Antenna | 4* external fixed 5dBi antennas |
| Power Supply | DC 12V/1.5A(Output) |
| Dimensions (L x W x H ) | 236mm*144mm*50 mm (body) |
| Software | |
| WAN Type | DHCP, Static IP, PPPoE, L2TP, PPTP |
| Others | Bandwidth Control, Access Control, IPTV, Virtual Server, DMZ, VPN Pass-through, Dynamic DNS, Static Routing,ย Backup & Restore Support easy mesh networking |
| Certification | FCC, CE, EAC |
| Environment | Operating Temperature: 0โ~40โ Storage Temperature: -40โ~70โ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Package | 1* N6 1* 12V/1.5A Power Adapter 1* Quick Installation Guide (Multilingual) |
