Description
FEATURES AND BENEFITS
Gain of up to 30 dBi with low VSWR and high port isolation across the entire
5.9 -7.2 GHz band
One antenna that covers 6 and 7 Ghz
Reduced interference with >39 dB minimum front to back
Simplifies installation on site and guarantees “factory-tested” quality
Connector type N Female
Pigtails of N to RPSMA included in the box for free!!!
ELECTRIC SPECIFICATIONS

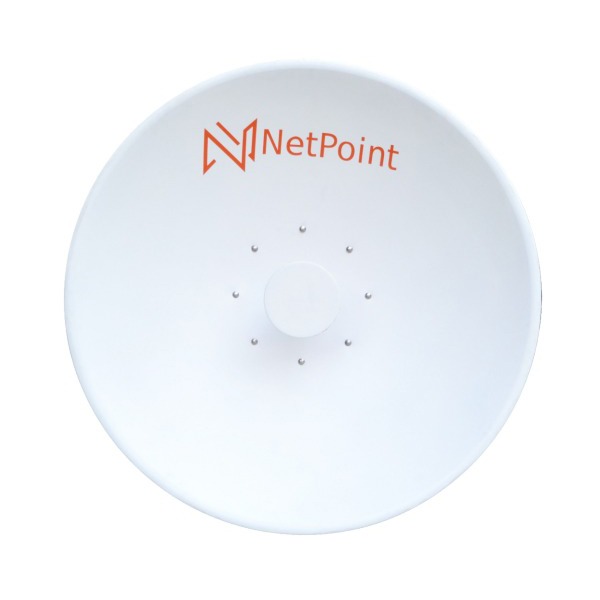

Antenna type Directional parabolic reflector
Frecuency 5.9 – 7.2 Ghz
Connector type Female N
Gain (dBi) 28, 29, 30/ 5.9GHz, 6.8GHz and 7.2GHz
VSWR HPOL <2.0
Beamwidth VPOL 4.2°
Beamwidth HPOL 4.0°
Impedance (Ohms) 50
Radius F/B (dB) >39
Polarization Dual slant 45° or 90°
MECHANICAL SPECIFICATIONS
Wind max survival speed (MPH) 124.2 miles with Radome
Azimuth adjustment +/- 60 degrees
Elevation adjustment (°) +/- 15 degrees
Mounting Pipe Diameter, Min 1 inch – 25.4mm
Mounting Pipe Diameter, Max 2.95 inch 75.00mm
Operating temperature (C°) -49 to +140 F° | -45 to +60 C°
Connector type Dual N-Female with pigtails for RP-SMA
Lenght of Pig tail 2ft – 600 mm
SHIPPING INFORMATION
Package type
Gross weight (Kg)
Dimensions, L x W x H
Shipping volume
124.2 miles with radome
+/- 60 degrees
+/- 15 degrees
1 inch - 25.4mm
2.95 inch 75.00mm
-49 to +140 F° | -45 to +60 C°
Dual N-female with cables for
RP-SMA
2ft - 600mm
Cardboard
14.3lb - 6.5kg
28.34 x 28.24 x 11.41in 72cm x 72cm x 29cm
5.29 cu ft | 0.14 cu m
