Description
FEATURES AND BENEFITS
Gain of up to 36 dBi with low VSWR and high port isolation across the entire
5.9 -7.2 GHz band
One antenna that covers 6 and 7 Ghz
Reduced interference with >60 dB minimum front to back
Simplifies installation on site and guarantees “factory-tested” quality
Connector type N Female
Pigtails of N to RPSMA included in the box for free!!!
ELECTRIC SPECIFICATIONS

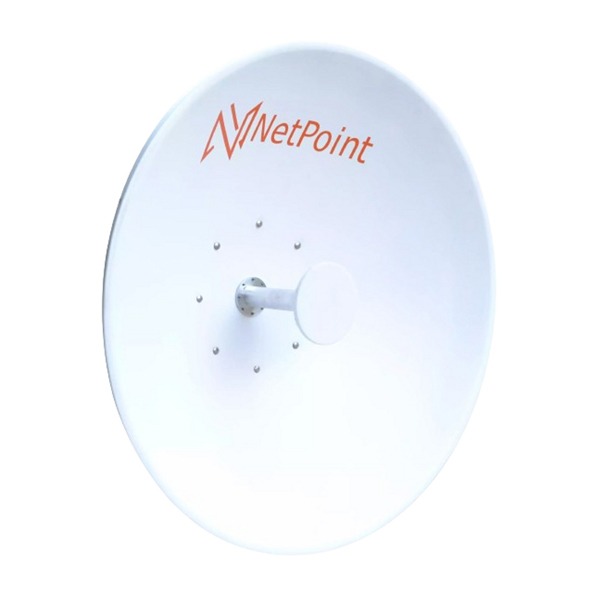

Antenna type Directional parabolic reflector
Frecuency 5.9 – 7.2 Ghz
Connector type Female N
Gain (dBi) 32, 34, 36 / 5.9GHz, 6.8GHz and 7.2GHz
VSWR HPOL <2.0
Beamwidth VPOL 2.4°
Beamwidth HPOL 2.0°
Impedance (Ohms) 50
Radius F/B (dB) >60
Polarization Dual slant 45° or 90°
MECHANICAL SPECIFICATIONS
Wind max survival speed (MPH) 124.2 miles with Radome
Azimuth adjustment +/- 60 degrees
Elevation adjustment (°) +/- 15 degrees
Mounting Pipe Diameter, Min 1 inch – 25.4mm
Mounting Pipe Diameter, Max 2.95 inch 75.00mm
Operating temperature (C°) -49 to +140 F° | -45 to +60 C°
Connector type Dual N-Female with pigtails for RP-SMA
Lenght of Pig tail 2ft – 600 mm
