Description
Dual-port, 5-speed 10 GbE network expansion card
| Dimensions (L x W x H) | 111.58 mm length × 1-slot width × Low-profile (The dimension is based on PCBA size × not including the bracket) mm |
| Controller | Intel Ethernet Controller X710 |
| Number of Ports | 2 x NBASE-T (RJ45) |
| Connector | NBASE-T (RJ45) |
| PCIe and Lanes | PCIe 3.0 x4 |
| Transmission Rates | 10Gbps/5Gbps/2.5Gbps/1Gbps/100Mbps |
| IEEE Standards | IEEE 802.1Q IEEE 802.3x IEEE 802.1p IEEE 802.3ad IEEE 802.3ae IEEE 1588 IEEE 802.1as |

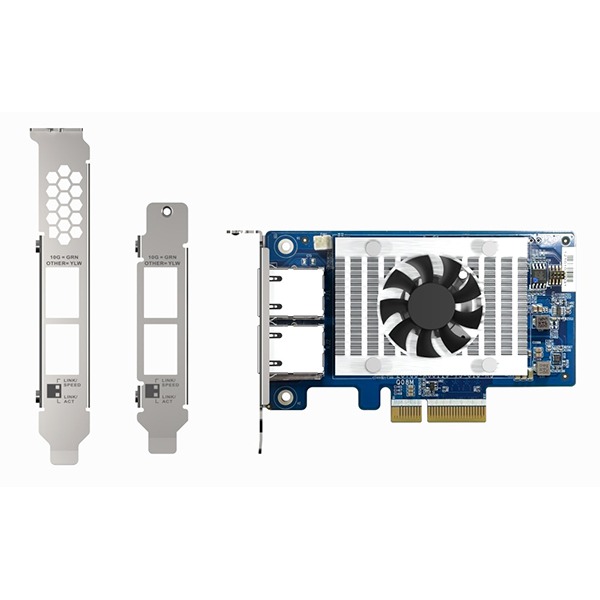

| Bracket | Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled |
| SR-IOV Support | |
| NVGRE, VXLAN, Geneve Support | |
| 1K ingress and egress QoS levels | On-chip QoS |
| How mant virtual functions | 128 (64/port) |
| Supported NAS operating systems | QTS 4.4.3 or later (recommend an upgrade to the latest version); Windows 10 (1809 or later); Linux Stable Kernel 4.20/5.x; Windows Server 2019 (Driver required) |
| Supported QNAP NAS | Models with PCIe slot(s) (1 free slot required) |
| Support Ubuntu Commercial Linux Distribution | Ubuntu 18.04/20.04 |
| Support Windows | Windows 8/10 |
| Support Windows Server | Windows Server 2016/2019 |
| Port and Cable | RJ-45; over CAT-6 class cable |
| Package Contents | 1 x Network card; 1 x QIG; 3 x Brackets |
| Standard Warranty | 3 years |
