Description

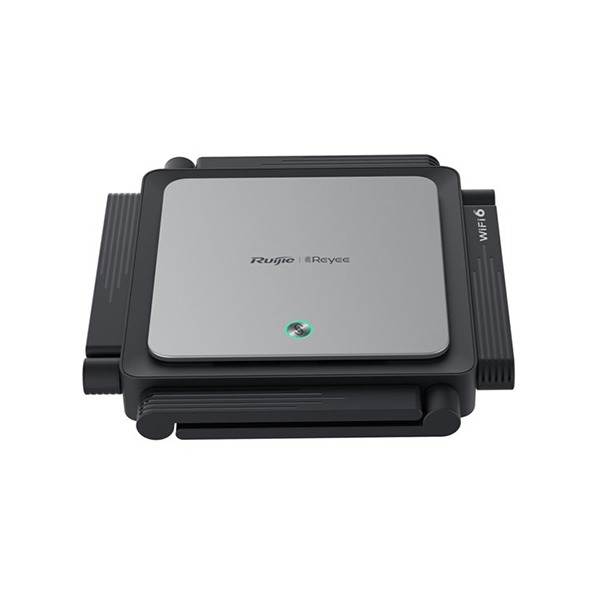

3200Mbps Wi-Fi 6 Dual-band Gigabit Mesh* Router ：
enterprise-grade chip solution;
Gigabit broadband access;
Dual-core four-thread CPU;
Support for hardware NAT;
Concurrent access up to 64 (recommended) terminals and 192
for daily using;
Wireless access: dual-band 3200Mbps, Wired access: 5 Gigabit
ports, including 1 WAN port and 4 LAN ports;
Support for 802.11ax protocol;
Exclusive Reyee Mesh technology for multi-device;
Support Seamless roaming of Wi-Fi signals
4+4 independent high-performance signal amplifiers(FEM);
Parental Control, Smart Home Wi-Fi
Management via the Ruijie Cloud App and Reyee Router App on
mobile phoned.

Hardware Specifications

Model

RG-EW3200GX PRO

Wi-Fi Radio

• Operating Bands

  • IEEE 802.11b/g/n (2.4 GHz: 2.400–2.4835 GHz)

  • IEEE 802.11a/n/ac/ax (5 GHz: 5.150–5.350 GHz)

  • IEEE 802.11a/n/ac/ax (5 GHz: 5.470–5.725 GHz)

  • IEEE 802.11a/n/ac/ax (5 GHz: 5.725–5.850 GHz)

• FEM

  • EPA

• Maximum Wi-Fi Speed

  • 2.4 GHz: 800 Mbps

  • 5 GHz: 2402 Mbps

• Maximum Transmit Power

  • 2.4 GHz

    • 802.11b: 27 dBm

    • 802.11g: 27 dBm (6 Mbps); 24 dBm (54 Mbps)

    • 802.11n: 27 dBm (MCS0); 23 dBm (MCS7)

  • 5 GHz

    • 802.11a: 25 dBm (6 Mbps); 21 dBm (54 Mbps)

    • 802.11n: 25 dBm (MCS0); 20.5 dBm (MCS7)

    • 802.11ac: 25 dBm (MCS0); 20.5 dBm (MCS9)

    • 802.11ax: 25 dBm (MCS0); 20 dBm (MCS9); 18 dBm (MCS11)

Note: Actual transmit power depends on regional regulations.

• MIMO

  • 4 × 4 (2.4 GHz)

  • 4 × 4 (5 GHz)

• Wi-Fi Standard

  • Wi-Fi 6 (802.11ax)

• Antennas

  • 8 × external antennas

  • Gain (2.4 GHz): 4.5 dBi

  • Gain (5 GHz): 5.5 dBi

Certifications

• CE

Dimensions & Weight

• Product Size (W × D × H)
  190 × 190 × 41 mm (7.48 × 7.48 × 1.6 in) — without antennas

• Weight

  • 0.8 kg (without packaging)

  • 1.6 kg (with packaging)

Environment & Reliability

• Operating Humidity: 5%–95% RH (non-condensing)

• Operating Temperature: –10°C to +45°C (14°F to 113°F)

• Storage Humidity: 5%–95% RH (non-condensing)

• Storage Temperature: –40°C to +70°C (–40°F to 158°F)

Port Specifications

• LEDs

  • 1 × system status LED

  • 1 × Mesh LED

  • 5 × Ethernet port LEDs

• LAN Ports

  • 4 × 10/100/1000BASE-T

• WAN Port

  • 1 × 10/100/1000BASE-T

Power Supply

• Input: DC 12 V, 2.5 A

Warranty

• 1 year

System Specifications

• RAM: 256 MB

Software Specifications

Basic Configurations

• LED management: Yes

• Internet access modes: PPPoE, DHCP, Static IP, WISP

• Preconfiguration: Yes

• Reset with config retention: Yes

• Restore factory defaults: Yes

• Config backup: Yes

• Local/Online upgrade: Yes

• Scheduled upgrade: No

• AP mode: Yes

Ethernet Switching

• WAN port aggregation: No

• LAN port aggregation: No

• VLAN tag assignment: Yes

IP Services

• Port mapping: Yes (50 entries)

• ARP binding: Yes (64 entries)

• DDNS: Yes

• Supported services: No-IP, Ruijie DDNS

• NAT-DMZ: Yes

UPnP

• Supported

Behavior Management

• Parental control: Yes

• Client access control (MAC/time): Yes

• Max controlled clients: 32

• Max parental control policies: 32

• Select clients from list to block: Yes

• Manual MAC control list: Yes

Ethernet Interface

• MAC cloning: Yes

• VLAN-based IPTV: Yes

Flow Control

• User-based flow control: Yes

• Standalone/shared mode: Yes

• Interface flow control: Yes

IPTV / VLAN

• Multiple IPTV ports: Yes

• IGMP proxy: Yes

• IGMP snooping: Yes

Note: Not supported by wired ports when IPTV mode is enabled.

Network Management & Monitoring

• Line detection: Yes

• Interface languages:
  Arabic, English, Chinese (Simplified/Traditional), Indonesian, Italian, Russian, Spanish (LATAM), Thai, Turkish, Vietnamese

• Ruijie Cloud management: Yes

• Scheduled device restart: Yes

• Web login password: 8–63 chars

• Wired repeater mode: Yes

• Wireless repeater mode: Yes

• WISP mode: Yes

Rate Limiting

• Client-based rate limit: Yes

Reyee Mesh 3.0

• Supported

• Auto-switch wired/wireless backhaul: Yes

• Recommended hop count: 2

Capacity

• Max devices: 32

• Max clients:

  • 2.4 GHz → 64

  • 5 GHz → 128

• Recommended clients:

  • 2.4 GHz → 12

  • 5 GHz → 48

• IPTV/IGMP client capacity: 5

• IPTV wired forwarding: 25 Mbps

• Recommended camera limit:

  • 2.4 GHz → 6

  • 5 GHz → 16

VPN

• OpenVPN

  • Concurrent tunnels: 8

  • Bandwidth: 13 Mbps

  • Client/Server: Yes

  • Username/password: Yes

  • Certificate authentication: Yes

  • Server domain config: Yes

• PPTP

  • Client: Yes

  • Server: Yes

  • Concurrent tunnels: 30

Wireless Configuration

• Guest Wi-Fi: Yes

• WLAN 1024-QAM: Yes

• DFS: Yes

• 802.11k/v roaming: Yes

• Wi-Fi blocklist: 64 entries

• SSID hiding: Yes
