Description

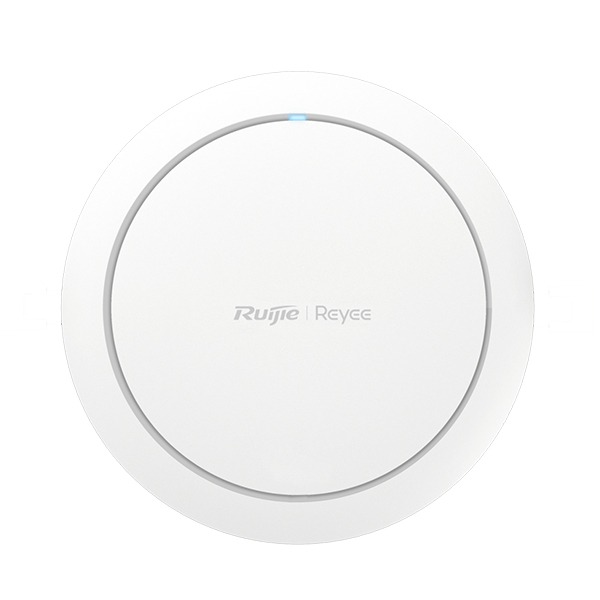

AX3000 Wi-Fi 6 dual-band Gigabit ceiling mount Indoor AP
Specifications: Built-in antennas, 2.4GHz/5GHz dual radio
802.11a/b/g/n/acWave1/Wave2/ax
Key Specifications
Product Information
Product Type
- Ceiling AP
Hardware Specifications
Wi-Fi Radio
Radio design
- Dual-radio
4 spatial streams
โ 2.4 GHz: 2 x 2, MU-MIMO
โ 5 GHz: 2 x 2, MU-MIMO
Maximum wireless data rate
- 2974 Mbps
6 GHz wireless data rate
- No
5 GHz wireless data rate
- 2401 Mbps
2.4 GHz wireless data rate
- 573 Mbps
Antenna
Antenna
- 2.4 GHz: 2 built-in omnidirectional antennas
5 GHz: 3 built-in omnidirectional antennas
Dimensions and Weight
Product dimensions (diameter x height)
- ร220 mm x 52.6 mm (ร8.66 in. x 2.07 in.) (excluding the mounting bracket)
Color
- White
Weight
- โค 0.5 kg (1.10 lbs.) (without packaging materials)
Port Specifications
Number of 10/100/1000BASE-T ports
- 1
Power Supply and Consumption
Power supply
- โ DC power adapter
โ PoE/PoE+
Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply
- Yes, one DC power connector (12 V, 2 A)
Dimensions of the DC connector
- Outer diameter: 5.5 mm (0.22 in.)
Inner diameter: 2.1 mm (0.08 in.)
Depth: 10 mm (0.39 in.)
PoE budget
- No
Maximum power consumption
- 18 W
Environment and Reliability
Operating temperature
- 0ยฐC to 40ยฐC (32ยฐF to 104ยฐF)

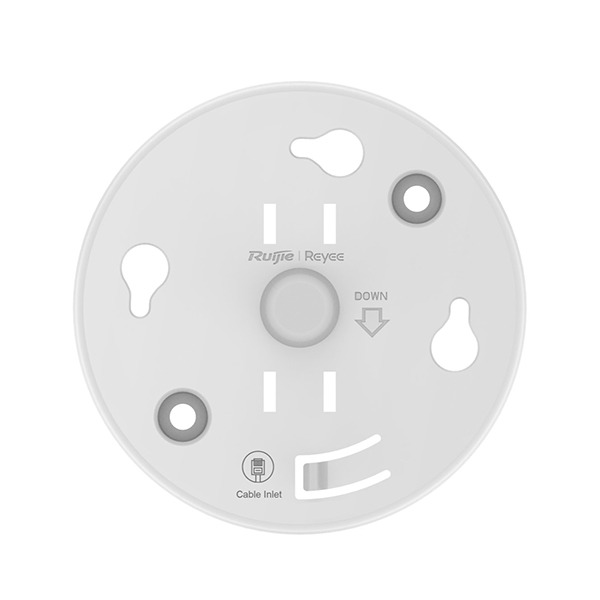

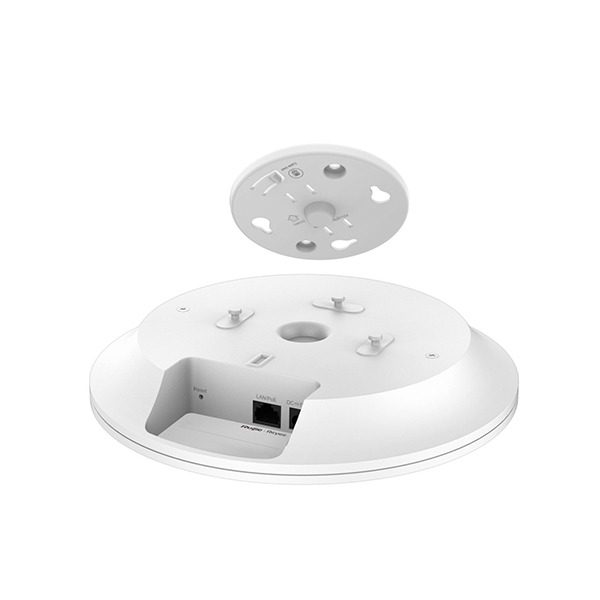

Mounting options
- Ceiling/Wall
IP rating
- IP41
Software Specifications
WLAN
Maximum number of associated wireless clients
- 64 (2.4 GHz)
512 (5 GHz)
512 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed
- 300
