Description
AX1800 Dual Band Outdoor Wi- Fi6 Access Point, IP68
waterproof, 1201Mbps at 5GHz + 574Mbps at 2.4GHz, 2
10/100/1000base-t Ethernet uplink port, Internal
omnidirectional antennas
Key Specifications
Product Information
Product Type
- Outdoor AP
Hardware Specifications
Wi-Fi Radio
Radio design
- Dual-radio
4 spatial streams
● 2.4 GHz: 2 x 2, MU-MIMO
● 5 GHz: 2 x 2, MU-MIMO
Maximum wireless data rate
- 1774 Mbps
6 GHz wireless data rate
- No
5 GHz wireless data rate
- 1201 Mbps
2.4 GHz wireless data rate
- 573 Mbps
Antenna
Antenna
- 2.4 GHz: 2 built-in omnidirectional antennas
5 GHz: 2 built-in omnidirectional antennas
Dimensions and Weight
Product dimensions (diameter x height)
- Ø200 mm x 166 mm (Ø7.87 in. x 6.54 in.) (spherical device, excluding the mounting bracket)
Color
- White
Weight
- ≤ 1.2 kg (2.65 lbs.) (without packaging materials)
Port Specifications
Number of 10/100/1000BASE-T ports
- 2
Power Supply and Consumption
Power supply
- ● DC power adapter
● PoE+
Note: If both the DC power adapter and PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply
- Yes, one DC power connector (12 V, 1.5 A)
Dimensions of the DC connector
- Outer diameter: 5.5 mm (0.22 in.)
Inner diameter: 2.1 mm (0.08 in.)
Depth: 10 mm (0.39 in.)
PoE budget
- No
Maximum power consumption
- 18 W
Environment and Reliability
Operating temperature
- –30°C to +65°C (–22°F to +149°F)

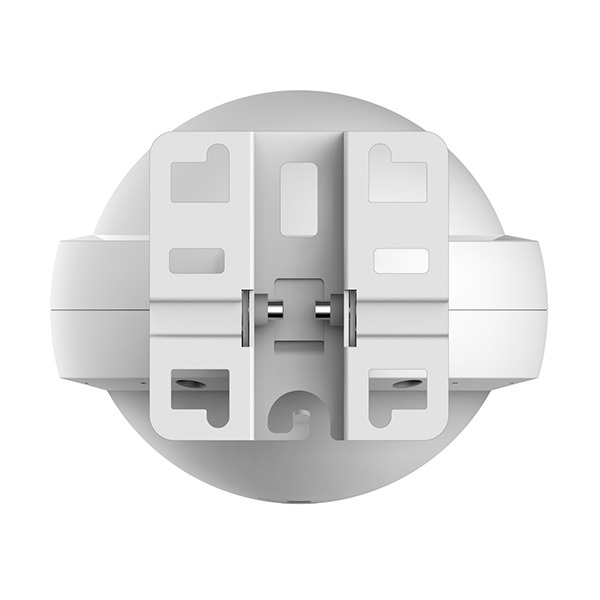

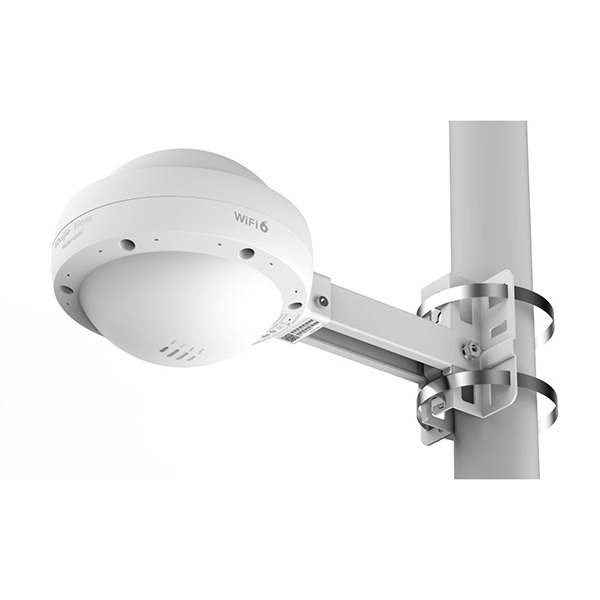

Mounting options
- Wall/Pole
IP rating
- IP68
Software Specifications
WLAN
Maximum number of associated wireless clients
- 64 (2.4 GHz)
256 (5 GHz)
256 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed
- 300
