Description
Specifications
| Details | |
|---|---|

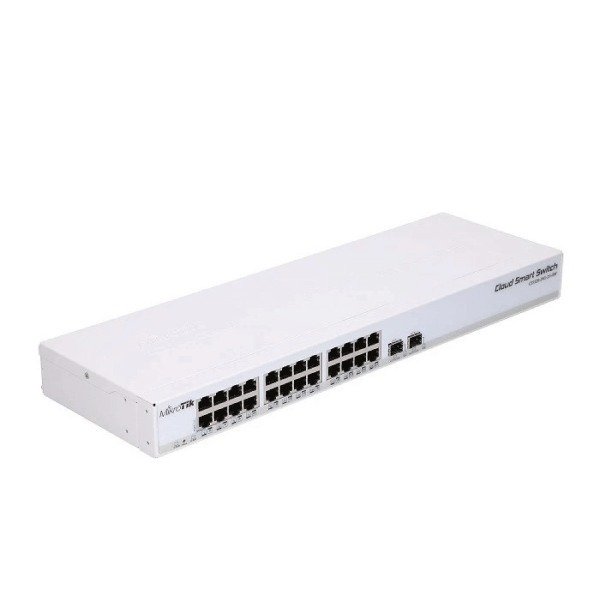

| Product code | CSS326-24G-2S+RM |
| Switch chip model | 98DX3216 |
| Dimensions | 443 x 144 x 44 mm |
| Operating System | SwOS |
| Storage size | 2 MB |
| Storage type | FLASH |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-30 V |
| Max power consumption | 19 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 24 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 2 |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
