Description
Overview
Dimensions
442 x 325 x 44 mm
(17.4 x 12.8 x 1.7″)

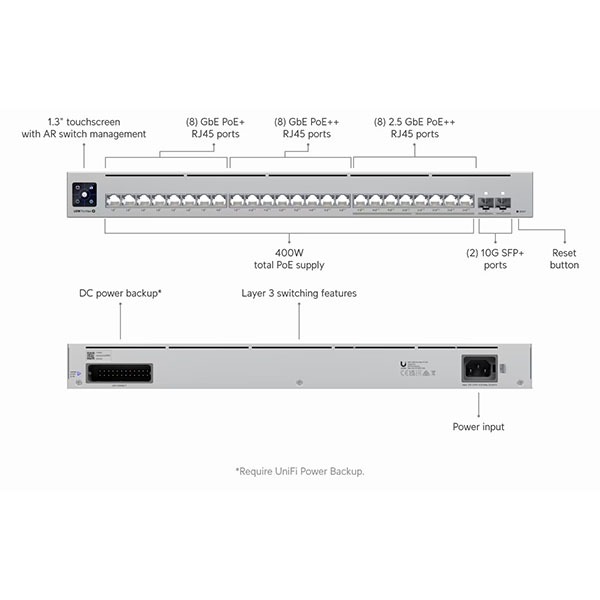

Port Layout
-
1 GbE RJ45: 16 (8 PoE+; 8 PoE++) — (1G/100M/10M)
-
2.5 GbE RJ45: 8 (All PoE++) — (2.5G/1G/100M/10M)
-
10G SFP+: 2
Max. PoE Output
Up to PoE++
Total PoE Availability
400W
Redundancy
DC Power Backup
Layer 3 Support
✓
Form Factor
Rack mount (1U)
Etherlighting™
✓
Performance
Switching Capacity
112 Gbps
Total Non-Blocking Throughput
56 Gbps
Forwarding Rate
83 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
L3 Table Size
-
ARP Entries: 6,000
Packet Buffer Size
1.5 MB
Access Lists
IPv4
128
MAC
128
Layer 3 Features
-
DHCP Server (Local Networks) ✓
-
DHCP Relay ✓
-
Inter-VLAN Routing (Local Networks) ✓
-
Static Routing (Local Networks) ✓
Layer 2 Features
-
LACP Port Aggregation ✓
-
STP & RSTP ✓
-
QoS (DSCP) ✓
-
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓
-
Advanced IGMP Configuration ✓
-
IGMP Snooping ✓
-
802.1X Control ✓
-
MAC-Based ACLs & Device Isolation ✓
-
DHCP Snooping & Guarding ✓
-
Egress Rate Limit ✓
-
Flow Control ✓
-
Storm Control ✓
-
Multicast & Broadcast Rate Limiting ✓
-
MAC Address Blocking ✓
-
IP-Based ACLs & Network Isolation ✓
-
MAC-Based Port Restriction ✓
-
Port Isolation ✓
-
Port Mirroring ✓
-
Jumbo Frames ✓
-
LLDP-MED ✓
-
Voice VLAN ✓
-
Loop Protection ✓
Hardware
PoE Ports
-
PoE+: 8
-
PoE++: 16
Max. PoE Wattage per Port by PSE
-
PoE: 15.4W
-
PoE+: 32W
-
PoE++: 64W
Max. Power Consumption
-
50W (Excluding PoE Output)
-
450W (Including PoE Output)
Power Method
-
(1) Universal input, 100–240V AC, 50/60 Hz
-
(1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 550W
Supported Voltage Range
100–240V AC
Management Ethernet
AR
Heat Dissipation (Excluding PoE Output)
170.6 BTU/hr
Weight
-
Without mounting brackets: 5.1 kg (11.3 lb)
-
With mounting brackets: 5.2 kg (11.5 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7–47.2″)
LCM Display
1.3″ touchscreen
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™ Support
-
Ethernet ✓
-
SFP+ ✓
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel
Software
Application Requirements
UniFi Network Version 8.0.24 and later
