Description
Overview

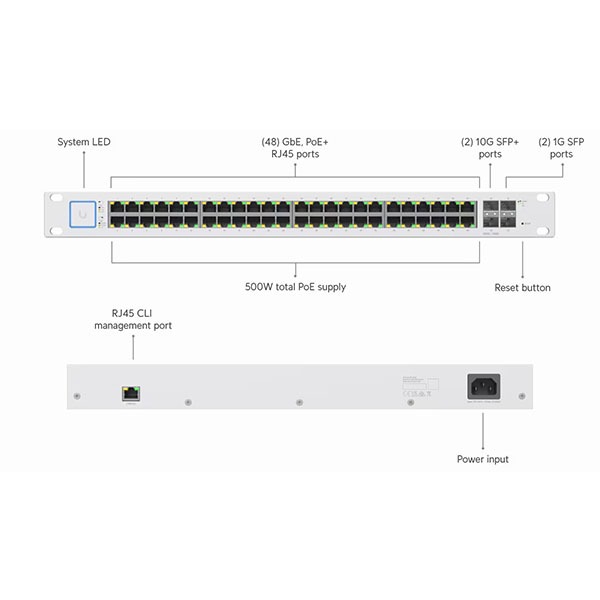

Port Layout
-
1 GbE RJ45: 48 (All PoE+) — (1G/100M/10M)
-
1G SFP: 2
-
10G SFP+: 2
Max. PoE Output
Up to PoE+
Total PoE Availability
500W
Form Factor
Rack mount (1U)
Performance
Access Lists
-
IPv4: 128
-
MAC: 128
Layer 2 Features
-
LACP Port Aggregation ✓
-
STP & RSTP ✓
-
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓
-
IGMP Snooping ✓
-
802.1X Control ✓
-
MAC-Based ACLs & Device Isolation ✓
-
DHCP Snooping & Guarding ✓
-
Egress Rate Limit ✓
-
Flow Control ✓
-
Storm Control ✓
-
Multicast & Broadcast Rate Limiting ✓
-
MAC Address Blocking ✓
-
IP-Based ACLs & Network Isolation ✓
-
MAC-Based Port Restriction ✓
-
Port Isolation ✓
-
Port Mirroring ✓
-
Jumbo Frames ✓
-
LLDP-MED ✓
-
Voice VLAN ✓
-
Loop Protection ✓
Hardware
PoE Ports
-
PoE+: 48
Power Method
Universal input, 100–240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
AC/DC, internal, 500W
Supported Voltage Range
100–240V AC
Management
Ethernet
Mount Material
SGCC steel
Supported Rack Depth
400–1200 mm (15.7–47.2″)
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Software
Application Requirements
UniFi Network Version 6.3.51 and later
