Description
Overview
Dimensions
99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3″)

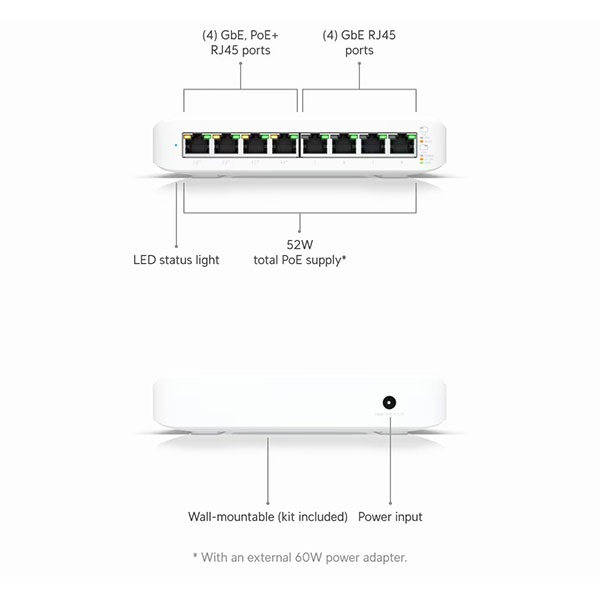

Port Layout
1 GbE RJ45: 8 (4 PoE+) (1G/100M/10M)
Max. PoE Output
Up to PoE+
Total PoE Availability
52W
Form Factor
Compact desktop, wall
Performance
Switching Capacity
16 Gbps
Total Non-Blocking Throughput
8 Gbps
Forwarding Rate
12 Mpps
Supported VLANs
1,000
MAC Address Table Size
8,000
Packet Buffer Size
0.5 MB
Access Lists
IPv4
128
MAC
128
Layer 2 Features
-
LACP Port Aggregation โ
-
STP & RSTP โ
-
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) โ
-
IGMP Snooping โ
-
802.1X Control โ
-
MAC-Based ACLs & Device Isolation โ
-
DHCP Snooping & Guarding โ
-
Egress Rate Limit โ
-
Flow Control โ
-
Storm Control โ
-
Multicast & Broadcast Rate Limiting โ
-
MAC Address Blocking โ
-
IP-Based ACLs & Network Isolation โ
-
MAC-Based Port Restriction โ
-
Port Isolation โ
-
Port Mirroring โ
-
Jumbo Frames โ
-
LLDP-MED โ
-
Voice VLAN โ
-
Loop Protection โ
Hardware
PoE Ports
PoE+: 4
Max. PoE Wattage per Port by PSE
PoE+: 30W
Max. Power Consumption
8W (Excluding PoE Output)
60W (Including PoE Output)
Power Method
AC/DC Adapter (included)
Power Input Method
DC input
Power Supply
AC/DC, external, 60W
Supported Voltage Range
50โ57V DC
Management Ethernet
Yes
Heat Dissipation (Excluding PoE Output)
27.296 BTU/hr
Weight
295 g (10.4 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Ambient Operating Temperature
-15 to 40ยฐ C (5 to 104ยฐ F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
โ
Certifications
CE, FCC, IC, Anatel
Software
Application Requirements
UniFi Network Version 7.2.94 and later
