Description
Overview
Dimensions:
442.4 x 43.7 x 285.6 mm
(17.4 x 1.7 x 11.2″)
UniFi Application Suite
-
Network โ
-
Protect โ
-
Access โ
-
Talk โ
-
Connect โ
Capacity
-
Managed UniFi Devices: 100+
-
Managed Cameras:
-
(24) HD
-
(14) 2K
-
(8) 4K
-
-
Simultaneous Users Connected: 1,000+
WAN Ports
-
Max. WAN Port Count: 8
-
Default WAN Ports:
-
(1) 10G SFP+
-
(1) GbE RJ45
-

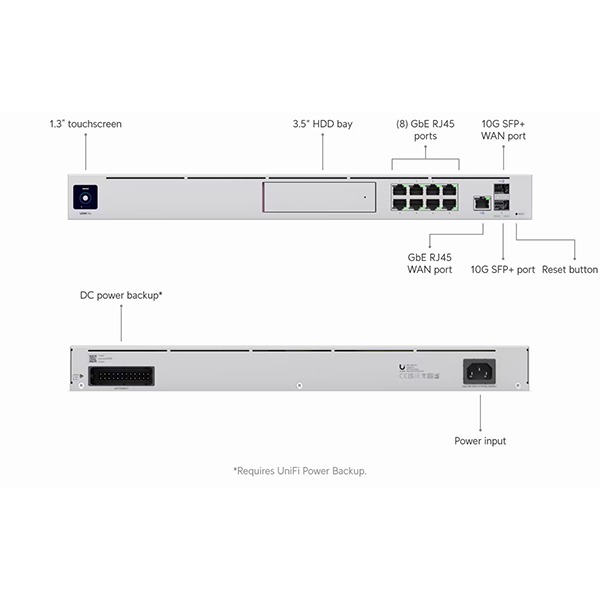

Port Layout
-
1 GbE RJ45: 9 (1G/100M/10M)
-
10G SFP+: 2 (10G/1G)
Performance
-
IDS/IPS Throughput: 3.5 Gbps
-
Form Factor: Rack mount (1U)
-
Redundancy: Shadow Mode (VRRP) Gateway Failover, DC Power Backup
Security Features
-
Stateful Firewall โ
-
Application-Aware Layer 7 Firewall โ
-
DPI & Traffic Identification โ
-
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) โ
-
Content Filtering โ
-
Intrusion Prevention (IPS/IDS) โ
-
Ad Blocking โ
-
IDS/IPS Signatures: 55,000+ (with CyberSecure)
-
VLAN/Subnet-based Traffic Segmentation โ
VPN & SD-WAN
-
License-Free SD-WAN โ
-
Site-to-Site VPN:
-
Site Magic โ
-
IPsec โ
-
OpenVPN โ
-
-
VPN Server:
-
Identity Endpoint One-Click VPN โ
-
Teleport Zero-Configuration VPN โ
-
WireGuard โ
-
OpenVPN โ
-
L2TP โ
-
-
VPN Client:
-
OpenVPN โ
-
WireGuard โ
-
Networking Features
-
Multi-WAN Load Balancing โ
-
Shadow Mode (VRRP) High Availability โ
-
Dynamic Routing: OSPF โ, BGP โ
-
Advanced QoS โ
-
Multicast DNS (mDNS) โ
-
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) โ
-
Integrated RADIUS Server โ
-
RADIUS over TLS (RadSec) โ
-
Additional Internet Failover with UniFi LTE Backup โ
-
Internet Quality and Outage Reporting โ
-
MAC Address Table Size: 4,000
-
Policy-based WAN and VPN Routing โ
-
Customizable DHCP Server โ
-
IPv6 ISP Support โ
-
IGMP Proxy โ
Hardware
-
NVR Storage: (1) 3.5″ NVR HDD bay
-
Max. Power Consumption: 33W
-
Power Method:
-
(1) Universal AC input, 100โ240V AC, 50/60 Hz
-
(1) USP-RPS DC input
-
-
Power Supply: AC/DC, internal, 50W
-
Supported Voltage Range: 100โ240V AC
-
Processor: Quad-core ARMยฎ Cortexยฎ-A57 at 1.7 GHz
-
System Memory: 4 GB
-
On-board Storage: 16 GB
-
Weight: 3.9 kg (8.6 lb)
-
Enclosure Material: Aluminium CNC, SGCC steel
-
Mount Material: SGCC steel
-
LCM Display: 1.3″ touchscreen
Management
-
Ethernet
-
Bluetooth
LED Indicators
-
Ethernet โ
-
SFP+ โ
-
RPS โ
-
PSU โ
-
HDD โ
Buttons
-
(1) Factory-reset
ESD/EMP Protection
-
Air: ยฑ 15kV
-
Contact: ยฑ 8kV
Operating Conditions
-
Ambient Operating Temperature: -10 to 40ยฐ C (14 to 104ยฐ F)
-
Ambient Operating Humidity: 5 to 95% noncondensing
Compliance
-
NDAA Compliant โ
-
Certifications: CE, FCC, IC, Anatel, SRRC
