Description
Overview
Dimensions:
98 x 98 x 30 mm
(3.6 x 3.6 x 1.2″)
Form Factor:
Compact desktop
Coverage Area:
140 mยฒ (1,500 ftยฒ)
UniFi Application Suite
-
Network โ
Capacity
-
Managed UniFi Devices: 4
-
Simultaneous Users Connected: 50+
-
Max. WAN Port Count: 1
-
Default WAN Ports: (1) GbE RJ45

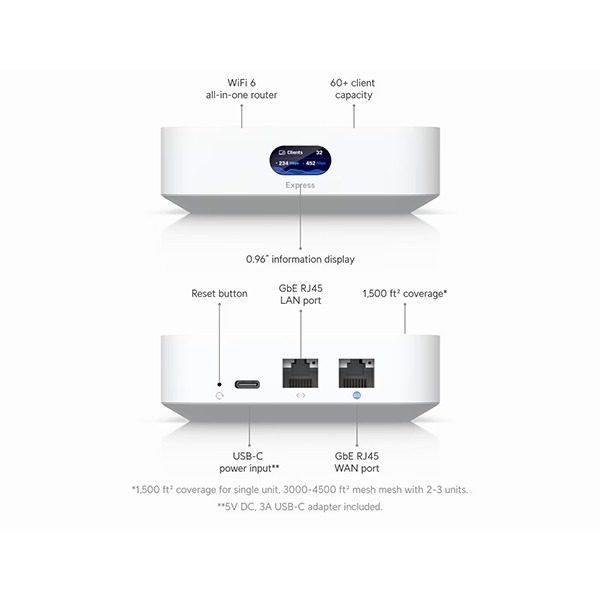

Port Layout
-
1 GbE RJ45: 2 (1G/100M/10M)
Security Features
-
Stateful Firewall โ
-
Application-Aware Layer 7 Firewall โ
-
DPI & Traffic Identification โ
-
Content Filtering โ
-
Ad Blocking โ
VPN & SD-WAN
-
License-Free SD-WAN โ
-
Site-to-Site VPN:
-
Site Magic โ
-
IPsec โ
-
OpenVPN โ
-
-
VPN Server:
-
Teleport Zero-Configuration VPN โ
-
WireGuard โ
-
OpenVPN โ
-
L2TP โ
-
-
VPN Client:
-
OpenVPN โ
-
WireGuard โ
-
Networking
-
Dynamic Routing: OSPF โ
-
Advanced QoS โ
-
Multicast DNS (mDNS) โ
-
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) โ
-
Integrated RADIUS Server โ
-
RADIUS over TLS (RadSec) โ
-
Additional Internet Failover with UniFi LTE Backup โ
-
Internet Quality and Outage Reporting โ
-
Policy-based WAN and VPN Routing โ
-
Customizable DHCP Server โ
-
IPv6 ISP Support โ
-
IGMP Proxy โ
Integrated WiFi
-
WiFi Standard: 802.11a/b/g/n/ac/ax (WiFi 6)
-
Throughput:
-
5 GHz: 2.4 Gbps
-
2.4 GHz: 573.5 Mbps
-
-
MIMO:
-
5 GHz: 2 x 2 (DL/UL MU-MIMO)
-
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
-
-
Antenna Gain:
-
5 GHz: 5.15 dBi
-
2.4 GHz: 4 dBi
-
-
Max. TX Power:
-
5 GHz: 25 dBm
-
2.4 GHz: 22 dBm
-
-
Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
-
Max. BSSIDs:
-
3 per Radio (Gateway Mode)
-
4 per Radio (AP Mode)
-
-
Antennas:
-
(2) Internal 2.4G/5G WiFi dual-band antennas
-
(1) Internal 2.4G single-band Bluetooth antenna
-
-
Supported Data Rates:
-
802.11a: 6โ54 Mbps
-
802.11b: 1โ11 Mbps
-
802.11g: 6โ54 Mbps
-
802.11n: 6.5 Mbps to 300 Mbps (MCS0โMCS15, HT 20/40)
-
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0โMCS9 NSS1/2, VHT 20/40/80/160)
-
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0โMCS11 NSS1/2, HE 20/40/80/160)
-
Hardware
-
Max. Power Consumption: 10W
-
Power Method: USB Type-C (5V DC/3A)
-
Power Supply: USB Type-C (5V DC/3A) (Adapter included)
-
Supported Voltage Range: 100โ240V AC
-
Processor: Dual-core ARMยฎ Cortexยฎ-A53 at 1 GHz
-
System Memory: 1 GB
-
Weight: 302 g (10.7 oz)
-
Enclosure Material: Polycarbonate
-

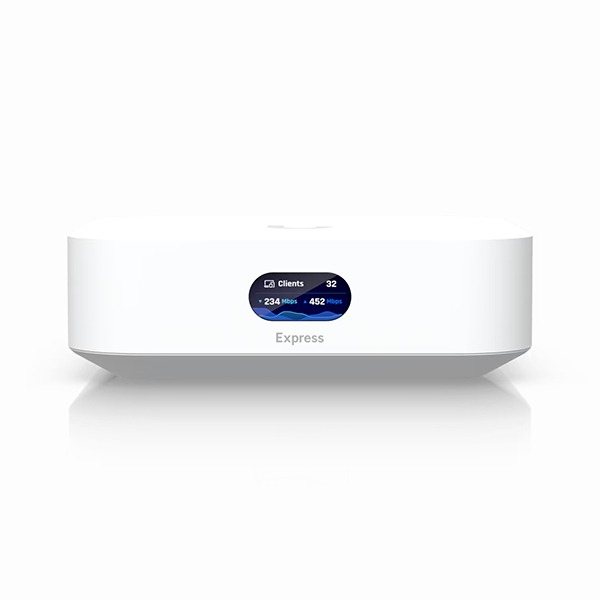

LCM Display: 0.96″ status display
Management
-
Ethernet
-
Bluetooth
-
Button: (1) Factory-reset
Operating Conditions
-
Ambient Operating Temperature: -10 to 45ยฐ C (14 to 113ยฐ F)
-
Ambient Operating Humidity: 5 to 95% noncondensing
Compliance
-
NDAA Compliant โ
-
Certifications: CE, FCC, IC, Anatel
Software
-
VLAN: 802.1Q
-
Guest Traffic Isolation โ
-
Application Requirements: UniFi Network Version 8.0.7 and later
