Description
Overview
Dimensions
442 x 200 x 44 mm
(17.4 x 7.9 x 1.7″)

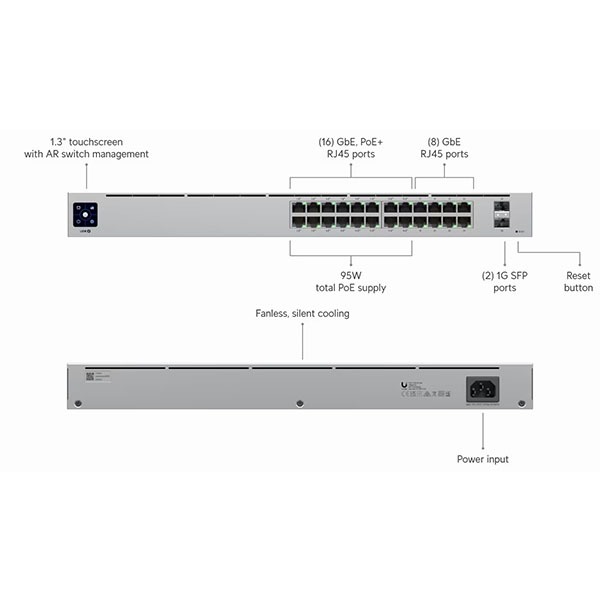

Port Layout
-
1 GbE RJ45: 24 (16 PoE+) (1G/100M/10M)
-
1G SFP: 2
Max. PoE Output
Up to PoE+
Total PoE Availability
95W
Form Factor
Rack mount (1U)
Performance
Switching Capacity
52 Gbps
Total Non-Blocking Throughput
26 Gbps
Forwarding Rate
39 Mpps
Supported VLANs
1,000
MAC Address Table Size
8,000
Packet Buffer Size
0.5 MB
Access Lists
IPv4
128
MAC
128
Layer 2 Features
-
LACP Port Aggregation ✓
-
STP & RSTP ✓
-
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓
-
IGMP Snooping ✓
-
802.1X Control ✓
-
MAC-Based ACLs & Device Isolation ✓
-
DHCP Snooping & Guarding ✓
-
Egress Rate Limit ✓
-
Flow Control ✓
-
Storm Control ✓
-
Multicast & Broadcast Rate Limiting ✓
-
MAC Address Blocking ✓
-
IP-Based ACLs & Network Isolation ✓
-
MAC-Based Port Restriction ✓
-
Port Isolation ✓
-
Port Mirroring ✓
-
Jumbo Frames ✓
-
LLDP-MED ✓
-
Voice VLAN ✓
-
Loop Protection ✓
Hardware
PoE Ports
PoE+: 16
Max. PoE Wattage per Port by PSE
-
PoE: 15.4W
-
PoE+: 32W
Max. Power Consumption
-
25W (Excluding PoE Output)
-
120W (Including PoE Output)
Power Method
Universal input, 100—240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
AC/DC, internal, 120W
Supported Voltage Range
100—240V AC
Management Ethernet
Yes
Heat Dissipation (Excluding PoE Output)
85.3 BTU/hr
Weight
-
Without mounting brackets: 3 kg (6.6 lb)
-
With mounting brackets: 3.1 kg (6.8 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2″)
LCM Display
1.3″ touchscreen
ESD/EMP Protection
Air: ±16kV, Contact: ±12kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel
Software
Application Requirements
UniFi Network Version 7.2.94 and later
