Description
Overview

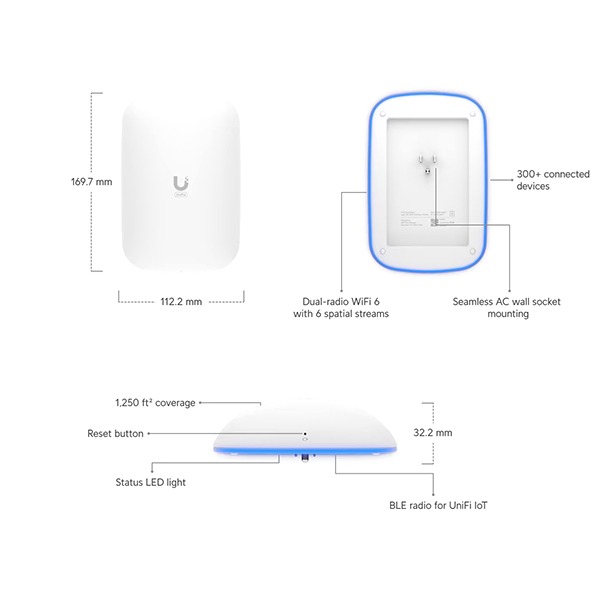

Dimensions
US: 169.7 x 112.2 x 32.2 mm
(6.7 x 4.4 x 1.3″)
EU: 169.7 x 112.2 x 77.6 mm
(6.7 x 4.4 x 3.1″)
WiFi Standard
WiFi 6
Spatial Streams
6
Coverage Area
115 m² (1,250 ft²)
Max. Client Count
300+

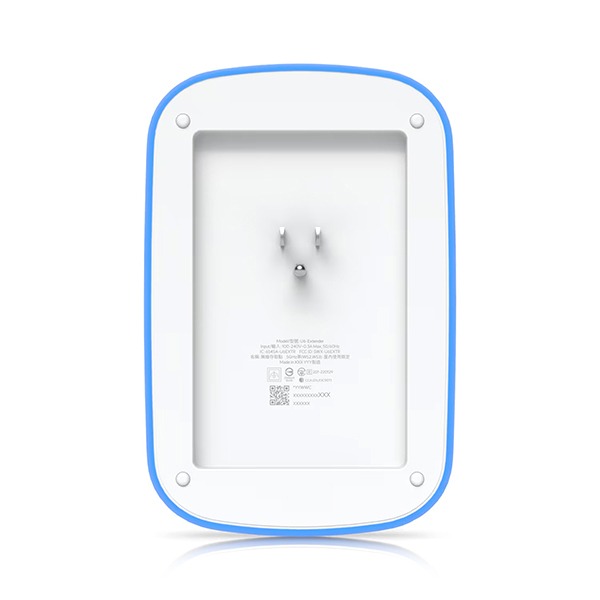

Mounting
Wall
(Wall Power Socket Included)
Power Method
Universal AC input, 100—240V AC, 0.3A Max., 50/60 Hz
Performance
MIMO
5 GHz
4 x 4 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.8 Gbps (BW160)
2.4 GHz
573.5 Mbps (BW40)
Antenna Gain
5 GHz
6 dBi
2.4 GHz
5 dBi
Max. TX Power
5 GHz
26 dBm
2.4 GHz
22 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n
6.5 Mbps to 600 Mbps (MCS0 – MCS31 , HT 20/40)
Features
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓
Hardware
Max. Power Consumption
11W
Supported Voltage Range
110—240V AC
Weight
US: 290 g (10.2 oz)
EU: 340 g (12 oz)
Management
Bluetooth
Enclosure Material
Polycarbonate
LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC
Operating Frequency
US/CA:
2400 – 2472 MHz
U-NII-1: 5150 – 5250 MHz
U-NII-2A: 5250 – 5350 MHz
U-NII-2C: 5470 – 5725 MHz
U-NII-3: 5725 – 5850 MHz
Worldwide:
2400 – 2483.5 MHz
5150 – 5725 MHz
Ambient Operating Temperature
-10 to 50° C (14 to 122° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 6.0.45 and later
