Description
Overview

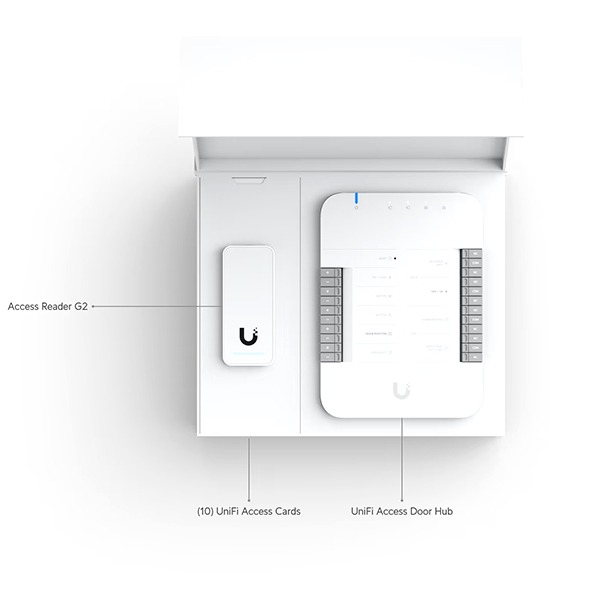

In the Box
(1) Door Hub
(1) G2 Reader
(10) Access Cards
Door Hub
Dimensions
174.9 x 126 x 32.9 mm
(6.9 x 5 x 1.3″)
Supported Doors
1
Input Terminals
(2) Door exit request
(1) Door position
(1) Emergency
Power Method
PoE++
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
NDAA Compliant
✓
UL 294 Level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weight
363 g (12.8 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Mounting
DIN-rail (Included)
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Networking Interface
(5) 10/100/1000 Base-T
PoE Interface
(1) PoE++ input, 50V DC, 1A
(4) PoE outputs, 50V DC, 15.4W per port (Max. 28W aggregated)
Max. Power Consumption
30W (Without PoE output)
50W (With PoE output)
Digital Input
Request to exit, request to enter, remote release, door position sensor
Dry Output Relay
Lock: 30V DC, 1A
Aux: 30V DC, 1A
Powered Output Relay
Lock: 12V DC, 1A
Aux: 12V DC, 0.33A
12V DC, 0.33A
LEDs
B/W Learn More
Button
(1) Factory-reset
Recommend Max. Cable Length
UA-Lock-Electric (400mA)
24 AWG length: 25 m (82 ft)
22 AWG length: 42 m (138 ft)
20 AWG length: 66 m (217 ft)
18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)
24 AWG length: 20 m (66 ft)
22 AWG length: 32 m (105 ft)
20 AWG length: 51 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)
24 AWG length: 12 m (29 ft)
22 AWG length: 20 m (98 ft)
20 AWG length: 30 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1A)
24 AWG length: 9 m (30 ft)
22 AWG length: 15 m (49 ft)
20 AWG length: 24 m (79 ft)
18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: 1
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-Hub-Door002, V01

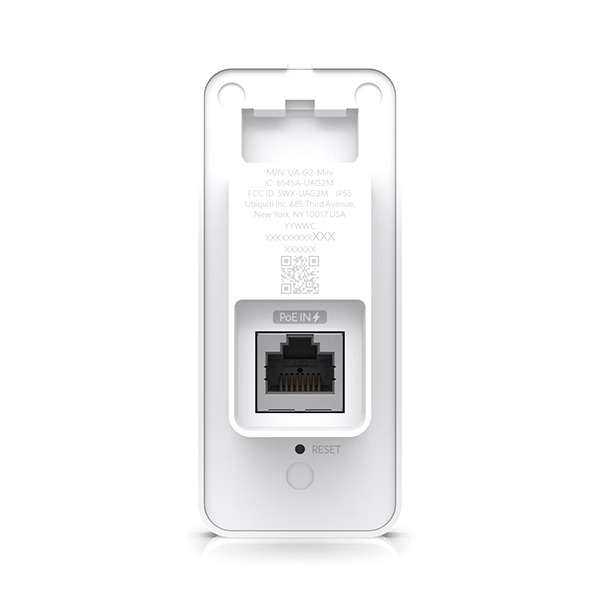

G2 Reader

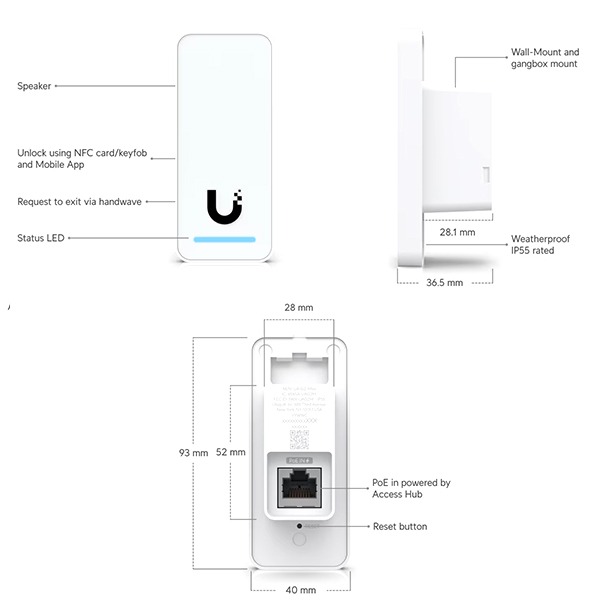

Dimensions
93 x 40 x 36.5 mm
(3.7 x 1.6 x 1.4″)
NFC Card & Keyfob Access
✓
Mobile Unlock
✓
Handwave Request to Exit
✓
Weatherproofing
IP55
NDAA Compliant
✓
UL 294 Level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weight
82 g (2.9 oz)
Enclosure Material
Polycarbonate, glass
Mount Material
Aluminum alloy
Mounting
In-wall, gang box (Included)
Junction box (Optional)
Indoor and Outdoor Use
✓
Ambient Operating Temperature
-30 to 45° C (-22 to 113° F)
Ambient Operating Humidity
5 to 90% noncondensing
Networking Interface
(1) 10/100 MbE RJ45 port
Connectivity
BLE 4.1
NFC
Power Method
PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
5W
Supported Voltage Range
48V DC
ESD/EMP Protection
Air: ±15kV, contact: ±8kV
Sensors
Proximity sensor
Speaker
(1) Yes, 0.7W
LEDs
R/G/B/W Learn More
Button
(1) Factory-reset
NFC Read Range
< 30 mm (1.18”)
NFC Frequency
13.56 MHz
NFC Technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G2/UA-G2-Black, V02
Access Card
Dimensions
85.6 x 53.98 x 0.84 mm
(3.37 x 2.13 x 0.03″)
Weight
5 g (0.18 oz)
Format
ISO 7810 ID-1
NFC Frequency
13.56 MHz
NFC Technology
ISO/IEC 14443 Type A
MIFARE DESFire
UniFi Access Proprietary Security Protocol
NDAA Compliant
✓
