Description
Overview

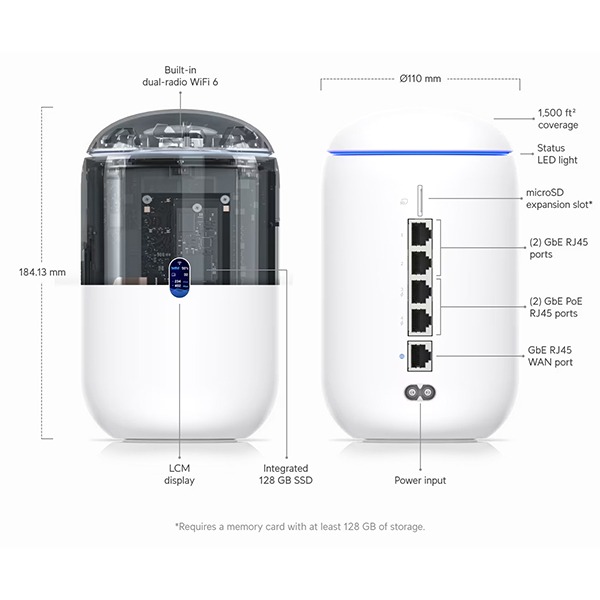

Dimensions:
Ø110 x 184.1 mm
(Ø4.3 x 7.3″)
Form Factor:
Compact desktop
Coverage Area:
140 m² (1,500 ft²)
UniFi Application Suite
-
Network ✓
-
Protect ✓
-
Access ✓
-
Talk ✓
-
Connect ✓
Capacity
-
Managed UniFi Devices: 20+
-
Managed Cameras:
-
(5) HD
-
(2) 2K
-
(1) 4K
-
-
Simultaneous Users Connected: 150+
-
Max. WAN Port Count: 1
-
Default WAN Ports: (1) GbE RJ45
Port Layout
-
1 GbE RJ45: 5 (2 PoE) (1G/100M/10M)
Performance
-
IDS/IPS Throughput: 1 Gbps
Security Features
-
Stateful Firewall ✓
-
Application-Aware Layer 7 Firewall ✓
-
DPI & Traffic Identification ✓
-
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓
-
Content Filtering ✓
-
Intrusion Prevention (IPS/IDS) ✓
-
Ad Blocking ✓
-
IDS/IPS Signatures: 20,000+ (with CyberSecure)
-
VLAN/Subnet-based Traffic Segmentation ✓
VPN & SD-WAN
-
License-Free SD-WAN ✓
-
Site-to-Site VPN:
-
Site Magic ✓
-
IPsec ✓
-
OpenVPN ✓
-
-
VPN Server:
-
Identity Endpoint One-Click VPN ✓
-
Teleport Zero-Configuration VPN ✓
-
WireGuard ✓
-
OpenVPN ✓
-
L2TP ✓
-
-
VPN Client:
-
OpenVPN ✓
-
WireGuard ✓
-
Networking
-
Dynamic Routing: OSPF ✓
-
Advanced QoS ✓
-
Multicast DNS (mDNS) ✓
-
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓
-
Integrated RADIUS Server ✓
-
RADIUS over TLS (RadSec) ✓
-
Additional Internet Failover with UniFi LTE Backup ✓
-
Internet Quality and Outage Reporting ✓
-
MAC Address Table Size: 1,000
-
Policy-based WAN and VPN Routing ✓
-
Customizable DHCP Server ✓
-
IPv6 ISP Support ✓
-
IGMP Proxy ✓
Integrated WiFi
-
WiFi Standard: 802.11a/b/g/n/ac/ax (WiFi 6)
-
Throughput:
-
5 GHz: 2.4 Gbps
-
2.4 GHz: 600 Mbps
-
-
MIMO:
-
5 GHz: 4 x 4 (DL/UL MU-MIMO)
-
2.4 GHz: 4 x 4 (DL/UL MU-MIMO)
-
-
Antenna Gain:
-
5 GHz: 4.3 dBi
-
2.4 GHz: 3.4 dBi
-
-
Max. TX Power:
-
5 GHz: 26 dBm
-
2.4 GHz: 26 dBm
-
-
Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
-
Max. BSSIDs: 8 per Radio
-
Supported Data Rates:
-
802.11a: 6–54 Mbps
-
802.11b: 1–11 Mbps
-
802.11g: 6–54 Mbps
-
802.11n: 6.5 Mbps to 600 Mbps (MCS0–MCS31, HT 20/40)
-
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0–MCS9 NSS1–4, VHT 20/40/80/160)
-
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0–MCS11 NSS1–4, HE 20/40/80/160)
-
Hardware
-
NVR Storage: Built-in 128 GB SSD for detection recordings
-
Expansion Slot: MicroSD Card
-
PoE Budget: 40W
-
Max. PoE Wattage per Port by PSE: 15.4W
-
Voltage Range PoE Mode: 44–57V
-
Max. Power Consumption: 19.37W (Excluding PoE Output)
-
Power Method: Universal AC input, 100—240VAC, 1.1A Max, 50/60 Hz
-
Power Supply: AC/DC, Internal, 50W
-
Supported Voltage Range: 100—240V AC
-
Processor: Dual-core Arm® Cortex® A53 at 1.35 GHz
-
Weight: 1.2 kg (2.5 lb)
-
Enclosure Material: Polycarbonate
-
LCM Display: 0.96″ status display
Management
-
Ethernet
-
Bluetooth
-
Button: (1) Factory-reset
Operating Conditions
-
Ambient Operating Temperature: -10 to 45° C (14 to 113° F)
-
Ambient Operating Humidity: 5 to 95% noncondensing
Compliance
-
NDAA Compliant ✓
-
Certifications: CE, FCC, IC
Software Features
-
VLAN: 802.1Q
-
Guest Traffic Isolation ✓
